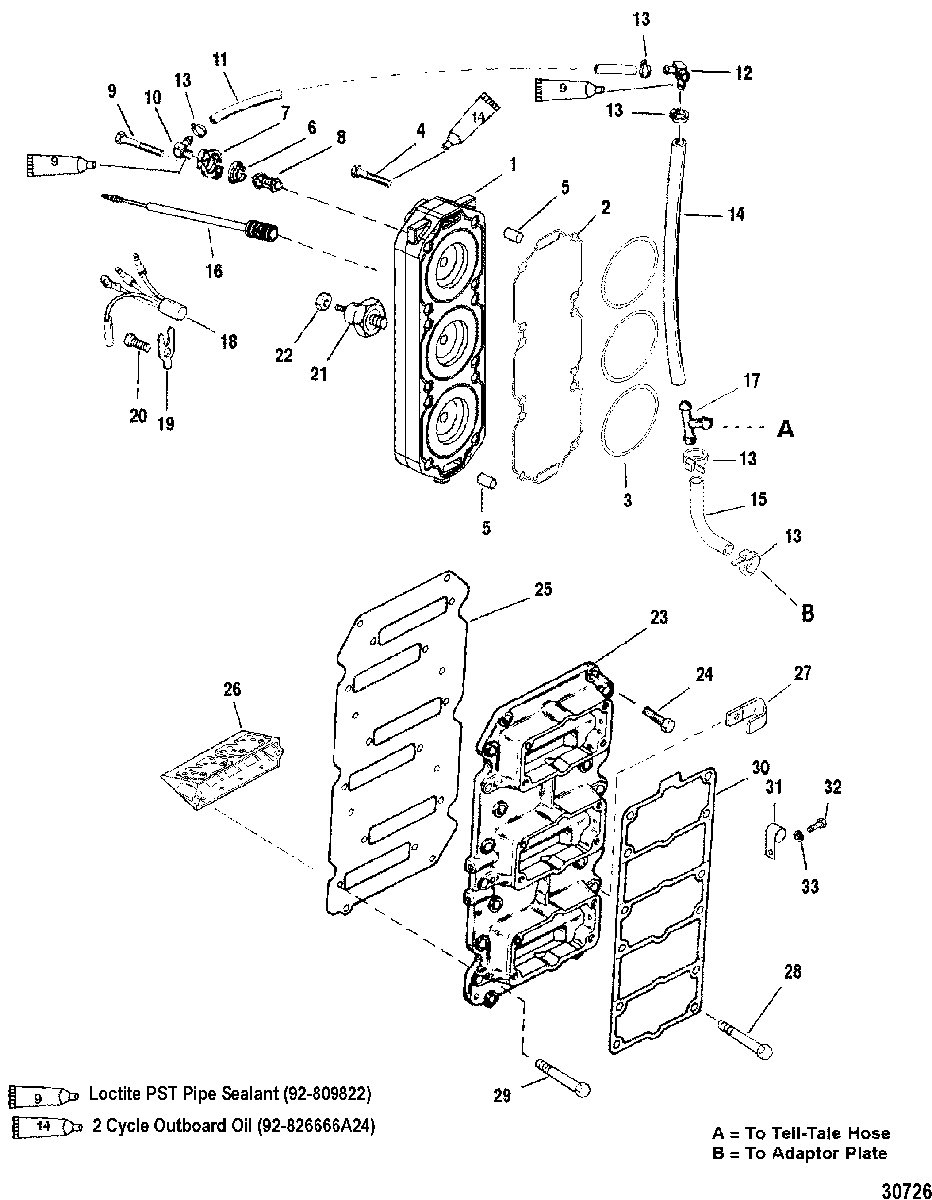

REED BLOCK AND CYLINDER HEAD для Mercury - V-175 (EFI) 0G960500 THRU 0T408999
-
№АртикулНазвание
-
1858281A9 CYLINDER HEAD
(150)CYLINDER HEAD
(150) -
1858281A10 CYLINDER HEAD
(175/200)CYLINDER HEAD
(175/200) -
28584521 SEALSEAL
-
38597721 SEALSEAL
-
410-832971 SCREW, (.375-16 x 3.00)SCREW, (.375-16 x 3.00)
-
410-8274261 SCREWSCREW
-
517-63779 PIN, Dowel (.250 x .625)PIN, Dowel (.250 x .625)
-
627-62386001 GASKETGASKET
-
790390A1 COVER KITCOVER KIT
-
875692 THERMOSTATTHERMOSTAT
-
910-40011149 SCREW, (M8 x 25) Stainless SteelSCREW, (M8 x 25) Stainless Steel
-
1022-687271 FITTING, (.250-18) 90 Degree - BrassFITTING, (.250-18) 90 Degree - Brass
-
1132-77653101 HOSE, (48.00 Inches Bulk) (Cut to 12-3/4 IN.)HOSE, (48.00 Inches Bulk) (Cut to 12-3/4 IN.)
-
1222-68728 FITTINGFITTING
-
1354-816311T TIE STRAP, (8.00 Inches)TIE STRAP, (8.00 Inches)
-
1432-77653101 HOSE, (48.00 Inches Bulk) (Cut to 13-1/2 IN.)HOSE, (48.00 Inches Bulk) (Cut to 13-1/2 IN.)
-
1532-77653101 HOSE, (48.00 Inches Bulk) (Cut to 4-1/2 IN.)HOSE, (48.00 Inches Bulk) (Cut to 4-1/2 IN.)
-
16974651 SENDER (STBD.)SENDER (STBD.)
-
1722-815914 T-FITTINGT-FITTING
-
1813536A14 SENSOR ASSEMBLY, Temperature (PORT)SENSOR ASSEMBLY, Temperature (PORT)
-
19137151 RETAINERRETAINER
-
2010-81893414 SCREW, (M8 x 14)SCREW, (M8 x 14)
-
21826858 SENSOR, Knock (200)SENSOR, Knock (200)
-
2211-45076 NUT, (#10-32) BrassNUT, (#10-32) Brass
-
2317735A2 ADAPTOR PLATE ASSEMBLYADAPTOR PLATE ASSEMBLY
-
2410-28668 SCREW, (.250-20 x .875) Stainless SteelSCREW, (.250-20 x .875) Stainless Steel
-
2527-146972 GASKETGASKET
-
26855952T3 REED BLOCK ASSEMBLYREED BLOCK ASSEMBLY
-
2754-55098 J CLIPJ CLIP
-
2810-55715 SCREW, (.250-20 x .880)SCREW, (.250-20 x .880)
-
2910-90197 SCREW, (.250-20 x 1.125)SCREW, (.250-20 x 1.125)
-
3027-167371 GASKETGASKET
-
3154-65292 J CLIPJ CLIP
-
3210-878608 SCREW, (#10-16 x .500)SCREW, (#10-16 x .500)
-
338M0084613 C WASHERC WASHER
-
-27-815791A00 GASKET SET, EngineGASKET SET, Engine
-
-823434R00 POWERHEAD ASSEMBLY
(150)POWERHEAD ASSEMBLY
(150) -
-812817T00 POWERHEAD ASSEMBLY
(175)POWERHEAD ASSEMBLY
(175) -
-813043R00 POWERHEAD ASSEMBLY
(200)POWERHEAD ASSEMBLY
(200)
