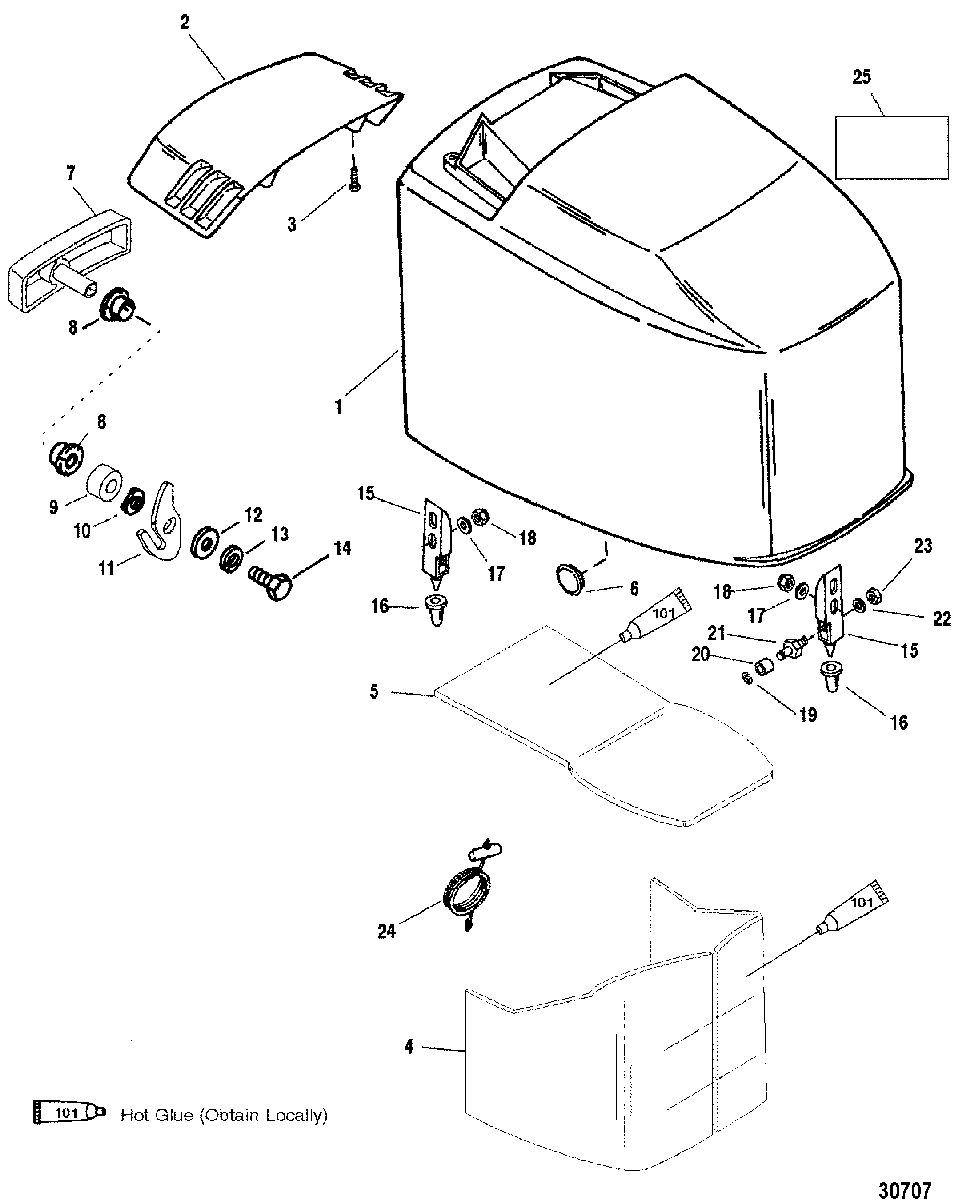

TOP COWL для Mercury - V-175 (EFI) 0G960500 THRU 0T408999
-
№АртикулНазвание
-
1100-8M0107145 TOP COWL ASSEMBLY, BlackTOP COWL ASSEMBLY, Black
-
14021-827328T8 TOP COWL ASSEMBLY, SilverTOP COWL ASSEMBLY, Silver
-
2821256T03 INLET, Air - BlackINLET, Air - Black
-
2821256T2 INLET, Air - SilverINLET, Air - Silver
-
310-82130016 SCREW, (M6 x 16)SCREW, (M6 x 16)
-
4828344A02 SOUND BLANKET KITSOUND BLANKET KIT
-
5NSS NOT SOLD SEPARATE, Sound Blanket (TOP)NOT SOLD SEPARATE, Sound Blanket (TOP)
-
619-823865 CAP PLUGCAP PLUG
-
7831207A16 HANDLE ASSEMBLY, BlackHANDLE ASSEMBLY, Black
-
7831207A16 HANDLE ASSEMBLY, SilverHANDLE ASSEMBLY, Silver
-
823-812707 BUSHINGBUSHING
-
923-831214 SPACERSPACER
-
1013-12134 WASHER, WaveWASHER, Wave
-
118M0001081 CAM, Latch ShaftCAM, Latch Shaft
-
1212-4002316 WASHERWASHER
-
1313-26992 LOCKWASHER, (.250) Stainless SteelLOCKWASHER, (.250) Stainless Steel
-
1410-1993716 SCREW, (M6 x 16)SCREW, (M6 x 16)
-
158M0036792 BRACKET, FrontBRACKET, Front
-
16815477 BUMPER, LatchBUMPER, Latch
-
1712-29245 WASHER, (.281 x .500 x .060) Stainless SteelWASHER, (.281 x .500 x .060) Stainless Steel
-
1811-401366 NUT, (M6) Stainless SteelNUT, (M6) Stainless Steel
-
1953-8237951 RING, RetainingRING, Retaining
-
20815263 ROLLERROLLER
-
218155381 PIN, RollPIN, Roll
-
2212-29245 WASHER, (.281 x .500 x .060) Stainless SteelWASHER, (.281 x .500 x .060) Stainless Steel
-
2311-401366 NUT, (M6) Stainless SteelNUT, (M6) Stainless Steel
-
2447341A11 ROPE AND HANDLE KIT, Manual StartingROPE AND HANDLE KIT, Manual Starting
-
25NSS NOT SOLD SEPARATE, DECAL, Starting ProcedureNOT SOLD SEPARATE, DECAL, Starting Procedure
