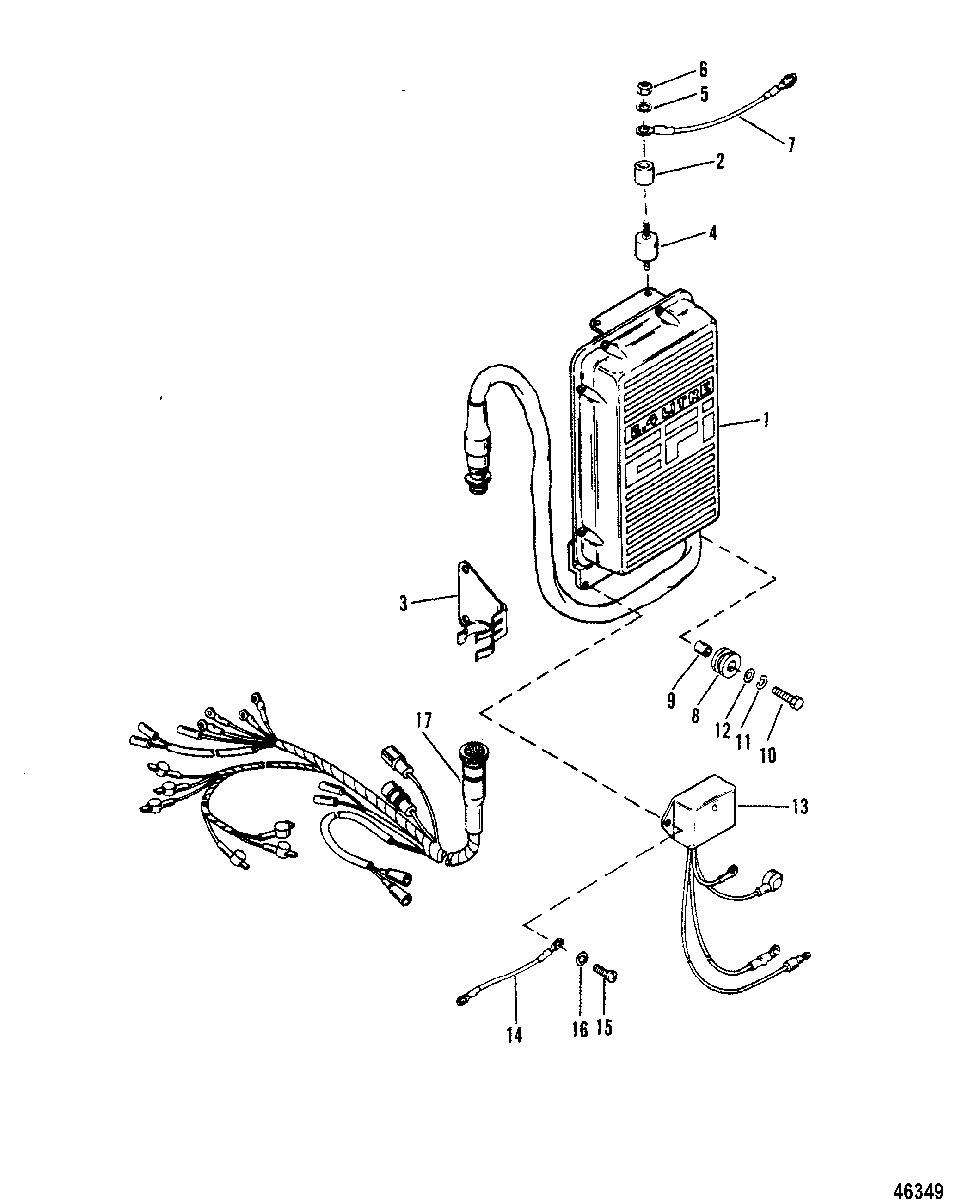

E.C.U. ASSEMBLY для Mercury - V-200 (EFI) 0C100861 THRU 0C999999
-
№АртикулНазвание
-
114632A2 ECU, Engine Control UnitECU, Engine Control Unit
-
223-34948 SPACER, COWL MOUNTING (UPPER)SPACER, COWL MOUNTING (UPPER)
-
354-146951 CLIPCLIP
-
490435 MOUNT, COWL MOUNTING BRACKETMOUNT, COWL MOUNTING BRACKET
-
512-21249 WASHER, MOUNT ATTACHINGWASHER, MOUNT ATTACHING
-
611-8267089 NUT, (.250-28), MOUNT ATTACHINGNUT, (.250-28), MOUNT ATTACHING
-
784-88807A19 CABLE ASSEMBLYCABLE ASSEMBLY
-
814637 GROMMETGROMMET
-
923-14636 BUSHINGBUSHING
-
1010-28667 SCREW, (.250-20 x 1.00) Stainless SteelSCREW, (.250-20 x 1.00) Stainless Steel
-
1113-26992 LOCKWASHER, (.250) Stainless SteelLOCKWASHER, (.250) Stainless Steel
-
1212-65567 WASHER, (.265 x .750 x .048) Stainless SteelWASHER, (.265 x .750 x .048) Stainless Steel
-
1313202A2 MODULE ASSEMBLY, Water SensorMODULE ASSEMBLY, Water Sensor
-
1484-88807A18 CABLE ASSEMBLY (BLACK)CABLE ASSEMBLY (BLACK)
-
1510-37571 SCREW, (.190-32 x .500), WATER SENSOR MODULESCREW, (.190-32 x .500), WATER SENSOR MODULE
-
1612-89302 WASHER, (.203 x .406 x .040), WATER SENSOR MODULE SCREWWASHER, (.203 x .406 x .040), WATER SENSOR MODULE SCREW
-
1784-98866A14 HARNESS ASSEMBLY, E.C.U. AND INJECTORSHARNESS ASSEMBLY, E.C.U. AND INJECTORS
