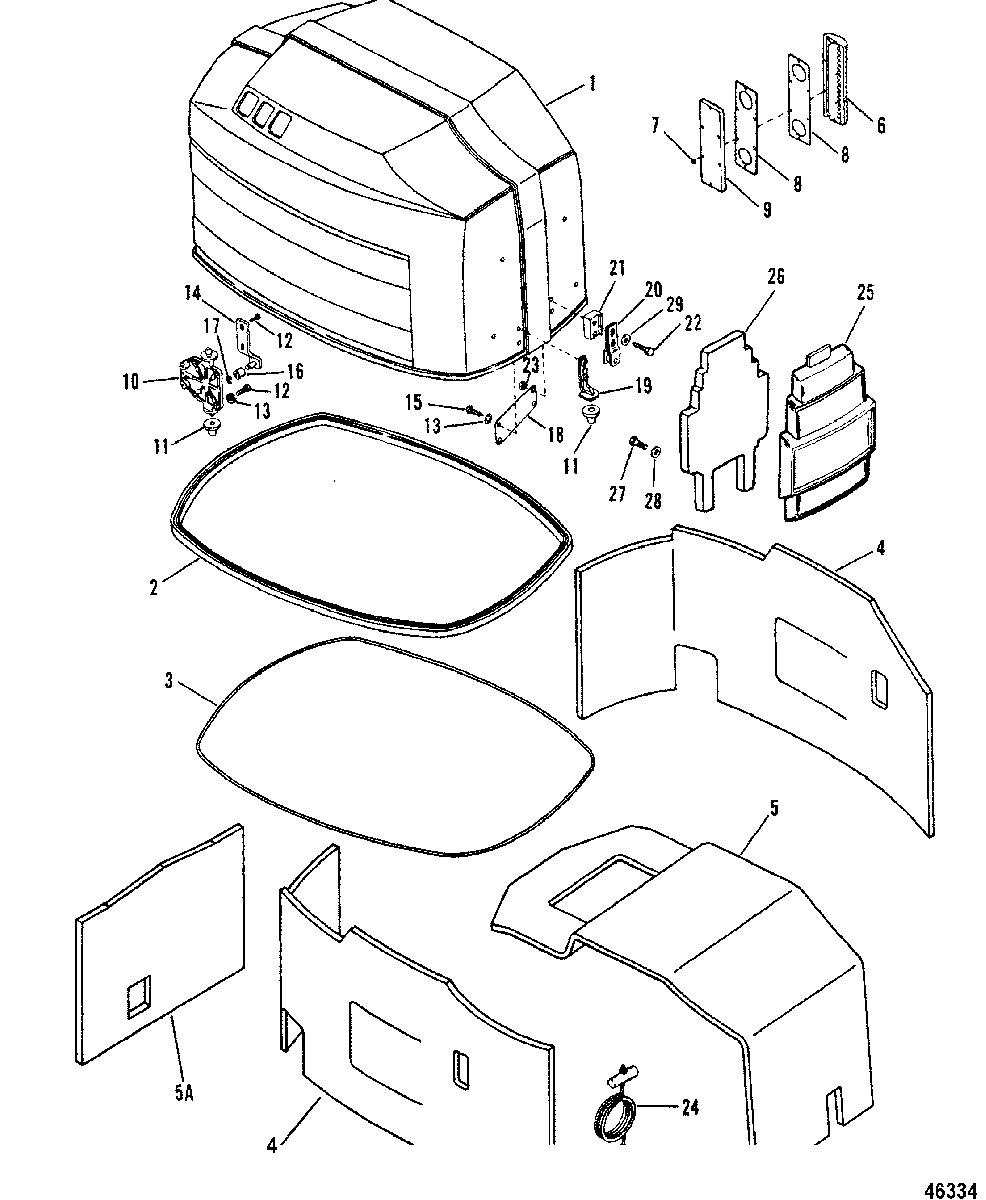

TOP COWL AND FRONT SHIELD для Mercury - V-200 (EFI) 0C100861 THRU 0C999999
-
№АртикулНазвание
-
-38-15132 EMBLEM (3")EMBLEM (3")
-
-38-151321 EMBLEM (6")EMBLEM (6")
-
12196-9742T92 TOP COWL ASSEMBLYTOP COWL ASSEMBLY
-
12196-9742T90 TOP COWL ASSEMBLY (ANNIVERSARY MODEL)TOP COWL ASSEMBLY (ANNIVERSARY MODEL)
-
2812784 SEALSEAL
-
3815478 SEALSEAL
-
4815225 SOUND BLANKET (SIDE)SOUND BLANKET (SIDE)
-
5815226 SOUND BLANKET (TOP)SOUND BLANKET (TOP)
-
5A815227 SOUND BLANKET (FRONT)SOUND BLANKET (FRONT)
-
617196A1 SHIELD, AIR INLET (ANNIVERSARY MODEL)SHIELD, AIR INLET (ANNIVERSARY MODEL)
-
711-11316 SPEED NUT (ANNIVERSARY MODEL)SPEED NUT (ANNIVERSARY MODEL)
-
817238 SEAL, AIR INLET (ANNIVERSARY MODEL)SEAL, AIR INLET (ANNIVERSARY MODEL)
-
917194 SHIELD, AIR INLET (PORT) (ANNIVERSARY MODEL)SHIELD, AIR INLET (PORT) (ANNIVERSARY MODEL)
-
917195 SHIELD, AIR INLET (STARBOARD) (ANNIVERSARY MODEL)SHIELD, AIR INLET (STARBOARD) (ANNIVERSARY MODEL)
-
10184741 BRACKET, REARBRACKET, REAR
-
1125-18506001 GROMMETGROMMET
-
1210-28636 SCREW, (.250-20 x .750), REAR BRACKETSCREW, (.250-20 x .750), REAR BRACKET
-
1313-26992 LOCKWASHER, (.250) Stainless Steel, REAR BRACKET SCREWLOCKWASHER, (.250) Stainless Steel, REAR BRACKET SCREW
-
14813096A2 HOOKHOOK
-
1510-73286 SCREW, (.250-20 x .500) Stainless SteelSCREW, (.250-20 x .500) Stainless Steel
-
16815263 ROLLERROLLER
-
1753-13194 RING, RetainingRING, Retaining
-
1812-56720 PLATEPLATE
-
19187021 LOCATORLOCATOR
-
20893763 BRACKET ASSEMBLY, Latch RollerBRACKET ASSEMBLY, Latch Roller
-
21813076A2 SPACERSPACER
-
2210-31984 SCREW, (.312-18 x 1.375)SCREW, (.312-18 x 1.375)
-
2311-815848 NUT, (.312)NUT, (.312)
-
2447341A11 ROPE AND HANDLE KIT, Manual/Emergency Start (FOR MANUAL STARTING)ROPE AND HANDLE KIT, Manual/Emergency Start (FOR MANUAL STARTING)
-
2518755A1 FRONT SHIELD ASSEMBLYFRONT SHIELD ASSEMBLY
-
26813562 SEALSEAL
-
2710-48409 SCREW, (#10-16 x .625) Stainless SteelSCREW, (#10-16 x .625) Stainless Steel
-
2812-56681 WASHER, (.203 x .500 x .032)WASHER, (.203 x .500 x .032)
-
2912-8M0042642 WASHER, (.323 x .563 x .063) Stainless SteelWASHER, (.323 x .563 x .063) Stainless Steel
-
-813096A1 REAR LATCH KIT
ORDER WHEN REPLACING NON-ROLLER COMPONENTS. (A PRODUCT IMPROVEMENT.)REAR LATCH KIT
ORDER WHEN REPLACING NON-ROLLER COMPONENTS. (A PRODUCT IMPROVEMENT.)
