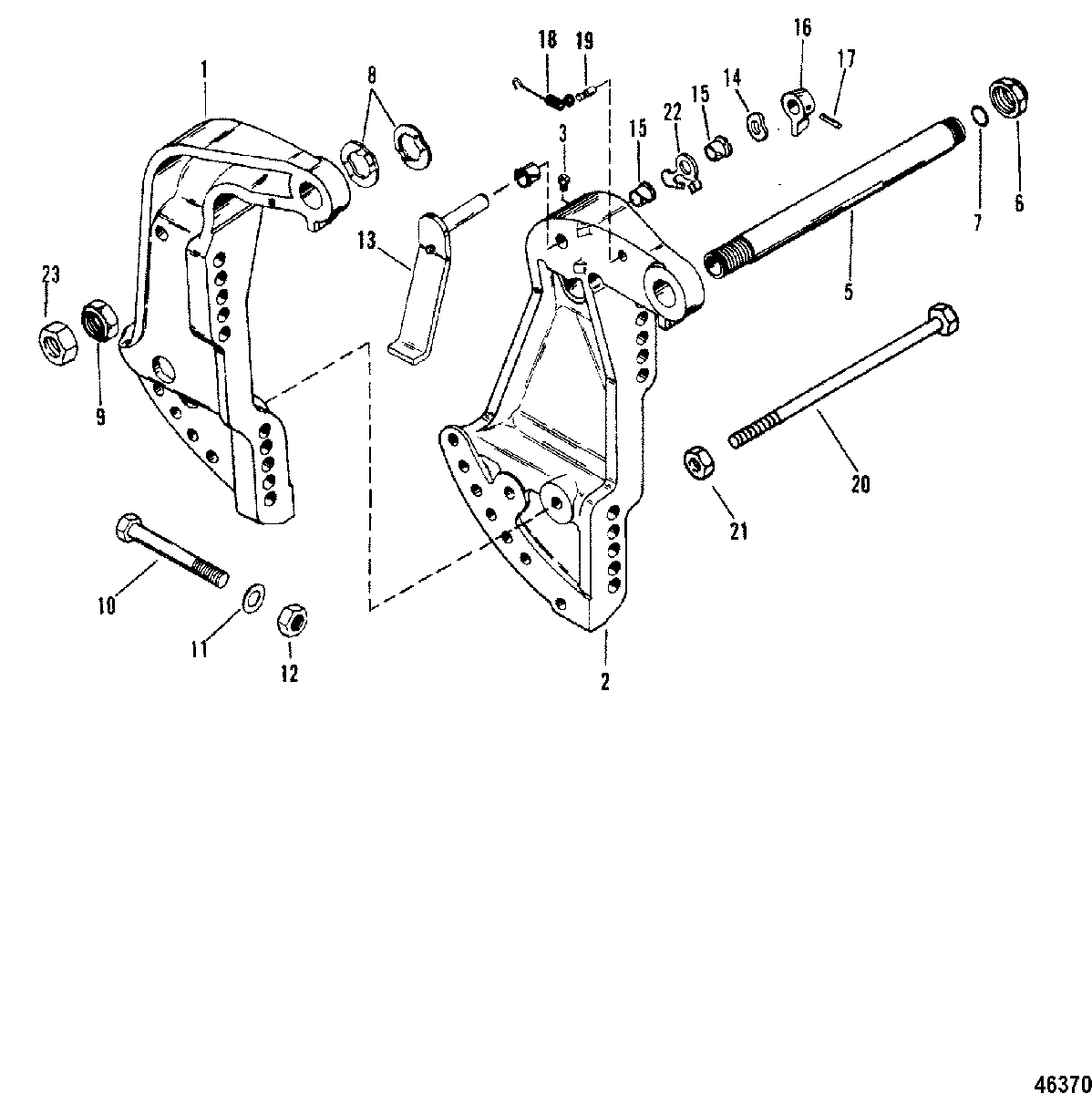

TRANSOM BRACKETS для Mercury - V-200 (EFI) 0C100861 THRU 0C999999

№

Артикул

Название
1

3401-8718F7 BRACKET ASSEMBLY, Transom (STARBOARD)

BRACKET ASSEMBLY, Transom (STARBOARD)

38 310 ₽
2

3400-8716A8 BRACKET ASSEMBLY, Transom (PORT)

BRACKET ASSEMBLY, Transom (PORT)

38 310 ₽
3

22-98727 FITTING, Grease, PORT TRANSOM BRACKET

FITTING, Grease, PORT TRANSOM BRACKET

400 ₽
5

826125A1 TILT TUBE

TILT TUBE

26 370 ₽
6

11-82671327 NUT, TILT TUBE (1"-14)

NUT, TILT TUBE (1"-14)

730 ₽
7

25-45711 O-RING, (.612 x .103), TILT TUBE

O-RING, (.612 x .103), TILT TUBE

150 ₽
8

13-88750 WASHER, TILT TUBE

WASHER, TILT TUBE

450 ₽
9

11-858869 NUT, (.875-14), TILT TUBE (7/9-14)

NUT, (.875-14), TILT TUBE (7/9-14)

330 ₽
10

10-677551 SCREW, (.500-20 x 4.500), TRANSOM BRACKET TO TRANSOM

SCREW, (.500-20 x 4.500), TRANSOM BRACKET TO TRANSOM

1 130 ₽
11

12-28421 WASHER, (1.5 x 3.05 x 0.13) Stainless Steel, TRANSOM BRACKET BOLT

WASHER, (1.5 x 3.05 x 0.13) Stainless Steel, TRANSOM BRACKET BOLT

260 ₽
12

11-91962 NUT, (.500-20), TRANSOM BRACKET BOLT

NUT, (.500-20), TRANSOM BRACKET BOLT

340 ₽
13

8M0115104 LEVER ASSEMBLY, TILT LOCK

LEVER ASSEMBLY, TILT LOCK

11 640 ₽
14

13-99611 WAVE WASHER, TILT LEVER

WAVE WASHER, TILT LEVER

140 ₽
15

23-65830 NYLINER, TILT LEVER

NYLINER, TILT LEVER

320 ₽
16

99633 KNOB, TILT LOCK LEVER

KNOB, TILT LOCK LEVER

190 ₽
17

17-99615 PIN, Groove

PIN, Groove

320 ₽
18

24-99622 SPRING

SPRING

550 ₽
19

17-99604 PIN, Groove

PIN, Groove

340 ₽
20

10-96930A1 BOLT ASSEMBLY, TILT LOCK

BOLT ASSEMBLY, TILT LOCK

2 940 ₽
21

11-23161 NUT, (.375-24), BOLT

NUT, (.375-24), BOLT

150 ₽
22

814207 STOP, TILT LEVER

STOP, TILT LEVER

0 ₽
23

11-8M0041651 NUT, (.875-14)

NUT, (.875-14)

960 ₽
-

27-14697A87 GASKET SET

GASKET SET

16 310 ₽
