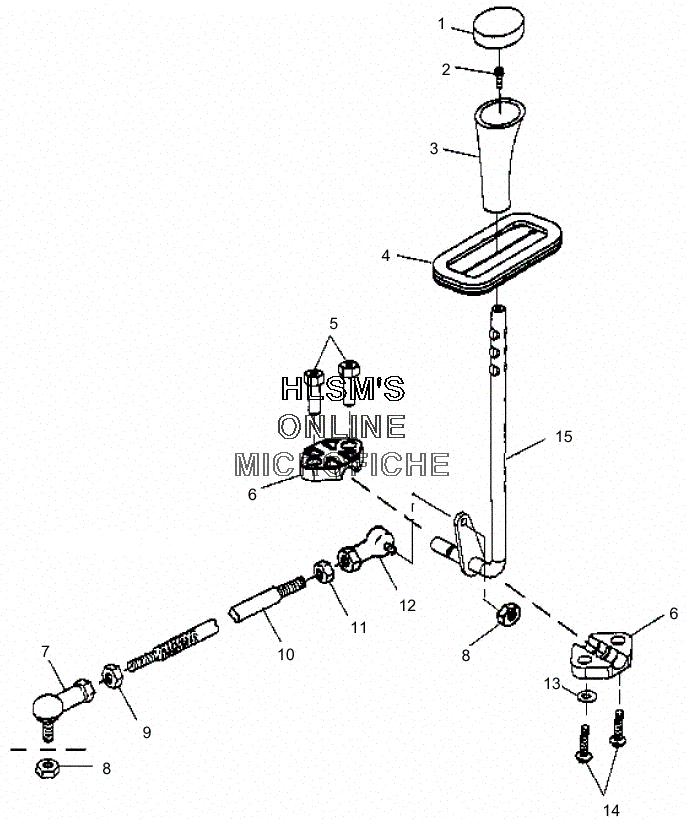

GEAR SELECTOR для Polaris TRAIL BOSS (A00AA32AB) (WHITE) - 2000 года выпуска
-
№АртикулНазвание
-
15411006 KNOB ASSY., HI/REV.KNOB ASSY., HI/REV.
-
27512024 SCREWSCREW
-
35411007 KNOB ASSY., HI/REV.KNOB ASSY., HI/REV.
-
45411008 GROMMET, HR SHIFTERGROMMET, HR SHIFTER
-
55131976 SPACER, HEX SHIFTER HI/REVSPACER, HEX SHIFTER HI/REV
-
65433103 MOUNT, GEAR SELECTOR HI/REVMOUNT, GEAR SELECTOR HI/REV
-
77061014 ROD END (RIGHT/6MM)ROD END (RIGHT/6MM)
-
87546707 NUT, METRICNUT, METRIC
-
97546701 NUTNUT
-
105132143 ROD, SHIFT LINKAGEROD, SHIFT LINKAGE
-
117546702 NUTNUT
-
127061013 ROD END (LEFT/6MM)ROD END (LEFT/6MM)
-
137555859 WASHER, FLATWASHER, FLAT
-
147512277 BOLTBOLT
-
151012998-067 GEAR SELECTOR (BLACK)GEAR SELECTOR (BLACK)
