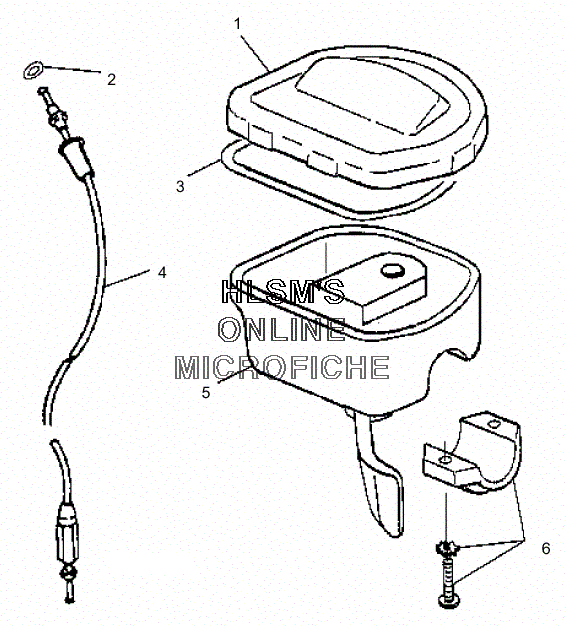

HANDLEBAR - THROTTLE ASSY. W/ CABLE для Polaris TRAIL BOSS (A00AA32AB) (WHITE) - 2000 года выпуска
-
№АртикулНазвание
-
15433806 COVER, THROTTLE CONTROLCOVER, THROTTLE CONTROL
-
25410193 O-RINGO-RING
-
35411439 O-RINGO-RING
-
47080857 CABLE, THROTTLE SNAP-IN (1000MM)CABLE, THROTTLE SNAP-IN (1000MM)
-
52010178 THROTTLE CONTROL (2X4) (INCL.1,3,6)THROTTLE CONTROL (2X4) (INCL.1,3,6)
-
62010191 THROTTLE CLAMP ASSY.THROTTLE CLAMP ASSY.
