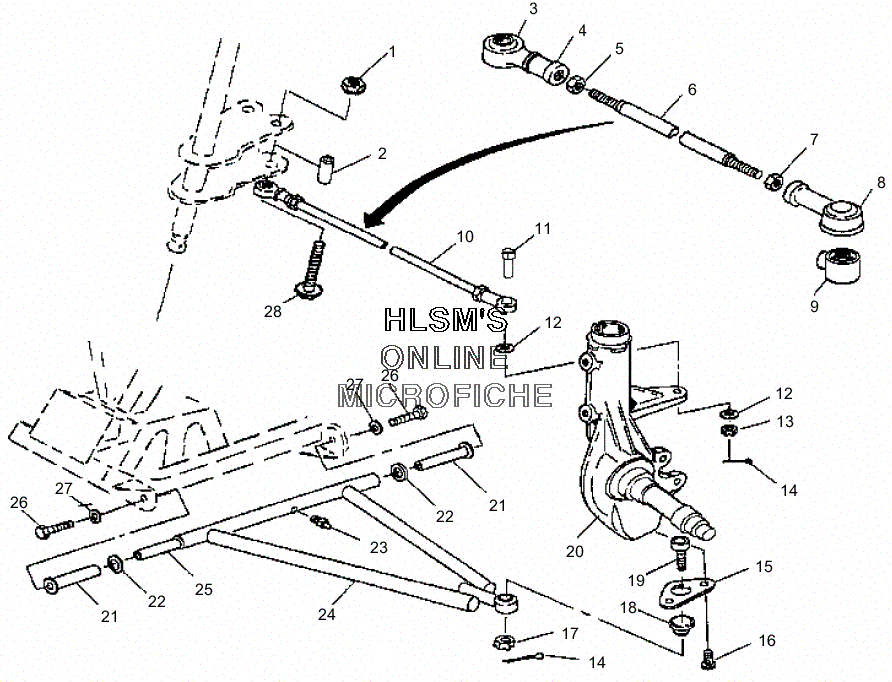

SUSPENSION - FRONT A - ARM W/ TIE RODS для Polaris TRAIL BOSS (A00AA32AB) (WHITE) - 2000 года выпуска
-
№АртикулНазвание
-
17542403 NUT, LOCKNUT, LOCK
-
25333367 BUSHINGBUSHING
-
35411291 SEAL, BOOT ROD END (1/2 IN)SEAL, BOOT ROD END (1/2 IN)
-
47061034 ROD, END (RIGHT)ROD, END (RIGHT)
-
57542711 NUT, JAMNUT, JAM
-
65020927 ROD, TIEROD, TIE
-
77547028 NUT, JAM (LEFT)NUT, JAM (LEFT)
-
87061033 ROD END KIT (10MM/OUTER) (BUILT BEFORE 8/16/99)ROD END KIT (10MM/OUTER) (BUILT BEFORE 8/16/99)
-
87061054 ROD, END (42 DEGREE/10MM,1/2-20) (LEFT) (BUILT AFTER 8/16/99)ROD, END (42 DEGREE/10MM,1/2-20) (LEFT) (BUILT AFTER 8/16/99)
-
95411920 BOOT, SEAL ROD END (10MM)BOOT, SEAL ROD END (10MM)
-
101820566 KIT, TIE ROD (14.0,2X4) (INCL. 3, 8) (BUILT BEFORE 8/16/99)KIT, TIE ROD (14.0,2X4) (INCL. 3, 8) (BUILT BEFORE 8/16/99)
-
101820806 TIE, ROD ASSY. (1/2) (INCL. 3, 8) (BUILT AFTER 8/16/99)TIE, ROD ASSY. (1/2) (INCL. 3, 8) (BUILT AFTER 8/16/99)
-
117517674 BOLT, HEXAGON WASH HEADBOLT, HEXAGON WASH HEAD
-
127555806 WASHER (BUILT BEFORE 8/16/99)WASHER (BUILT BEFORE 8/16/99)
-
127556099 WASHER (BUILT AFTER 8/16/99)WASHER (BUILT AFTER 8/16/99)
-
137546904 NUT, CASTLENUT, CASTLE
-
147661203 PIN, COTTERPIN, COTTER
-
155240717 BRACKET, BALL JOINTBRACKET, BALL JOINT
-
167512284 BOLT, SOCKETBOLT, SOCKET
-
177542438 NUT, CASTLENUT, CASTLE
-
185410548 BOOT, RUBBERBOOT, RUBBER
-
197080673 BALL, JOINT (52 DEGREE)BALL, JOINT (52 DEGREE)
-
215433066 BUSHING, A-ARM LONGBUSHING, A-ARM LONG
-
225020677 BUSHING, A-ARM SPACERBUSHING, A-ARM SPACER
-
237080433 FITTING, ZERK THREADEDFITTING, ZERK THREADED
-
242201605 A-FRAME, KIT (LEFT) (INCL. 21, 23,26,27)A-FRAME, KIT (LEFT) (INCL. 21, 23,26,27)
-
242201606 A-FRAME, KIT (RIGHT) (INCL. 21, 23,26,27)A-FRAME, KIT (RIGHT) (INCL. 21, 23,26,27)
-
255020681 SHAFT, A-ARMSHAFT, A-ARM
-
267512492 SCREWSCREW
-
277552603 WASHERWASHER
-
287517527 BOLTBOLT
