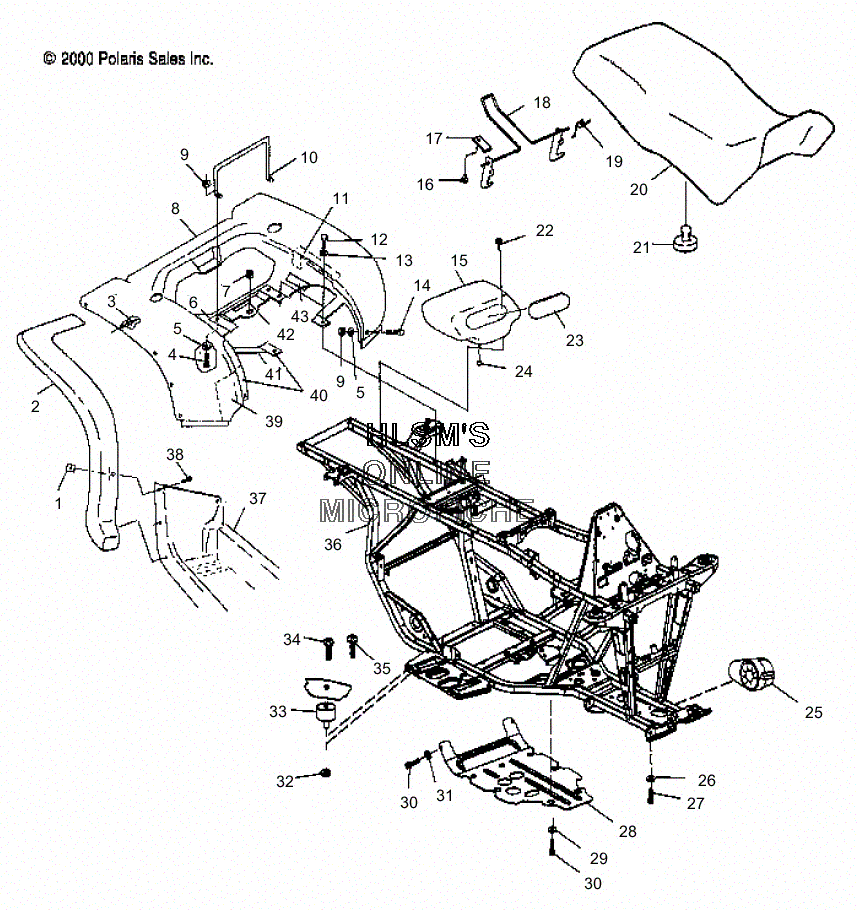

FENDER - REAR W/ SEAT для Polaris XPEDITION 325 (A00CK32AA) - 2000 года выпуска
-
№АртикулНазвание
-
17670057 NUT, SPEEDNUT, SPEED
-
25431796 GUARD, MUD (REAR/LEFT/BLACK)GUARD, MUD (REAR/LEFT/BLACK)
-
25431797 GUARD, MUD (REAR/RIGHT/BLACK)GUARD, MUD (REAR/RIGHT/BLACK)
-
37661645 RIVETRIVET
-
47511930 SCREWSCREW
-
57555792 WASHERWASHER
-
65811107 FOIL, CAB (REAR)FOIL, CAB (REAR)
-
75411042 GROMMETGROMMET
-
85432117-282 FENDER (REAR, GEN 4, D. DUNE)FENDER (REAR, GEN 4, D. DUNE)
-
97541925 NUTNUT
-
105224592 RETAINER, SEAT LATCHRETAINER, SEAT LATCH
-
115811308 FOIL, TAPE (3 X 12)FOIL, TAPE (3 X 12)
-
127512242 SCREWSCREW
-
137555859 WASHER, FLATWASHER, FLAT
-
147512085 SCREWSCREW
-
155431786 TOOLBOXTOOLBOX
-
167621403 BLIND RIVETBLIND RIVET
-
175211033 BRACKET, LEVER RETAINERBRACKET, LEVER RETAINER
-
181040387 LATCH, SEATLATCH, SEAT
-
197041370 SPRING, LATCHSPRING, LATCH
-
202682441-070 SEAT (BLACK)SEAT (BLACK)
-
202681747-070 COVER, SEAT (BLACK)COVER, SEAT (BLACK)
-
205811104 FOIL, SEATBASE LG.FOIL, SEATBASE LG.
-
205811105 FOIL, SEATBASE SM.FOIL, SEATBASE SM.
-
215410414 BUMPER, RUBBERBUMPER, RUBBER
-
227517599 BOLT AND WASHER (.88)BOLT AND WASHER (.88)
-
235431787 COVER, TOOLBOXCOVER, TOOLBOX
-
245410896 CAP, DRAINCAP, DRAIN
-
267552603 WASHERWASHER
-
277512492 SCREWSCREW
-
285433435 GUARD, ROCKGUARD, ROCK
-
297556065 WASHER, SKID PLATEWASHER, SKID PLATE
-
307517386 SCREWSCREW
-
317558301 WASHERWASHER
-
327542122 NUT, LOCKNUT, LOCK
-
335411548 MOUNT, RUBBERMOUNT, RUBBER
-
347515111 SCREWSCREW
-
357512297 BOLTBOLT
-
361013119-067 MAINFRAME, 5 SPD (BLACK)MAINFRAME, 5 SPD (BLACK)
-
375433391-070 FOOTWELL (LEFT, NY, MAN, BLACK)FOOTWELL (LEFT, NY, MAN, BLACK)
-
375433391-070 FOOTWELL (LEFT, NY, MAN, BLACK)FOOTWELL (LEFT, NY, MAN, BLACK)
-
375433392-070 FOOTWELL (RIGHT, NY, MAN, BLACK)FOOTWELL (RIGHT, NY, MAN, BLACK)
-
387512232 BOLTBOLT
-
395811111 FOIL, FOAMFOIL, FOAM
-
405811106 FOIL, FENDER (FRONT,REAR)FOIL, FENDER (FRONT,REAR)
-
415811087 FOIL, FOAM (6X1)FOIL, FOAM (6X1)
-
427077446 DECAL, FILTER ELEMENT (4-S)DECAL, FILTER ELEMENT (4-S)
-
437073761 DECAL, CARBURETOR INFODECAL, CARBURETOR INFO
