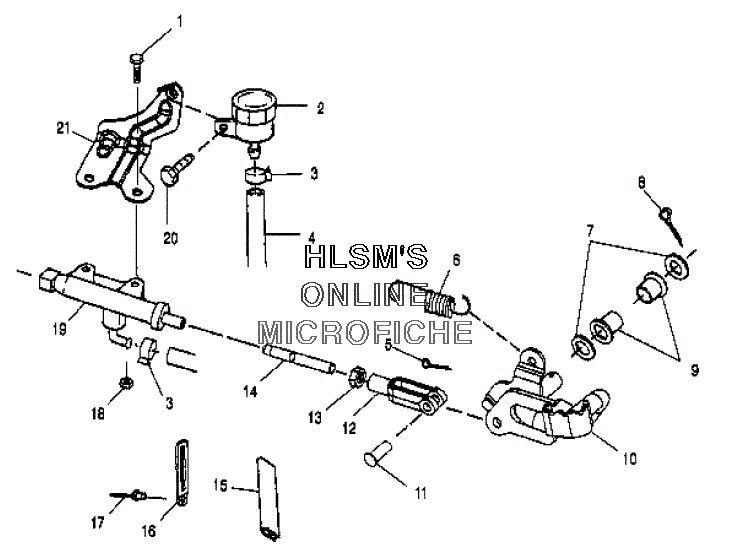

BRAKE - REAR MASTER CYLINDER для Polaris XPLORER 400 (A00CG38CA) - 2000 года выпуска
-
№АртикулНазвание
-
17512247 BOLTBOLT
-
21930854 RESERVOIR ASSY., BRAKE (REAR)RESERVOIR ASSY., BRAKE (REAR)
-
37080003 CLAMP, HOSECLAMP, HOSE
-
41910331 HOSE, RESERVOIR HBHOSE, RESERVOIR HB
-
57661011 PIN, COTTERPIN, COTTER
-
67041769 SPRING, EXTENSION 2.90'' FREE LGSPRING, EXTENSION 2.90'' FREE LG
-
77555919 WASHERWASHER
-
87661401 COTTER PINCOTTER PIN
-
95431107 BUSHING, PEDAL PIVOTBUSHING, PEDAL PIVOT
-
101012771-067 FOOTBRAKE, GEN 4 (BLACK)FOOTBRAKE, GEN 4 (BLACK)
-
117661843 CLEVISCLEVIS
-
127080644 CLEVIS, THREADEDCLEVIS, THREADED
-
137542129 NUTNUT
-
141910314 PLUNGER, BRAKE (INCL. 12,13)PLUNGER, BRAKE (INCL. 12,13)
-
158360012-04 EDGE TRIM, BLACK, 04 CMEDGE TRIM, BLACK, 04 CM
-
167080654 RETAINER, SS.RETAINER, SS.
-
177661638 RIVET, INTERLOCKRIVET, INTERLOCK
-
187542122 NUT, LOCKNUT, LOCK
-
191930899 MASTER CYLINDER ASSY., FOOTBRAKEMASTER CYLINDER ASSY., FOOTBRAKE
-
207512208 SCREWSCREW
-
215243220-067 BRACKET, RESERVOIR MOUNT (BLACK)BRACKET, RESERVOIR MOUNT (BLACK)
