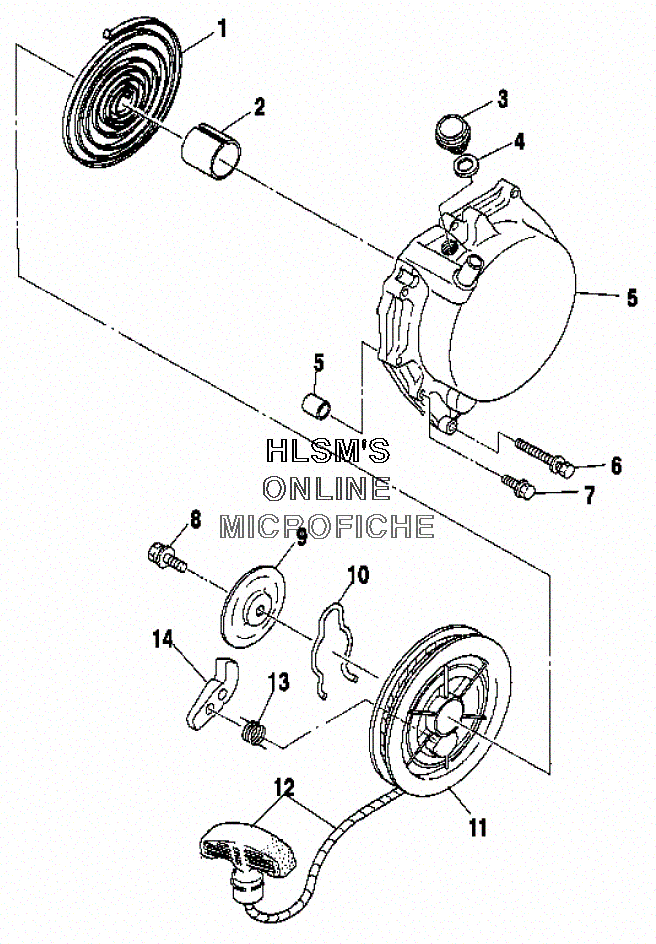

STARTER - RECOIL для Polaris XPLORER 400 (A00CG38CA) - 2000 года выпуска
-
№АртикулНазвание
-
13083185 SPRINGSPRING
-
23084750 BUSHBUSH
-
33086749 PLUGPLUG
-
43082956 GASKETGASKET
-
53085651 STARTER ASSY., RECOIL (INCL. 1,2,5,8-14)STARTER ASSY., RECOIL (INCL. 1,2,5,8-14)
-
53085656 CASE, STARTERCASE, STARTER
-
63084782 BOLT AND WASHERBOLT AND WASHER
-
73086751 BOLT, FLANGEBOLT, FLANGE
-
83085266 BOLT AND WASHER ASSY.BOLT AND WASHER ASSY.
-
93084744 PLATE, FRICTIONPLATE, FRICTION
-
103083379 SPRING, FRICTIONSPRING, FRICTION
-
113084822 REEL, STARTERREEL, STARTER
-
123085083 ROPE ASSY.ROPE ASSY.
-
133083463 SPRING, RETURNSPRING, RETURN
-
143083378 RATCHETRATCHET
