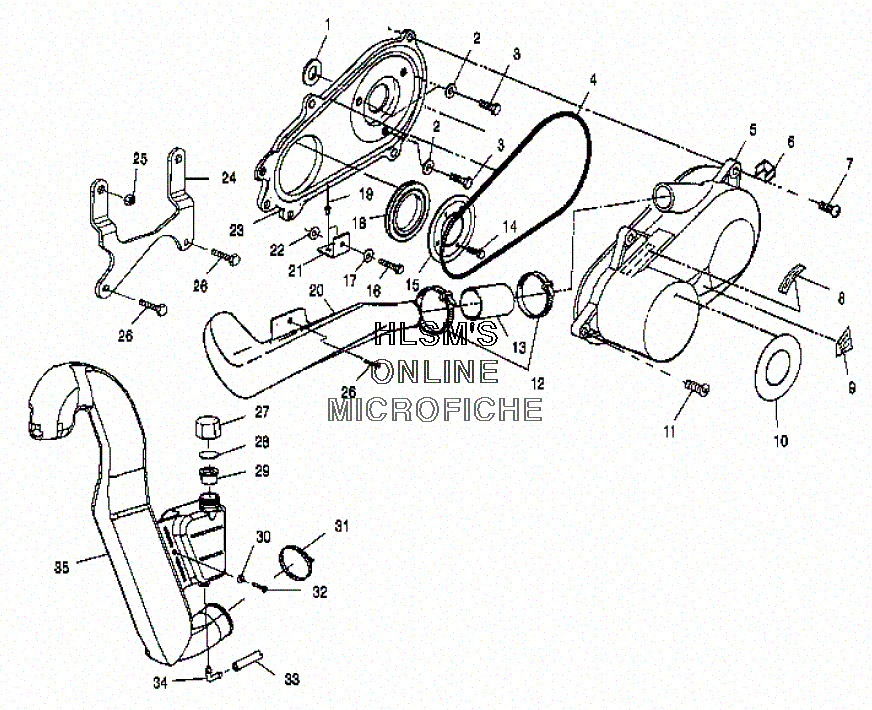

CLUTCH COVER для Polaris XPLORER 400 (A00CG38CA) - 2000 года выпуска
-
№АртикулНазвание
-
15411554 SEAL, CLUTCH COVER INNERSEAL, CLUTCH COVER INNER
-
27555748 WASHERWASHER
-
37517542 SCREWSCREW
-
45521301 SEAL, CLUTCHCOVERSEAL, CLUTCHCOVER
-
55433542 COVER, CLUTCH (FRONT)COVER, CLUTCH (FRONT)
-
67670051 CLIP, CLUTCH COVERCLIP, CLUTCH COVER
-
77512093 SCREWSCREW
-
87078689 DECALDECAL
-
97077377 DECAL, SUBSTITUTED BY 7078689DECAL, SUBSTITUTED BY 7078689
-
107074782 DECAL, AUTO.TRANSMISSIONDECAL, AUTO.TRANSMISSION
-
117512094 SCREWSCREW
-
127080492 STRAP, WEATHER RESIST (BLACK)STRAP, WEATHER RESIST (BLACK)
-
135410421 BOOT, CLUTCH INTAKEBOOT, CLUTCH INTAKE
-
155222446-067 BRACKET, RETAINER SEALBRACKET, RETAINER SEAL
-
167512098 SCREWSCREW
-
177555935 WASHERWASHER
-
185410575 SEAL, COVER CASESEAL, COVER CASE
-
197661638 RIVET, INTERLOCKRIVET, INTERLOCK
-
205432615 DUCT, AIR OUT CLUTCHDUCT, AIR OUT CLUTCH
-
215242693-067 BRACKET, CLUTCH COVER (BLACK)BRACKET, CLUTCH COVER (BLACK)
-
227555932 WASHER, NYLONWASHER, NYLON
-
232201159 COVER, CLUTCH INNER (INCL. 4,7,11,16,18)COVER, CLUTCH INNER (INCL. 4,7,11,16,18)
-
245242208-067 BRACKET, CLUTCH LOW (BLACK)BRACKET, CLUTCH LOW (BLACK)
-
257547067 NUTSERT, HEXNUTSERT, HEX
-
267512232 BOLTBOLT
-
275430743 CAP, OVERFLOWCAP, OVERFLOW
-
285810279 GASKETGASKET
-
295431895 CAP, PLUGCAP, PLUG
-
307555783 WASHERWASHER
-
317080511 CLAMP, NARROW BANDCLAMP, NARROW BAND
-
327512018 SCREWSCREW
-
338450003-1525 FUEL LINE (1/4 ID 1525 CM.)FUEL LINE (1/4 ID 1525 CM.)
-
347052065 FITTING, 90 DEGREEFITTING, 90 DEGREE
-
355433342 DUCT, CLUTCH INLETDUCT, CLUTCH INLET
