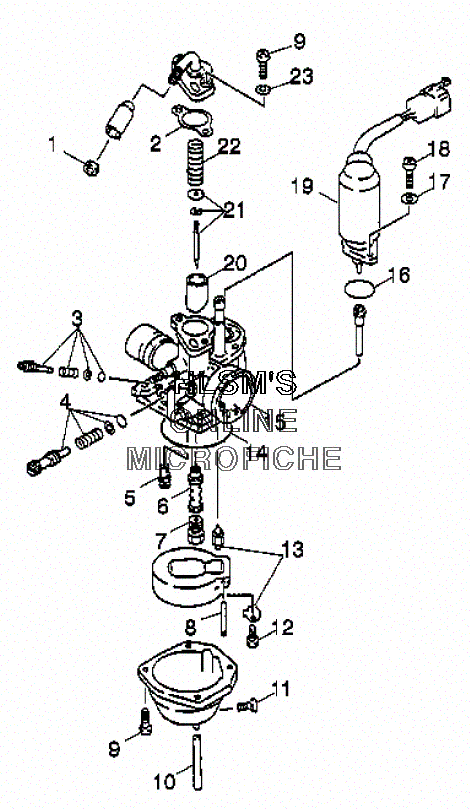

CARBURETOR для Polaris SCRAMBLER 90 (A01EA09CA) - 2001 года выпуска
-
№АртикулНазвание
-
10450120 NUT, CABLE ADJUSTNUT, CABLE ADJUST
-
20450847 GASKETGASKET
-
30450103 SET, SCREW, AIRSET, SCREW, AIR
-
40450114 SET, SCREW, THROTTLESET, SCREW, THROTTLE
-
50450101 JET, PILOTJET, PILOT
-
60450093 NOZZLE, NEEDLENOZZLE, NEEDLE
-
70450097 NOZZLE, MAINNOZZLE, MAIN
-
80450118 PIN, FLAOTPIN, FLAOT
-
90450086 BOLT, PANBOLT, PAN
-
100450099 TUBE, OVERFLOWTUBE, OVERFLOW
-
110450105 PLUG, DRAINPLUG, DRAIN
-
120450108 BOLT, PAN PHILLIPSBOLT, PAN PHILLIPS
-
130450116 SET, VALVE NEEDLESET, VALVE NEEDLE
-
140450095 SEAL, FLOAT CHAMBERSEAL, FLOAT CHAMBER
-
150450081 CARBURETOR ASSY. (INCL. 1, 23)CARBURETOR ASSY. (INCL. 1, 23)
-
160450112 RING, OILRING, OIL
-
170450107 WASHER, PLAINWASHER, PLAIN
-
180450106 BOLT, PAN, PHILLIPSBOLT, PAN, PHILLIPS
-
190450110 PLUNGER, STARTER (INCL. 16)PLUNGER, STARTER (INCL. 16)
-
200450089 VALVE, THROTTLEVALVE, THROTTLE
-
210450091 SET, NEEDLESET, NEEDLE
-
220450848 SPRING, THROTTLE STOPSPRING, THROTTLE STOP
-
230450087 WASHER, SPRINGWASHER, SPRING
