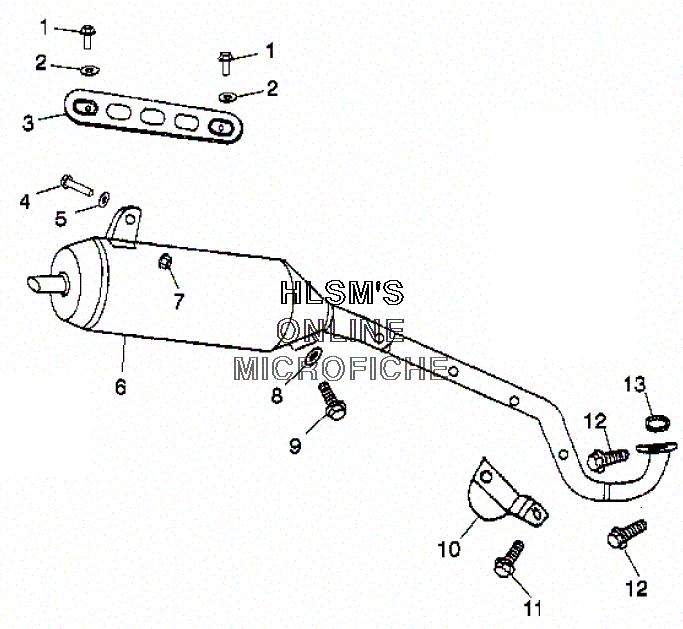

EXHAUST SYSTEM для Polaris SCRAMBLER 90 (A01EA09CA) - 2001 года выпуска
-
№АртикулНазвание
-
10450658 BOLT, PHILLIPS, PANBOLT, PHILLIPS, PAN
-
20450126 GASKETGASKET
-
30450657 PROTECTORPROTECTOR
-
40450684 BOLT, HEXAGON WASHERBOLT, HEXAGON WASHER
-
50450279 WASHERWASHER
-
60450818 EXHAUST PIPE, ASSY. (INCL. 1, 3,6, 10,13)EXHAUST PIPE, ASSY. (INCL. 1, 3,6, 10,13)
-
60450656 PIPE, EXHAUSTPIPE, EXHAUST
-
70450282 NUT, LOCKNUT, LOCK
-
80450659 GASKETGASKET
-
90450325 BOLT, HEXAGONBOLT, HEXAGON
-
100450128 PLATE, FIXED EXHAUST PIPEPLATE, FIXED EXHAUST PIPE
-
110450298 BOLT, HEXAGONBOLT, HEXAGON
-
120450123 BOLT, HEXAGON WASHERBOLT, HEXAGON WASHER
-
130450122 GASKET, EXHAUST PIPEGASKET, EXHAUST PIPE
