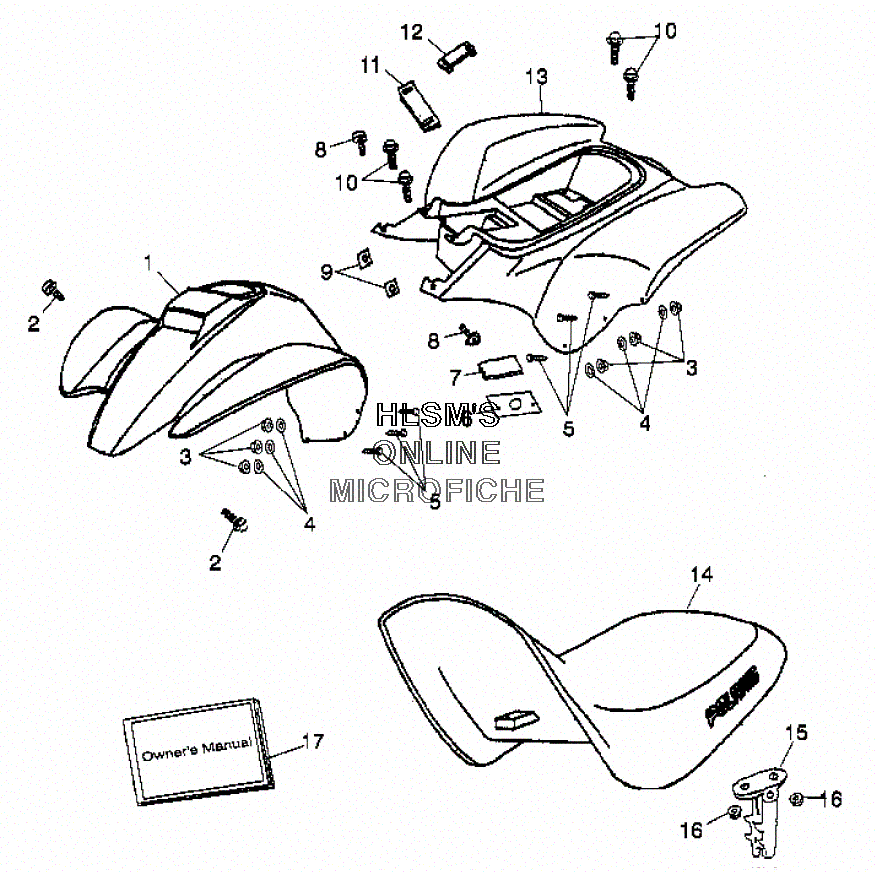

FENDER - FRONT AND REAR W/ SEAT для Polaris SCRAMBLER 90 (A01EA09CA) - 2001 года выпуска
-
№АртикулНазвание
-
10450619 FENDER (FRONT)FENDER (FRONT)
-
20450824 BOLT, W/WASHER HEXAGONBOLT, W/WASHER HEXAGON
-
30450741 NUT, LOCKNUT, LOCK
-
40450710 WASHER, PLAINWASHER, PLAIN
-
50450667 BOLT, PHILLIPSBOLT, PHILLIPS
-
60450345 PAD, PROTECTORPAD, PROTECTOR
-
70450346 RUBBER, BATTERYRUBBER, BATTERY
-
80450297 BOLT, PANBOLT, PAN
-
90450342 NUT, U-PLATENUT, U-PLATE
-
100450340 BOLT, HEXAGONBOLT, HEXAGON
-
110450343 STRAP, BATTERYSTRAP, BATTERY
-
120450621 BAND, RUBBER TOOL BOX (TOOL BOX)BAND, RUBBER TOOL BOX (TOOL BOX)
-
130450620 FENDER, SCRAMBLER (REAR)FENDER, SCRAMBLER (REAR)
-
140450355 SEAT, ASSY.SEAT, ASSY.
-
150450356 HOOK, SEATHOOK, SEAT
-
160450880 NUT, FLANGE W/SERRNUT, FLANGE W/SERR
-
179916424 MANUAL, OWNERSMANUAL, OWNERS
