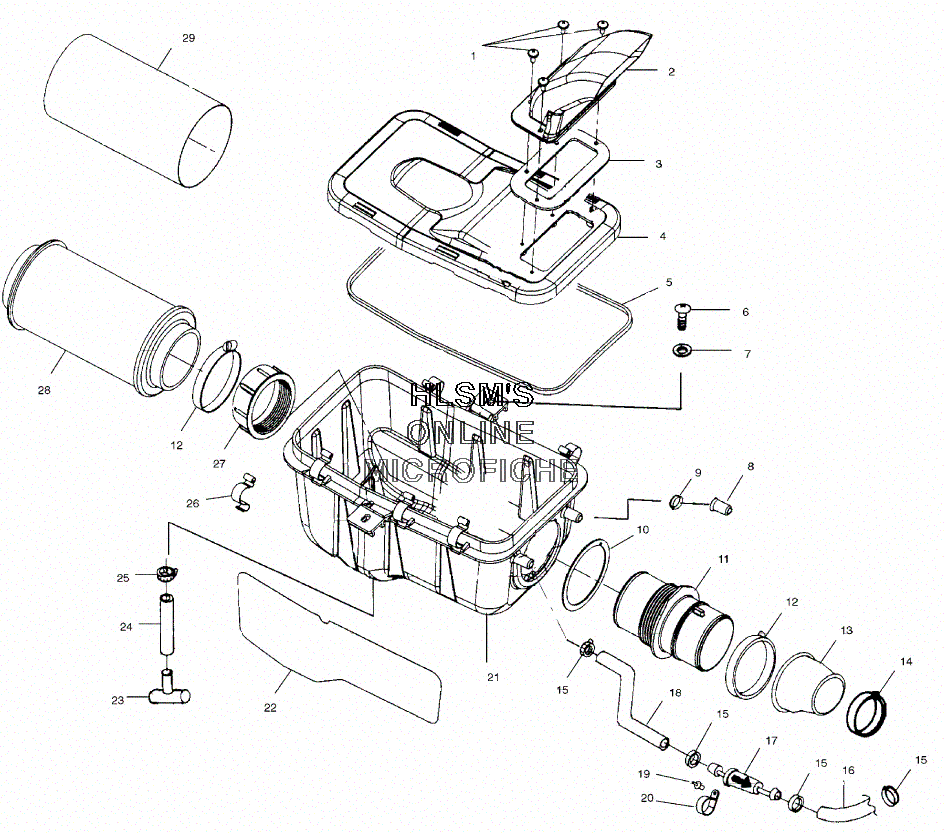

AIR BOX ASSY. для Polaris XPEDITION 425 (A01CK42AA) (DESERT DUNE) - 2001 года выпуска
-
№АртикулНазвание
-
17517541 SCREW, SEMSSCREW, SEMS
-
25432859 DUCT, INLET AIRBOX COVERDUCT, INLET AIRBOX COVER
-
35411422 GASKET, INTAKEGASKET, INTAKE
-
45432868 COVER, AIRBOXCOVER, AIRBOX
-
55811482 SEAL, AIRBOX COVERSEAL, AIRBOX COVER
-
67515179 SCREWSCREW
-
77558301 WASHERWASHER
-
85433396 FENDER, END AIRBX IN (406-12,3/4/BLACK)FENDER, END AIRBX IN (406-12,3/4/BLACK)
-
97080534 CLAMP, SPRINGCLAMP, SPRING
-
105830128 GASKET, CARBURETOR IN.DUCTGASKET, CARBURETOR IN.DUCT
-
115432473 DUCT, CARBURETOR INLETDUCT, CARBURETOR INLET
-
127080413 CLAMP, BAND NARROWCLAMP, BAND NARROW
-
135411539 BOOT, CARBUETOR (425 MAN)BOOT, CARBUETOR (425 MAN)
-
147080511 CLAMP, NARROW BANDCLAMP, NARROW BAND
-
157080699 CLAMP, HOSECLAMP, HOSE
-
165411723 HOSE, BREATHER FORMED 38 I.D.HOSE, BREATHER FORMED 38 I.D.
-
172530029 FILTER, BREATHER IN LINEFILTER, BREATHER IN LINE
-
185411724 HOSE, BREATHER FORMED 38 I.D.HOSE, BREATHER FORMED 38 I.D.
-
197621462 RIVETRIVET
-
207080653 CLAMP, HOSE 1'' NYLONCLAMP, HOSE 1'' NYLON
-
215433678 BOX, AIR INTAKE 4-STRKBOX, AIR INTAKE 4-STRK
-
225811650 FOIL, AIRBOXFOIL, AIRBOX
-
235432377 PLUG, TRAPPLUG, TRAP
-
248450059-150 FUEL LINE (OPT)FUEL LINE (OPT)
-
257080650 CLAMP, HOSECLAMP, HOSE
-
265242044 CLIP, AIR BOXCLIP, AIR BOX
-
275432601 COLLAR, CARBURETOR INLETCOLLAR, CARBURETOR INLET
-
287080595 FILTER, AIR INTAKEFILTER, AIR INTAKE
-
295811633 FILTER, PRECLEAN SLEEVEFILTER, PRECLEAN SLEEVE
