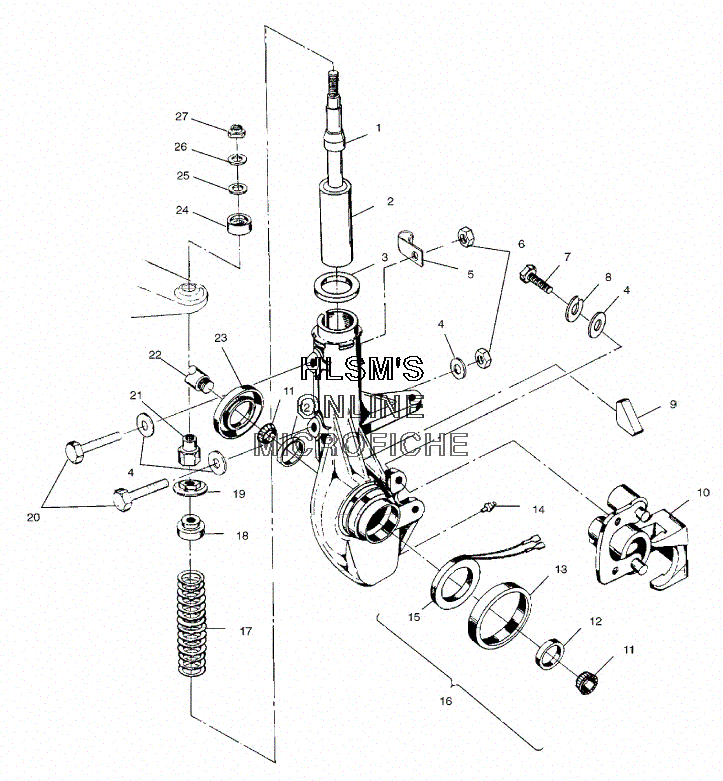

SUSPENSION - FRONT STRUT для Polaris XPEDITION 425 (A01CK42AA) (DESERT DUNE) - 2001 года выпуска
-
№АртикулНазвание
-
15411608 BUMPER, MCU (17.80MM ID)BUMPER, MCU (17.80MM ID)
-
27041761 STRUT, FRONT (18X30MM/153.8MM ST)STRUT, FRONT (18X30MM/153.8MM ST)
-
35211115 WASHER, SPRING RETAINERWASHER, SPRING RETAINER
-
47558402 WASHER, STEELWASHER, STEEL
-
57080367 CLAMP, CABLECLAMP, CABLE
-
67542324 NUTNUT
-
77512365 SCREW, CAPSCREW, CAP
-
87552901 LOCK WASHERLOCK WASHER
-
95810439 RETAINER, WIRE STRUT CASTRETAINER, WIRE STRUT CAST
-
113554509 BEARING, TAPERED ROLLERBEARING, TAPERED ROLLER
-
123554507 BEARING, TAPER ROLL CUPBEARING, TAPER ROLL CUP
-
135222193 SLEEVE, STRUT HUB SEALSLEEVE, STRUT HUB SEAL
-
147080306 FITTING, LUBE W/BALL CHECKFITTING, LUBE W/BALL CHECK
-
152410133 HUB/COIL KITHUB/COIL KIT
-
161820950 HUBSTRUT ASSY. (LEFT/32MM) (INCL. 9,12-15,23)HUBSTRUT ASSY. (LEFT/32MM) (INCL. 9,12-15,23)
-
161820951 HUBSTRUT ASSY. (RIGHT/32MM) (INCL. 9,12-15,23)HUBSTRUT ASSY. (RIGHT/32MM) (INCL. 9,12-15,23)
-
177041375-067 SPRING, COIL FRONT SHOCK (BLACK)SPRING, COIL FRONT SHOCK (BLACK)
-
185243364 RETAINER, SPRING STRUTRETAINER, SPRING STRUT
-
195432871 PIVOT, BALL BOTTOMPIVOT, BALL BOTTOM
-
207515339 BOLTBOLT
-
215132062 SPACER, STRUT (1/2-20)SPACER, STRUT (1/2-20)
-
233610028 SEAL, HUB STRUTSEAL, HUB STRUT
-
245432872 PIVOT, BALL TOPPIVOT, BALL TOP
-
255810291 SPACER, RUBBERSPACER, RUBBER
-
267555749 WASHERWASHER
-
277547104 NUTNUT
