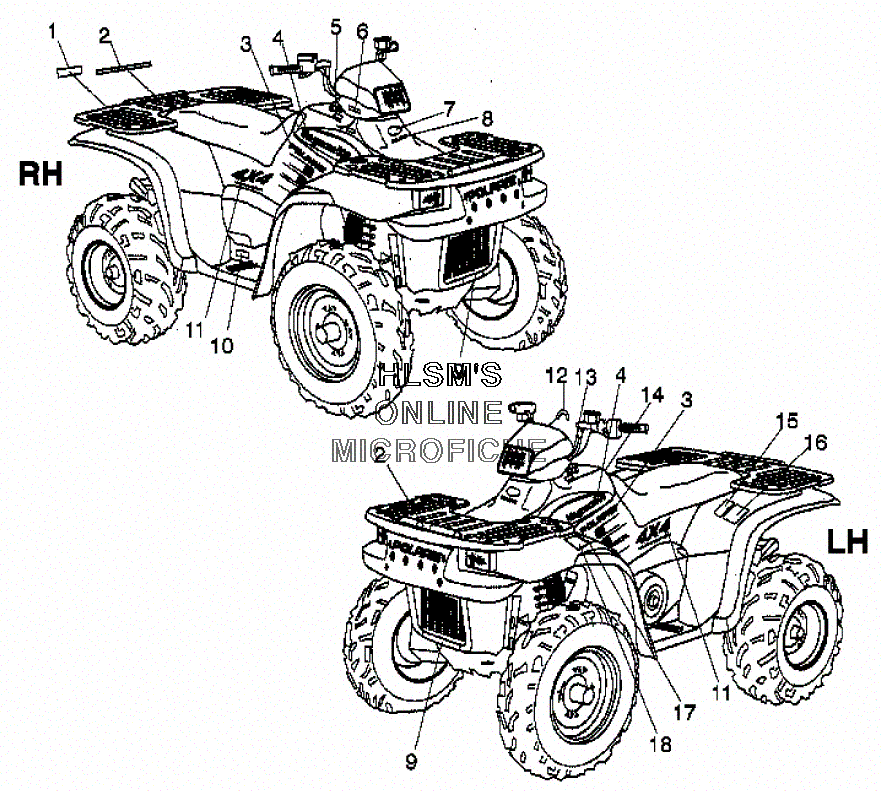

DECALS для Polaris MAGNUM 500 (A02CD50AA) - 2002 года выпуска
-
№АртикулНазвание
-
17079959 DECAL-''POLARIS'',REAR,GEN 4,WHTDECAL-''POLARIS'',REAR,GEN 4,WHT
-
27170021 Decal, Warning, Front/Rear RackDecal, Warning, Front/Rear Rack
-
37078443 DECAL,''POLARIS'',SDPNL,WHTDECAL,''POLARIS'',SDPNL,WHT
-
47078898 DECAL-TANK SIDE,LHDECAL-TANK SIDE,LH
-
47078899 DECAL-TANK SIDE,RHDECAL-TANK SIDE,RH
-
47079186 DECAL-TANK SIDE,RH,''HDS''DECAL-TANK SIDE,RH,''HDS''
-
57079780 DECALDECAL
-
67078003 DECAL-HEADLIGHT ADJUSTMENTDECAL-HEADLIGHT ADJUSTMENT
-
77078465 DECAL, STAR LOGODECAL, STAR LOGO
-
87079773 DECAL-''POLARIS'',FR CVRDECAL-''POLARIS'',FR CVR
-
97078045 DECAL-''LIQUID COOLED'',RADIATORDECAL-''LIQUID COOLED'',RADIATOR
-
107078577 DECAL,DRAIN RECOILDECAL,DRAIN RECOIL
-
117078018 DECAL-''4X4'',SHAFT RIDE SYS,LHDECAL-''4X4'',SHAFT RIDE SYS,LH
-
117078022 DECAL-''4X4'',SHAFT RIDE SYS,RHDECAL-''4X4'',SHAFT RIDE SYS,RH
-
127079520 DECAL-IGNITION,GEN 4,LOWER PODDECAL-IGNITION,GEN 4,LOWER POD
-
137079604 DECALDECAL
-
147078253 DECALDECAL
-
157077920 DECALDECAL
-
167079108 DECALDECAL
-
177079085 DECALDECAL
-
187079083 DECALDECAL
Все узлы модели:
- AIR BOX ASSY.
- BRAKE - FRONT
- BRAKE - MASTER CYLINDER W/ BRAKE LINE
- BRAKE - REAR
- CAMSHAFT W/ VALVE ASSY.
- CARBURETOR
- CLUTCH - DRIVE
- CLUTCH - DRIVEN
- CLUTCH COVER
- COOLING SYSTEM
- CRANKCASE
- CRANKSHAFT W/ PISTON
- CYLINDER
- • DECALS
- DIFFERENTIAL - FRONT
- DIFFERENTIAL - REAR
- DRIVESHAFT - FRONT
- DRIVESHAFT - FRONT INTERMEDIATE
- ELECTRICAL W/ TAILLIGHT ASSY.
- EXHAUST SYSTEM
- FENDER - FRONT W/ SIDE PANELS
- FENDER - REAR W/ SEAT - FRAME
- FUEL PUMP
- FUEL TANK AND CARBURETOR MOUNTING
- GEAR SELECTOR
- GEARCASE
- GEARCASE SELECTOR MOUNTING
- HANDLEBAR - THROTTLE ASSY. W/ CABLE
- HANDLEBAR W/ HEADLIGHT
- MAGNETO
- MOUNTING - ENGINE
- MOUNTING - TRANSMISSION
- OIL FILTER
- OIL PUMP
- OIL TANK (IF BUILT AFTER 1/02/02)
- OIL TANK (IF BUILT BEFORE 1/02/02)
- RACK AND BUMPER MOUNTING - FRONT
- RACK AND BUMPER MOUNTING - REAR
- SHOCK ABSORBER
- STARTER - RECOIL
- STARTING MOTOR
- STEERING POST
- SUSPENSION - FRONT A - ARM W/ TIE RODS
- SUSPENSION - FRONT STRUT
- SUSPENSION - REAR SWING ARM W/ AXLE - SHAFT
- TOOL KIT
- WATER PUMP
- WHEEL - FRONT
- WHEEL - REAR
