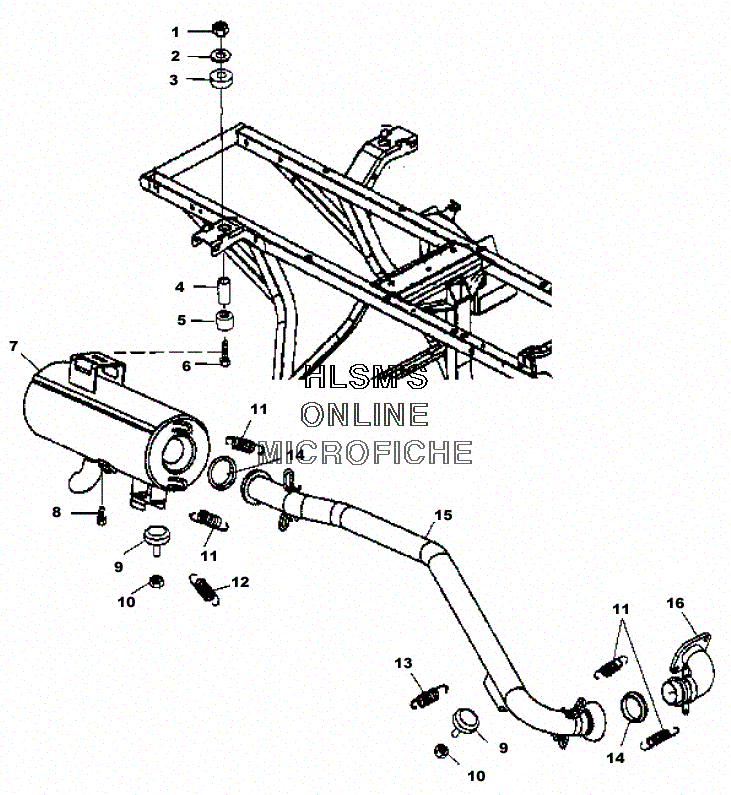

EXHAUST SYSTEM для Polaris MAGNUM 500 (A02CD50AA) - 2002 года выпуска
-
№АртикулНазвание
-
17542324 NUTNUT
-
27555716 WASHERWASHER
-
35410436 WASHER,RUBBERWASHER,RUBBER
-
45132295 BUSHING-RES MOUNTBUSHING-RES MOUNT
-
55411790 DAMPENER-VIBRATIONDAMPENER-VIBRATION
-
67515394 SCREWSCREW
-
71260961-029 SILENCER,BLKSILENCER,BLK
-
87512666 BOLTBOLT
-
93110064 MOUNT,TORQUE-STOPMOUNT,TORQUE-STOP
-
107542301 NUT HEXNUT HEX
-
117041804 SPRING-EXHAUSTSPRING-EXHAUST
-
127041789 SPRING-EXHAUSTSPRING-EXHAUST
-
137042029 SPRING-EXHAUSTSPRING-EXHAUST
-
145243517 SEAL,EXHAUSTSEAL,EXHAUST
-
161260987-029 HEADPIPE,BLKHEADPIPE,BLK
