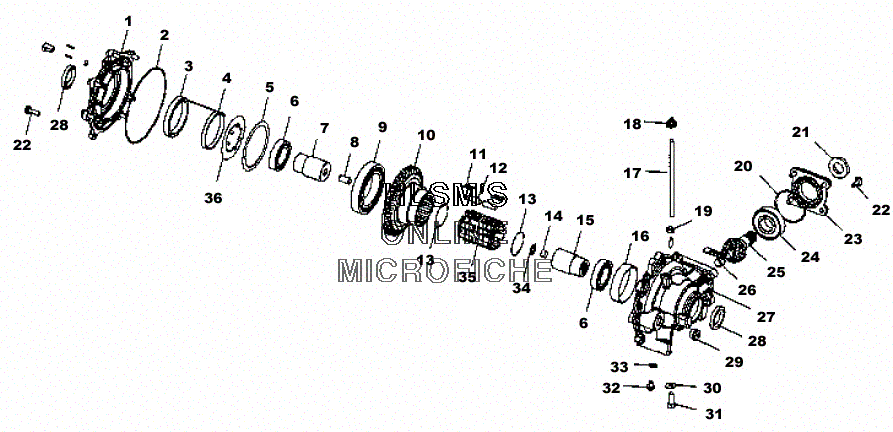

DIFFERENTIAL - FRONT для Polaris MAGNUM 500 (A02CD50AA) - 2002 года выпуска
-
№АртикулНазвание
-
-1341344 GEARCASE,ASM,FRONT (INCL. 1-16,21-30,33-37)GEARCASE,ASM,FRONT (INCL. 1-16,21-30,33-37)
-
-3233950 ASM-GEARCASE (INCL. 16,27,28)ASM-GEARCASE (INCL. 16,27,28)
-
-3233951 ASM-DRAIN PLUG (INCL. 33,34)ASM-DRAIN PLUG (INCL. 33,34)
-
-3233952 COVER,PLATE ASM (INCL. 1-4, 28)COVER,PLATE ASM (INCL. 1-4, 28)
-
-3233953 ASM-RACE/OUTPUT HUB (INCL. 7,8,14,15,35)ASM-RACE/OUTPUT HUB (INCL. 7,8,14,15,35)
-
-3233954 ASM-CLUTCH (INCL. 9-13,36)ASM-CLUTCH (INCL. 9-13,36)
-
-3233956 KIT-MINOR REPAIR (INCL. 2,21,22,29)KIT-MINOR REPAIR (INCL. 2,21,22,29)
-
-3233949 ASM-ROLL CAGE (INCL. 11,36)ASM-ROLL CAGE (INCL. 11,36)
-
53233925 KIT-SHIM SET (INCL. SHIMS)KIT-SHIM SET (INCL. SHIMS)
-
63233926 BEARING-ROLLER BALLBEARING-ROLLER BALL
-
83233928 PIN-DOWEL,1/2''DIA X 1''PIN-DOWEL,1/2''DIA X 1''
-
93233932 BEARING-ROLLER BALLBEARING-ROLLER BALL
-
103233933 CLUTCH HSG/ RING GEARCLUTCH HSG/ RING GEAR
-
113233935 SPRING-H-CLIP,.008''THKSPRING-H-CLIP,.008''THK
-
123233957 KIT-ROLLKIT-ROLL
-
133233934 RING-RETAINING,WIRE FORMRING-RETAINING,WIRE FORM
-
178450003-1525 FUEL LINE,1/4 ID(1525 CM.)FUEL LINE,1/4 ID(1525 CM.)
-
187080693 CLAMP,HOSE,NYLONCLAMP,HOSE,NYLON
-
197512024 SCREW,SCREW,
-
207080307 CLAMPCLAMP
-
233233955 KIT-BOLTKIT-BOLT
-
243233947 COVER-INPUT,MACHCOVER-INPUT,MACH
-
253233945 BEARING-ROLLER BALLBEARING-ROLLER BALL
-
263233944 SHAFT-PINION,11T,6.75DP,MACHSHAFT-PINION,11T,6.75DP,MACH
-
303233942 PLUG-OIL FILL 3/4-16 HOLLOWPLUG-OIL FILL 3/4-16 HOLLOW
-
317552603 WASHERWASHER
-
327512492 SCREWSCREW
-
353233929 BEARING-NEEDLE ROLLER THRUSTBEARING-NEEDLE ROLLER THRUST
-
373233924 ARMATURE PLATEARMATURE PLATE
