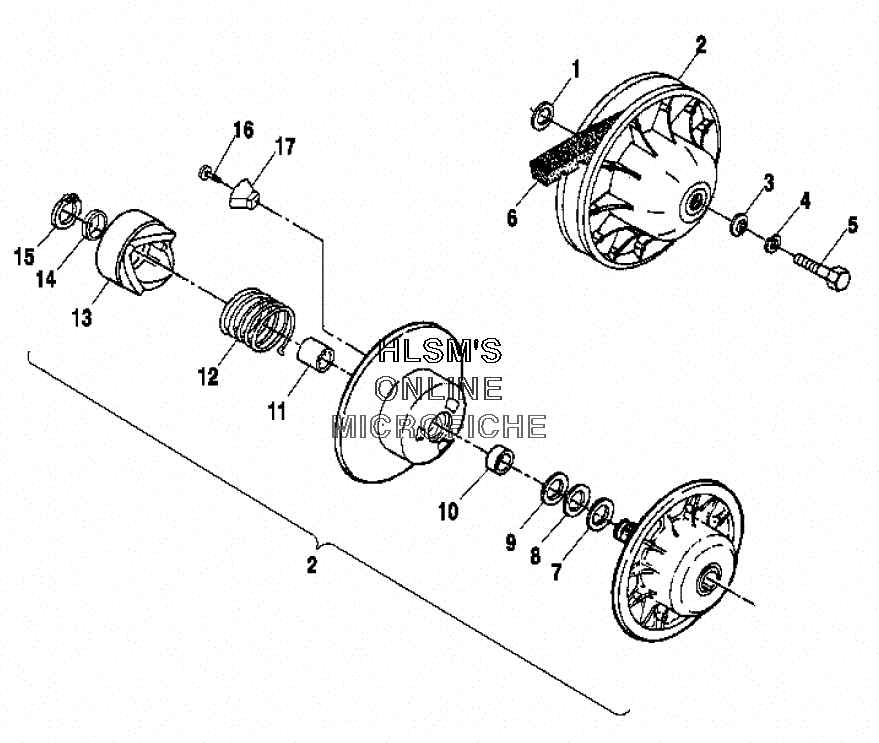

CLUTCH - DRIVEN для Polaris SCRAMBLER 500 4X4 FREEDOM (A02BG50AC) - 2002 года выпуска
-
№АртикулНазвание
-
17556120 BUSHING-7/8 X 3/8 X 16 GA-Y (OPT)BUSHING-7/8 X 3/8 X 16 GA-Y (OPT)
-
21321798 CLUTCH,DRVN,SILVER,40DEG (INCL. 7-17)CLUTCH,DRVN,SILVER,40DEG (INCL. 7-17)
-
35220646 WASHER, DOMEDWASHER, DOMED
-
47552901 LOCK WASHERLOCK WASHER
-
57515384 BOLTBOLT
-
63211077 BELT,DRIVE,ATV,CLOSE TOL(5)BELT,DRIVE,ATV,CLOSE TOL(5)
-
77555898 WASHER (.020) (OPT)WASHER (.020) (OPT)
-
87556076 WASHER (.025) (OPT)WASHER (.025) (OPT)
-
97556804 WASHER (OPT)WASHER (OPT)
-
103576504 BUSHING, DRIVENBUSHING, DRIVEN
-
113576511 BUSHINGBUSHING
-
127041499 SPRING,CLUTCH,SVR.SPRING,CLUTCH,SVR.
-
135131446 RAMP,STA.MACH,HEAVY RETRAMP,STA.MACH,HEAVY RET
-
145210752 SPACERSPACER
-
157710448 RING,RET.RING,RET.
-
167511854 BOLTBOLT
-
175430766 BUTTON,RAMPBUTTON,RAMP
