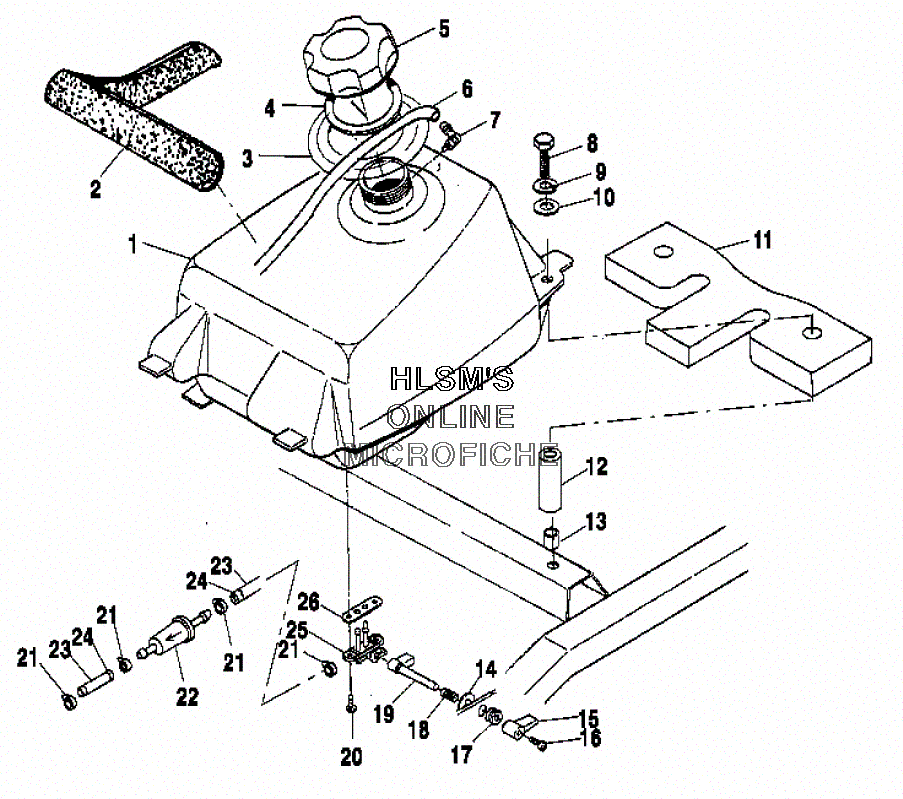

FUEL TANK для Polaris SCRAMBLER 500 4X4 FREEDOM (A02BG50AC) - 2002 года выпуска
-
№АртикулНазвание
-
12520241 FUEL TANK W/ VALVE (INCL. 7,20,25,26)FUEL TANK W/ VALVE (INCL. 7,20,25,26)
-
15432879 TANK,FUELTANK,FUEL
-
25811527 SEAL,FOAMSEAL,FOAM
-
35410842 GROMMET,FUELTANKGROMMET,FUELTANK
-
45812123 GASKET,GAS CAPGASKET,GAS CAP
-
55433687 CAP,GAS TANKCAP,GAS TANK
-
68360009-600 FUEL LINE,1/8 ID,600 CM.FUEL LINE,1/8 ID,600 CM.
-
75431053 VENT, TANKVENT, TANK
-
87512249 BOLTBOLT
-
97552801 LOCK WASHERLOCK WASHER
-
107555859 WASHER, FLATWASHER, FLAT
-
115811526 SEAL,FOAMSEAL,FOAM
-
125332457 SPACERSPACER
-
137547069 NUTSERT,HEXNUTSERT,HEX
-
147555726 WASHERWASHER
-
155431021 LEVER, FUELLEVER, FUEL
-
167511840 SCREWSCREW
-
175432291 GROMMETGROMMET
-
187041209 SPRING,LEVER,COMPRESS.SPRING,LEVER,COMPRESS.
-
195431391 EXT.,FUEL LEVEREXT.,FUEL LEVER
-
207515136 SCREWSCREW
-
217080003 CLAMP,HOSECLAMP,HOSE
-
222530009 FILTER,SMALL,IN-LINE,FILTER,SMALL,IN-LINE,
-
238450080-27 SHEATH-FOIL LAMINATED,5/8X27CMSHEATH-FOIL LAMINATED,5/8X27CM
-
248450040-600 FUEL LINE,1/4 ID(600 CM.)FUEL LINE,1/4 ID(600 CM.)
-
257051006 VALVE ASM, FUELVALVE ASM, FUEL
-
265810859 GASKET, FUEL VALVEGASKET, FUEL VALVE
