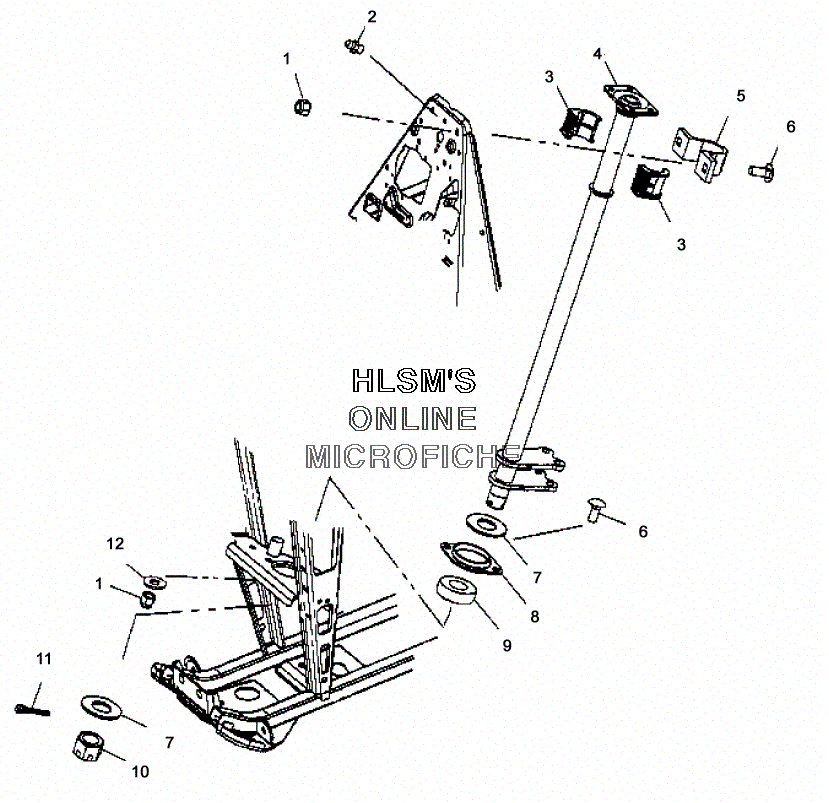

STEERING POST для Polaris SCRAMBLER 500 4X4 FREEDOM (A02BG50AC) - 2002 года выпуска
-
№АртикулНазвание
-
17542324 NUTNUT
-
27080424 FITTING, LUBE.FITTING, LUBE.
-
35433866 BUSHING-UPPER STEERING,1 INBUSHING-UPPER STEERING,1 IN
-
41821112-067 STEERING POST VL,BLKSTEERING POST VL,BLK
-
55132679 BRKT-STEERING POST (IF BUILT BEFORE 1/02/02)BRKT-STEERING POST (IF BUILT BEFORE 1/02/02)
-
55222999-067 BRKT-UPPER STEERING BUSHING (BUILT AFTER 1/02/02)BRKT-UPPER STEERING BUSHING (BUILT AFTER 1/02/02)
-
67512377 BOLT (BUILT BEFORE 1/02/02)BOLT (BUILT BEFORE 1/02/02)
-
67515321 BOLT (BUILT AFTER 1/02/02)BOLT (BUILT AFTER 1/02/02)
-
77556162 BUSHING-1X1 1/2X .145BUSHING-1X1 1/2X .145
-
85222393 FLANGETTE, (2-BOLT)FLANGETTE, (2-BOLT)
-
93514352 BEARING-1XM52XM15,SPHBEARING-1XM52XM15,SPH
-
107547158 NUT-SLOTTED HEX,1-14-HXNUT-SLOTTED HEX,1-14-HX
-
117661633 PIN, COTTERPIN, COTTER
-
127558402 WASHER, STEELWASHER, STEEL
