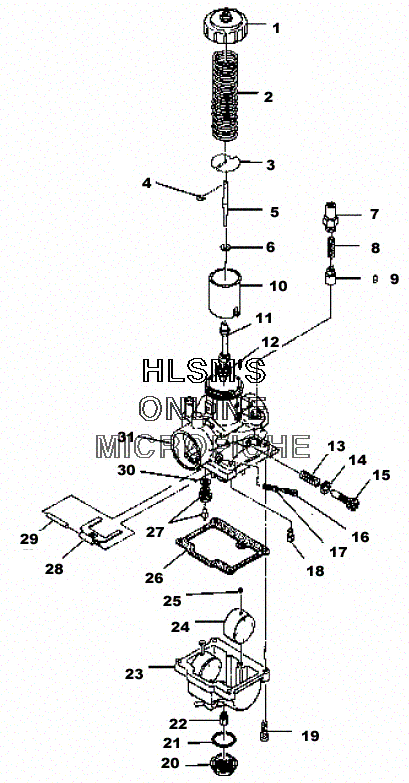

CARBURETOR для Polaris XPLORER 400 (A02CG38CA) - 2002 года выпуска
-
№АртикулНазвание
-
13130184 TOP ASMTOP ASM
-
23130496 SPRING, THROTTLESPRING, THROTTLE
-
33130027 PLATEPLATE
-
43130003 E-RINGE-RING
-
53131298 NEEDLE-JET,6DEY12-3 (J8-DEY12)NEEDLE-JET,6DEY12-3 (J8-DEY12)
-
63130355 WASHERWASHER
-
73130199 HOLDER,GUIDEHOLDER,GUIDE
-
83130006 SPRING,PLUNGERSPRING,PLUNGER
-
93130328 PLUNGER ASM, STARTERPLUNGER ASM, STARTER
-
103130494 VALVE,THROTTLE,(1.5) (1.5)VALVE,THROTTLE,(1.5) (1.5)
-
113130429 NEEDLE JET ASM. (480)NEEDLE JET ASM. (480)
-
123130596 RING,MAIN JETRING,MAIN JET
-
133130436 SPRING,THROT.ADJ.SPRING,THROT.ADJ.
-
143130447 WASHERWASHER
-
153130009 SCREW,THROTTLE STOPSCREW,THROTTLE STOP
-
163130011 SCREW,AIRSCREW,AIR
-
173130012 SPRING,AIR ADJUSTSPRING,AIR ADJUST
-
183130066 JET,PILOT,#35 (#35)JET,PILOT,#35 (#35)
-
193130025 SCREW AND WASHERSCREW AND WASHER
-
203130432 SCREW, GUIDESCREW, GUIDE
-
213130239 O RINGO RING
-
223130123 JET,MAIN,HX.HD#200 (#200)JET,MAIN,HX.HD#200 (#200)
-
233130443 BOWL, FLOAT (350)BOWL, FLOAT (350)
-
243130430 FLOAT ASM.FLOAT ASM.
-
253130237 CAP,CAP,
-
263130020 PACKING,FLOAT CHAMBERPACKING,FLOAT CHAMBER
-
273131385 VALVE-NEEDLE,2.5 (2.5)VALVE-NEEDLE,2.5 (2.5)
-
283130018 ARM,FLOATARM,FLOAT
-
293130361 PIN, FLOATPIN, FLOAT
-
303130047 WASHERWASHER
-
313131384 ASM-CARBURETOR (INCL. 1-31)ASM-CARBURETOR (INCL. 1-31)
