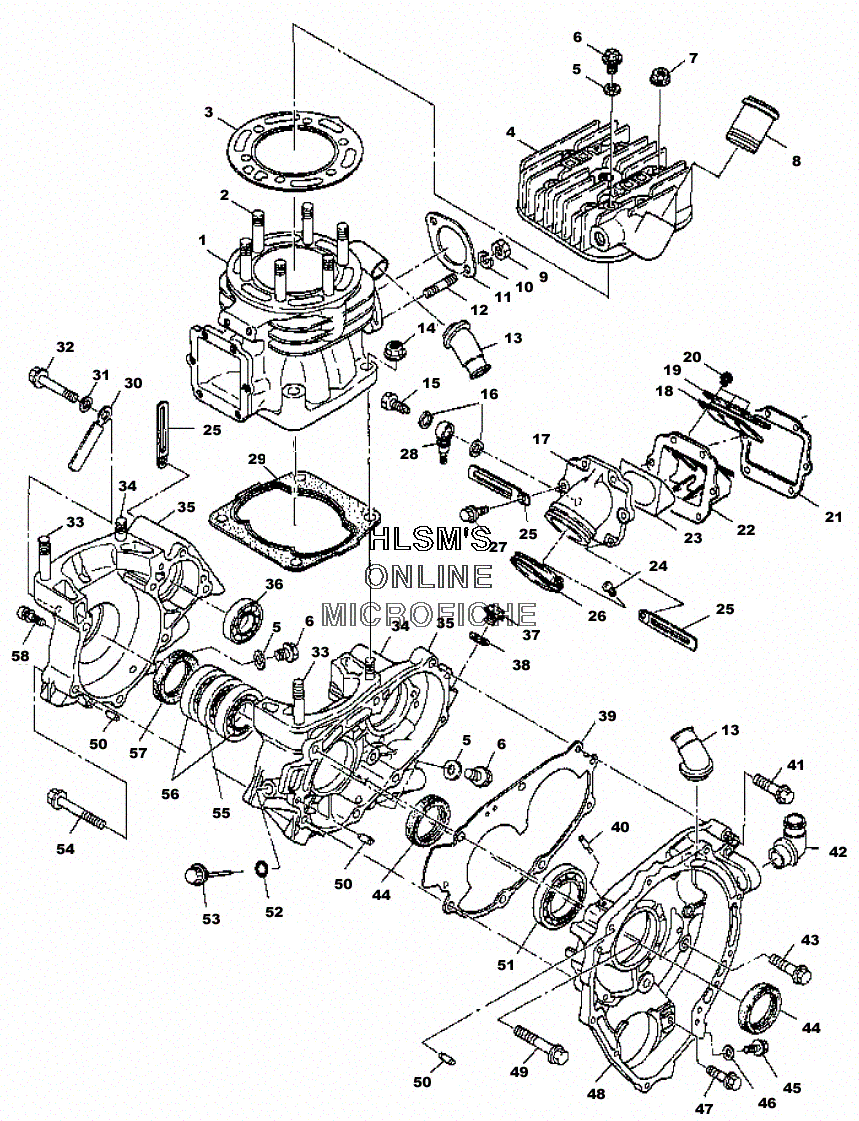

CRANKCASE W/ CYLINDER для Polaris XPLORER 400 (A02CG38CA) - 2002 года выпуска
-
№АртикулНазвание
-
13086753 CYLINDER (INCL. 2,12,13)CYLINDER (INCL. 2,12,13)
-
23084138 STUDSTUD
-
33084731 GASKET,HEADGASKET,HEAD
-
43086755 CYLINDER-HEAD (INCL. 8)CYLINDER-HEAD (INCL. 8)
-
53082758 WASHER,FLATWASHER,FLAT
-
63086744 PLUG, DRAINPLUG, DRAIN
-
73082910 NUT-FLANGENUT-FLANGE
-
83083452 PIPE, WATERPIPE, WATER
-
93080285 NUTNUT
-
103080530 WASHER LOCK ,WASHER LOCK ,
-
113086757 GASKET-EXHAUSTGASKET-EXHAUST
-
123085326 STUD,STUD,
-
133086746 PIPE-1,ELBOWPIPE-1,ELBOW
-
143082911 NUT-FLANGENUT-FLANGE
-
153086758 BOLT-BANJOBOLT-BANJO
-
163083138 WASHER,FLATWASHER,FLAT
-
173085277 ADAPTER, CARB.ADAPTER, CARB.
-
183240064 VALVE, REEDVALVE, REED
-
193240065 STOPPERSTOPPER
-
203240066 SCREW, REEDSCREW, REED
-
213086760 GASKET, REED VALVEGASKET, REED VALVE
-
223084147 VALVE ASM., REED (INCL. 18-20)VALVE ASM., REED (INCL. 18-20)
-
233240164 STUFFER,(REED VALVE ASM.)STUFFER,(REED VALVE ASM.)
-
243081497 SCREW,SCREW,
-
253083590 CLAMPCLAMP
-
263084144 BAND ASM. (INCL. 24)BAND ASM. (INCL. 24)
-
273087150 BOLT-FLANGEBOLT-FLANGE
-
283083894 VALVE, CHECKVALVE, CHECK
-
293084729 GASKET,CYLINDERGASKET,CYLINDER
-
303083384 CLAMPCLAMP
-
313080142 WASHERWASHER
-
323084124 BOLT, FLANGEBOLT, FLANGE
-
333084118 STUDSTUD
-
343084119 STUDSTUD
-
353086740 ASM-CRANKCASE (INCL. 5,6,32-36,44,47,50,54-57)ASM-CRANKCASE (INCL. 5,6,32-36,44,47,50,54-57)
-
363084123 BEARING, BALLBEARING, BALL
-
373086749 PLUGPLUG
-
383082956 GASKETGASKET
-
393086748 GASKET-CASE 3GASKET-CASE 3
-
403084128 PIPE, BREATHERPIPE, BREATHER
-
413086751 BOLT-FLANGEBOLT-FLANGE
-
423086747 PIPE-2,ELBOWPIPE-2,ELBOW
-
433086752 BOLT, FLANGEBOLT, FLANGE
-
443084120 SEAL, OILSEAL, OIL
-
453085152 PLUGPLUG
-
463083482 GASKET,ALUMINUMGASKET,ALUMINUM
-
473086743 BOLT, FLANGEBOLT, FLANGE
-
483086745 CRANKCASE 3 (INCL. 13,40,42,44,45,46,50,51)CRANKCASE 3 (INCL. 13,40,42,44,45,46,50,51)
-
493084134 BOLT, FLANGEBOLT, FLANGE
-
503086741 PIN, DOWELPIN, DOWEL
-
513084131 BEARING, BALLBEARING, BALL
-
523084733 O-RINGO-RING
-
533086761 DIP STICK,CRANKCASEDIP STICK,CRANKCASE
-
543086742 BOLT-FLANGEBOLT-FLANGE
-
553084775 BEARING, BALLBEARING, BALL
-
563084121 BEARING, BALLBEARING, BALL
-
573084725 SEAL, OILSEAL, OIL
-
583084205 SCREW AND WASHERSCREW AND WASHER
