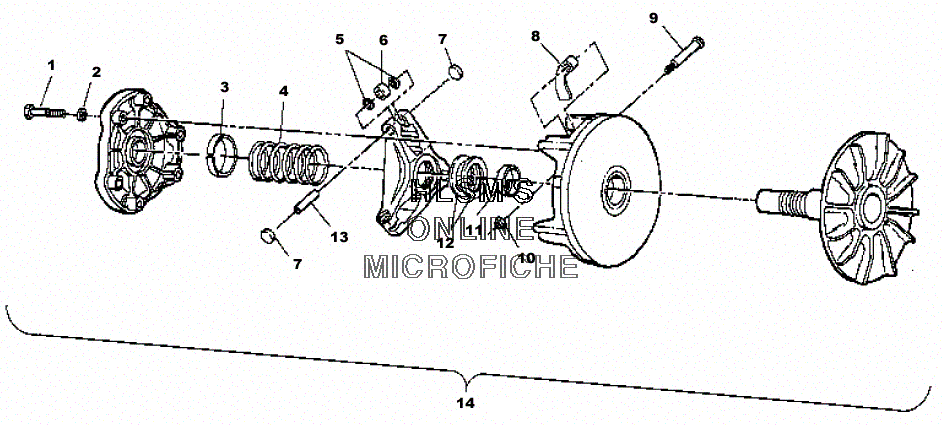

CLUTCH - DRIVE для Polaris XPLORER 400 (A02CG38CA) - 2002 года выпуска
-
№АртикулНазвание
-
17512176 SCREWSCREW
-
27552801 LOCK WASHERLOCK WASHER
-
33576510 BEARING, COVER,BEARING, COVER,
-
47041157 SPRING,CLUTCHSPRING,CLUTCH
-
55430945 WASHER,WASHER,
-
61321457 ROLLER/BUSHING ASM.(6)ROLLER/BUSHING ASM.(6)
-
75431936 BUTTON,CLUTCHBUTTON,CLUTCH
-
85630509 WEIGHT, SHIFT S-55(6) (S-55)WEIGHT, SHIFT S-55(6) (S-55)
-
97512266 BOLT,SPECIALBOLT,SPECIAL
-
107541906 NUT FLEX LOCNUT FLEX LOC
-
113576504 BUSHING, DRIVEN (1/2'')BUSHING, DRIVEN (1/2'')
-
125210752 SPACER (.020 MM)SPACER (.020 MM)
-
125242981 SPACER (.025 MM)SPACER (.025 MM)
-
125210753 SPACER (.032 MM)SPACER (.032 MM)
-
125210754 SPACER (.050 MM)SPACER (.050 MM)
-
135020422 PIN-ROLLER,PIN-ROLLER,
-
141321632 ASM-DRIVE CLUTCH,WIDE (INCL. ALL LESS 4,8)ASM-DRIVE CLUTCH,WIDE (INCL. ALL LESS 4,8)
