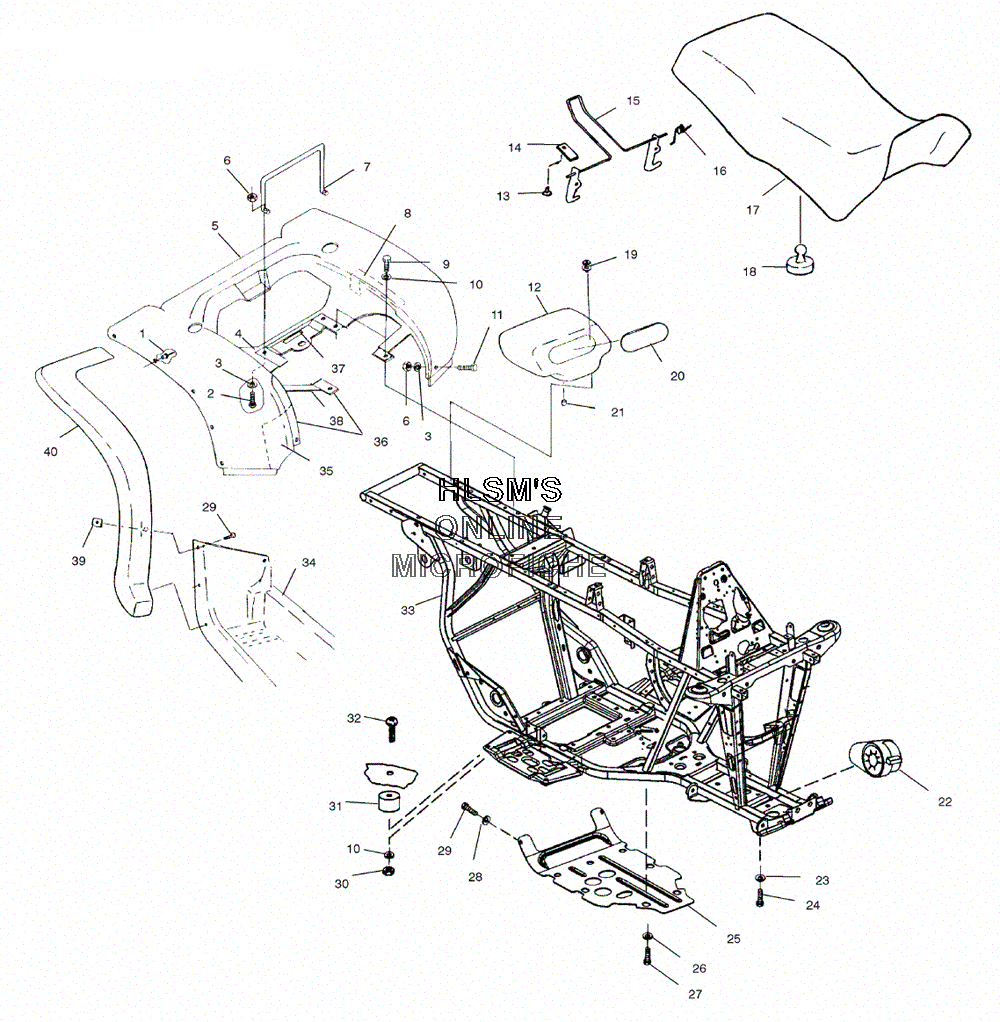

FENDER - REAR W/ SEAT для Polaris MAGNUM 330 4X4 (A03CD32AB) (MOSSY OAK CAMO) - 2003 года выпуска
-
№АртикулНазвание
-
17661645 RIVETRIVET
-
27511930 SCREWSCREW
-
37555792 WASHERWASHER
-
45811107 FOIL, CAB (REAR)FOIL, CAB (REAR)
-
55433282-283A CAB, GEN 4 (REAR/ MOLLY OAK CAMO)CAB, GEN 4 (REAR/ MOLLY OAK CAMO)
-
67541925 NUT, NYLOKNUT, NYLOK
-
75224592 RETAINER, SEAT LATCHRETAINER, SEAT LATCH
-
85811308 FOIL, TAPE (3 X 12)FOIL, TAPE (3 X 12)
-
97512242 SCREWSCREW
-
107555859 WASHER, FLATWASHER, FLAT
-
117512085 SCREWSCREW
-
125431786 TOOLBOXTOOLBOX
-
137621403 BLIND RIVETBLIND RIVET
-
145211033 BRACKET, LEVER RETAINERBRACKET, LEVER RETAINER
-
151040387 LATCH, SEATLATCH, SEAT
-
167041370 SPRING, LATCHSPRING, LATCH
-
172682441-070 SEAT (BLACK)SEAT (BLACK)
-
172682958-070 COVERING, SEAT (BLACK)COVERING, SEAT (BLACK)
-
175811104 FOIL, SEATBASE LG.FOIL, SEATBASE LG.
-
175811105 FOIL, SEATBASE SM.FOIL, SEATBASE SM.
-
185412067 BUMPER, RUBBERBUMPER, RUBBER
-
197517375 WASHERWASHER
-
205431787 COVER, TOOLBOXCOVER, TOOLBOX
-
215410896 CAP, DRAINCAP, DRAIN
-
237552603 WASHER, SPRING LOCKWASHER, SPRING LOCK
-
247512492 SCREWSCREW
-
255433435 GUARD, ROCKGUARD, ROCK
-
267556065 WASHERWASHER
-
277517386 SCREWSCREW
-
287558301 WASHER, FLATWASHER, FLAT
-
297512232 BOLTBOLT
-
307542122 NUT, NYLOKNUT, NYLOK
-
315412156 GROMMETGROMMET
-
327517987 SCREWSCREW
-
331013899-067 MAINFRAME (BLACK)MAINFRAME (BLACK)
-
345432221-070 FOOTWELL, NYLON (BLACK/ LEFT)FOOTWELL, NYLON (BLACK/ LEFT)
-
345433219-070 FOOTWELL, NYLON (RIGHT/ BLACK)FOOTWELL, NYLON (RIGHT/ BLACK)
-
355811111 FOILFOIL
-
365811106 FOIL, CAB (FRONT/ REAR)FOIL, CAB (FRONT/ REAR)
-
377170007 DECAL, 4 STRK, CARB/ FILTERDECAL, 4 STRK, CARB/ FILTER
-
385811087 FOIL, (6 X 1)FOIL, (6 X 1)
-
397670057 NUT, SPEEDNUT, SPEED
-
405431796-070 GUARD, MUD (REAR/ LEFT/ BLACK)GUARD, MUD (REAR/ LEFT/ BLACK)
-
405431797-070 GUARD, MUD (REAR/ RIGHT/ BLACK)GUARD, MUD (REAR/ RIGHT/ BLACK)
