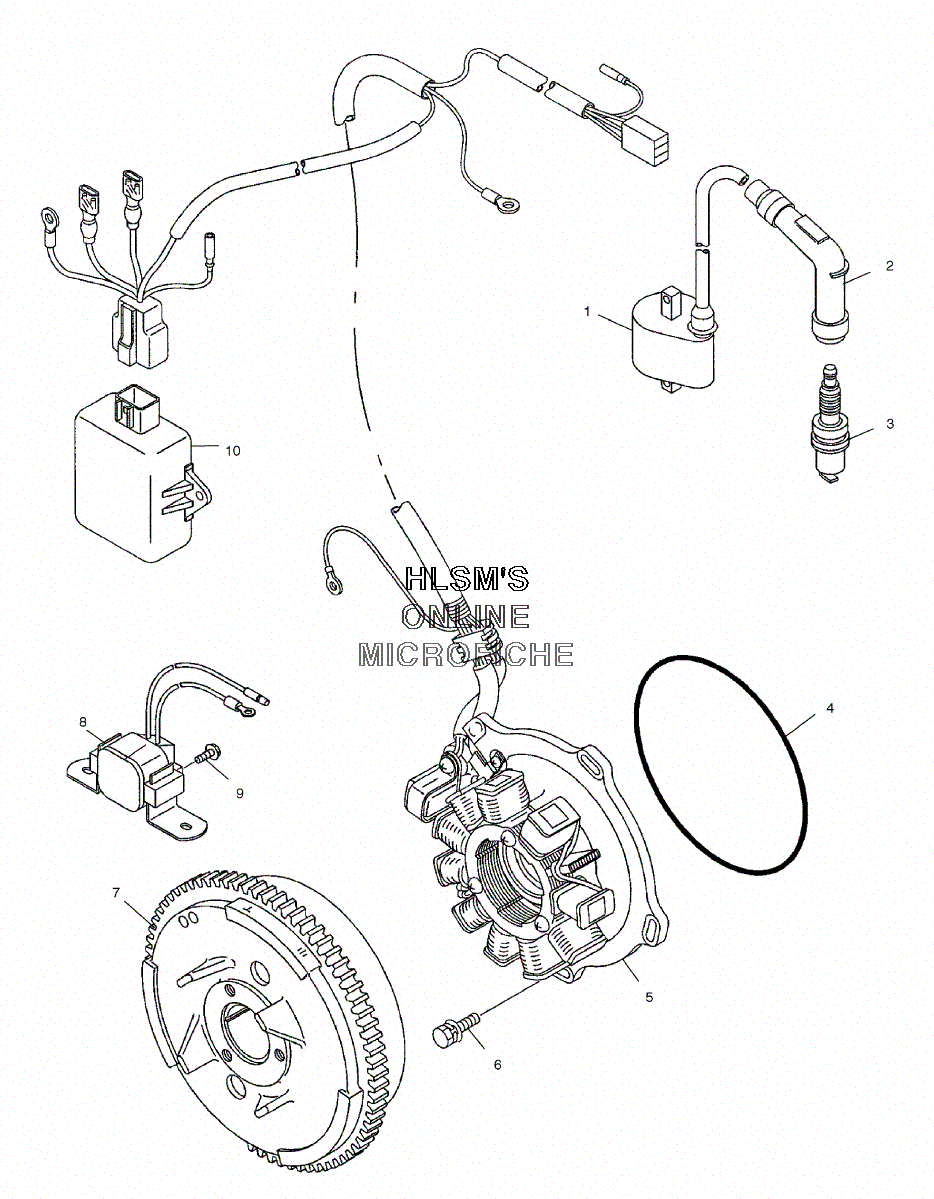

MAGNETO для Polaris MAGNUM 330 4X4 (A03CD32AB) (MOSSY OAK CAMO) - 2003 года выпуска
-
№АртикулНазвание
-
13087036 ASSY., IGNITION COILASSY., IGNITION COIL
-
13086484 IGNITION COIL ASSY.IGNITION COIL ASSY.
-
23087037 CAP, SPARKPLUGCAP, SPARKPLUG
-
33087257 SPARKPLUGSPARKPLUG
-
43084978 O-RINGO-RING
-
53087252 PLATE ASSY.PLATE ASSY.
-
63081657 BOLT AND WASHER ASSY.BOLT AND WASHER ASSY.
-
73087251 MAGNETO ASSY.MAGNETO ASSY.
-
83087196 SWITCH, MAGNETICSWITCH, MAGNETIC
-
93087258 BOLT, FLANGEBOLT, FLANGE
-
103087253 CDI SYSTEMCDI SYSTEM
