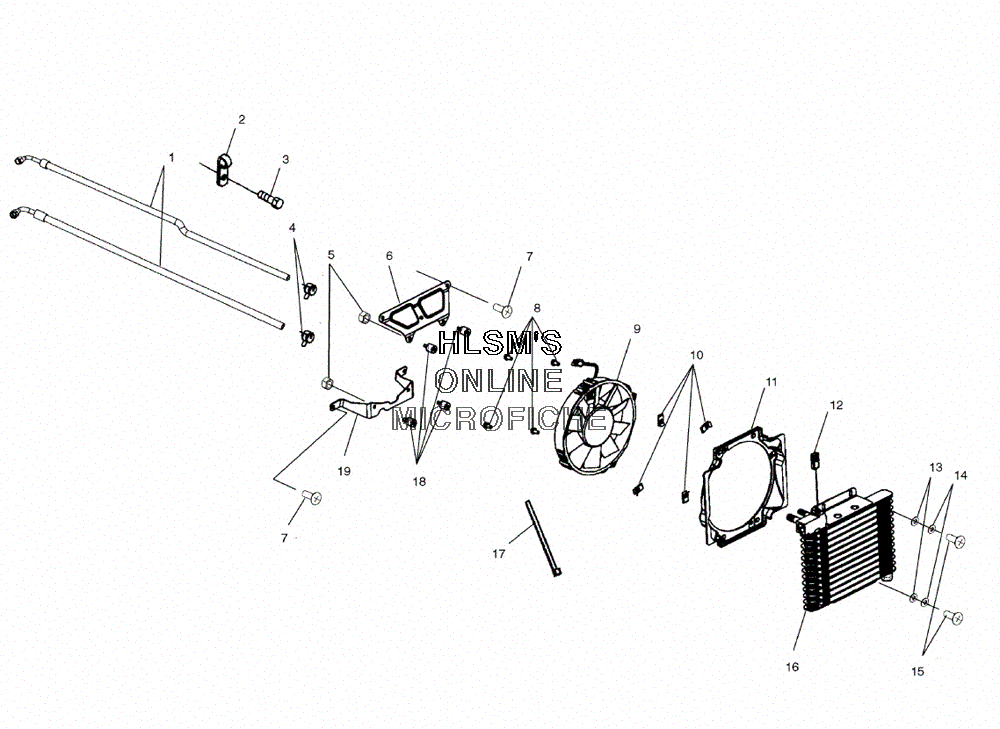

OIL COOLING SYSTEM для Polaris MAGNUM 330 4X4 (A03CD32AB) (MOSSY OAK CAMO) - 2003 года выпуска
-
№АртикулНазвание
-
15412039 HOSE, COOLER 9/16'' 90 DEG SWIVELHOSE, COOLER 9/16'' 90 DEG SWIVEL
-
27080851 CLAMP, HOSE 1.312 VINYL COATEDCLAMP, HOSE 1.312 VINYL COATED
-
37512084 SCREWSCREW
-
47080862 CLAMP, HOSE MUBEACLAMP, HOSE MUBEA
-
57542122 NUT, NYLOKNUT, NYLOK
-
65245416-067 BRACKET, OIL COOLER (TOP/ BLACK)BRACKET, OIL COOLER (TOP/ BLACK)
-
77515133 SCREWSCREW
-
87517659 SCREWSCREW
-
92410157 FAN, MOTORFAN, MOTOR
-
107670111 CLIP, UCLIP, U
-
115433353 SHROUD, FANSHROUD, FAN
-
124010274 THERMISTERTHERMISTER
-
137558301 WASHER, FLATWASHER, FLAT
-
147552801 WASHER, SPRING LOCKWASHER, SPRING LOCK
-
157512240 BOLTBOLT
-
161240074 COOLER, OILCOOLER, OIL
-
177080999 TIE, CABLE PRESS MOUNT (BLACK)TIE, CABLE PRESS MOUNT (BLACK)
-
185411548 MOUNT, RUBBERMOUNT, RUBBER
-
191013519 BRACKET, OIL COOLER ASSY. (LOWER)BRACKET, OIL COOLER ASSY. (LOWER)
