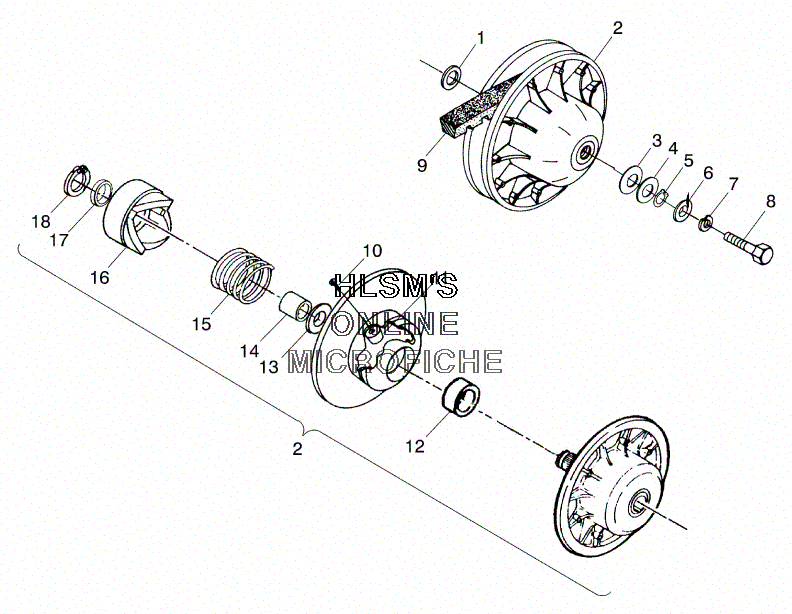

CLUTCH - DRIVEN для Polaris MAGNUM 500 4X4 (A03CD50FB) - 2003 года выпуска
-
№АртикулНазвание
-
17556120 BUSHING 7/8 X 3/8 X 16 GA-Y (OPT)BUSHING 7/8 X 3/8 X 16 GA-Y (OPT)
-
21321973 CLUTCH,ASSY. DRIVEN, EBS, 31Ш W/Y [INCL. 4-6,12-18]CLUTCH,ASSY. DRIVEN, EBS, 31Ш W/Y [INCL. 4-6,12-18]
-
37556013 WASHER 1.39X2.50X.030, PTFEWASHER 1.39X2.50X.030, PTFE
-
47556010 BUSHINGBUSHING
-
57710461 RING, RETAIN. HEADRING, RETAIN. HEAD
-
65220646 WASHER, DOMEDWASHER, DOMED
-
77552901 WASHER, SPRING LOCKWASHER, SPRING LOCK
-
87515382 BOLTBOLT
-
93211069 BELT, DRIVE ENGINE BRAKEBELT, DRIVE ENGINE BRAKE
-
107517323 SCREW, SPECIALSCREW, SPECIAL
-
111321977 ROLLER-TAPER, SP-21, MACHROLLER-TAPER, SP-21, MACH
-
123585710 BEARINGBEARING
-
135211115 WASHER, SPRING RETAINERWASHER, SPRING RETAINER
-
143576511 BUSHINGBUSHING
-
157041635 SPRING,WHITE/ YELLOWSPRING,WHITE/ YELLOW
-
165132751 RAMP-STA, EBS, 31Ш, MACHRAMP-STA, EBS, 31Ш, MACH
-
175210753 SPACER, .032SPACER, .032
-
187710448 RING, RETAINERRING, RETAINER
