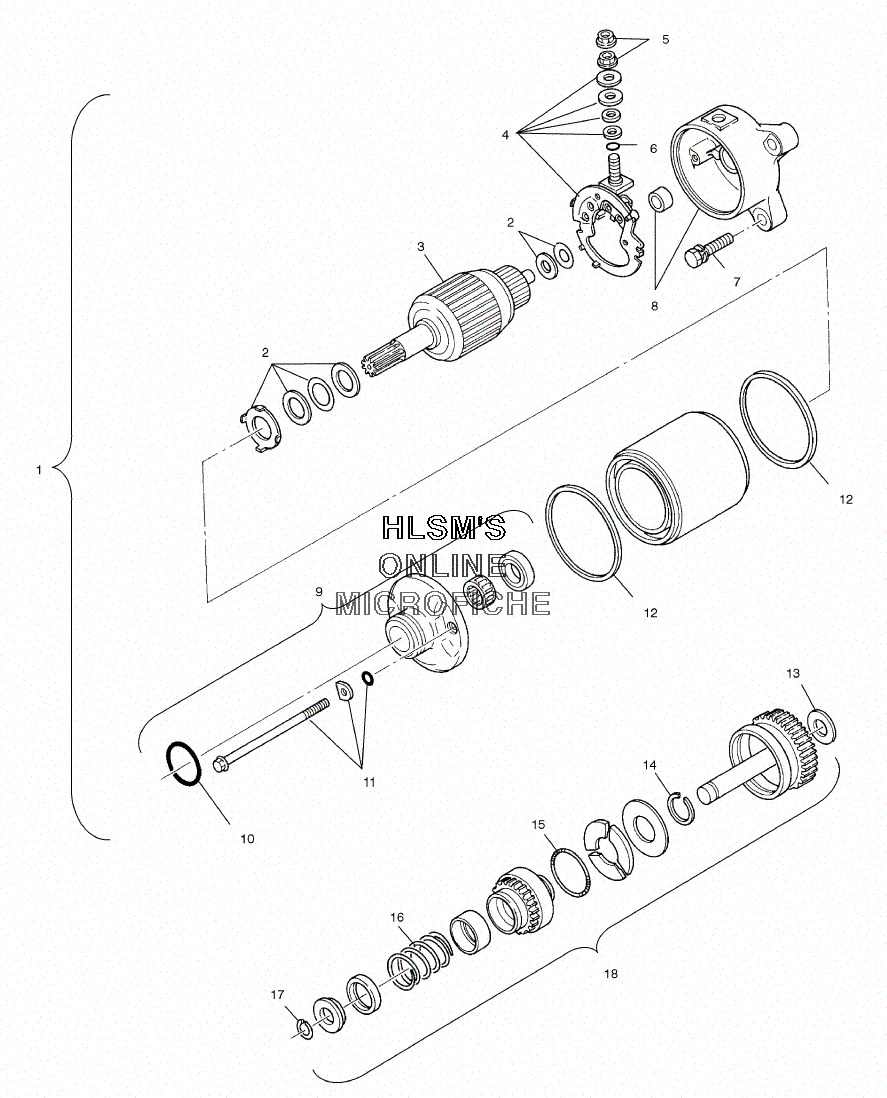

STARTING MOTOR для Polaris MAGNUM 500 4X4 (A03CD50FB) - 2003 года выпуска
-
№АртикулНазвание
-
13084981 MOTOR, STARTING (INCL. 2-6,8-12)MOTOR, STARTING (INCL. 2-6,8-12)
-
23084982 WASHER SETWASHER SET
-
33085353 ARMATURE ASSY.ARMATURE ASSY.
-
43084406 BRUSH, COMPL. 2-POLEBRUSH, COMPL. 2-POLE
-
53083649 NUT, FLANGENUT, FLANGE
-
63084408 O-RINGO-RING
-
73082038 BOLT AND WASHER ASSY.BOLT AND WASHER ASSY.
-
83085034 BRACKET ASSY. (REAR)BRACKET ASSY. (REAR)
-
93085033 BRACKET ASSY. (FRONT) (INCL. 10)BRACKET ASSY. (FRONT) (INCL. 10)
-
103240114 O-RINGO-RING
-
113084983 BOLT ASSY. SET (INCL. 6)BOLT ASSY. SET (INCL. 6)
-
123084405 RING, RUBBERRING, RUBBER
-
133083737 WASHERWASHER
-
143084412 CLIPCLIP
-
153084411 SPRING, WEIGHTSPRING, WEIGHT
-
163084410 SPRING, RETURNSPRING, RETURN
-
173084409 CLIPCLIP
-
183087030 GEAR SHAFT ASSY. (INCL. 13-17)GEAR SHAFT ASSY. (INCL. 13-17)
