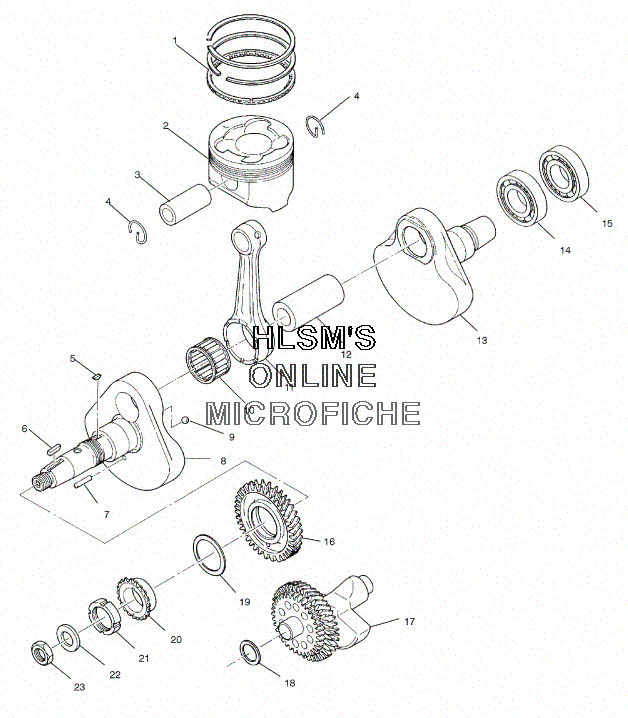

CRANKSHAFT W/ PISTON для Polaris MAGNUM 500 4X4 (A03CD50FB) - 2003 года выпуска
-
№АртикулНазвание
-
13087224 SET, PISTON, RING (STANDARD)SET, PISTON, RING (STANDARD)
-
13087225 SET, PISTON, RING (OPT) (.010''/.25MM O/S)SET, PISTON, RING (OPT) (.010''/.25MM O/S)
-
13087226 SET, PISTON, RING (OPT) (.020''/.50MM O/S)SET, PISTON, RING (OPT) (.020''/.50MM O/S)
-
23087221 SET,PISTON,STANDARD [STANDARD] (INCL. 2-4)SET,PISTON,STANDARD [STANDARD] (INCL. 2-4)
-
23087222 SET,PISTON (OPT) (.010''/.25MM O/S) (INCL. 2-4)SET,PISTON (OPT) (.010''/.25MM O/S) (INCL. 2-4)
-
23087223 SET,PISTON (OPT) (.020''/.50MM O/S) (INCL. 2-4)SET,PISTON (OPT) (.020''/.50MM O/S) (INCL. 2-4)
-
43085534 CLIPCLIP
-
53080130 KEY WOODRUFFKEY WOODRUFF
-
63081447 KEYKEY
-
73085346 PIN, DOWELPIN, DOWEL
-
83087227 ASSY., CRANKSHAFT [INCL. 7,13-16]ASSY., CRANKSHAFT [INCL. 7,13-16]
-
83085373 CRANKSHAFT #1, MAG SIDECRANKSHAFT #1, MAG SIDE
-
93085024 BALL, STEELBALL, STEEL
-
103085400 BEARING, LARGE ENDBEARING, LARGE END
-
113085376 ROD, CONNECTINGROD, CONNECTING
-
123085341 PIN, CRANKPIN, CRANK
-
133085374 CRANKSHAFT#2, PTO SIDECRANKSHAFT#2, PTO SIDE
-
143085815 BEARING, BALLBEARING, BALL
-
153080676 BEARING, BALLBEARING, BALL
-
163085852 GEAR, BALANCER #1GEAR, BALANCER #1
-
173085404 SHAFT, BALANCERSHAFT, BALANCER
-
183084895 SPACER [0.8]SPACER [0.8]
-
183084896 SPACER [1.0]SPACER [1.0]
-
183084897 SPACER [1.2]SPACER [1.2]
-
193240088 SPACER [0.6]SPACER [0.6]
-
193084892 SPACER [0.8]SPACER [0.8]
-
193084893 SPACER [1.0]SPACER [1.0]
-
193084894 SPACER [1.2]SPACER [1.2]
-
203084882 SPROCKET 1SPROCKET 1
-
213085528 NUT, SLITNUT, SLIT
-
223083904 WASHERWASHER
-
233083905 LOCKNUTLOCKNUT
