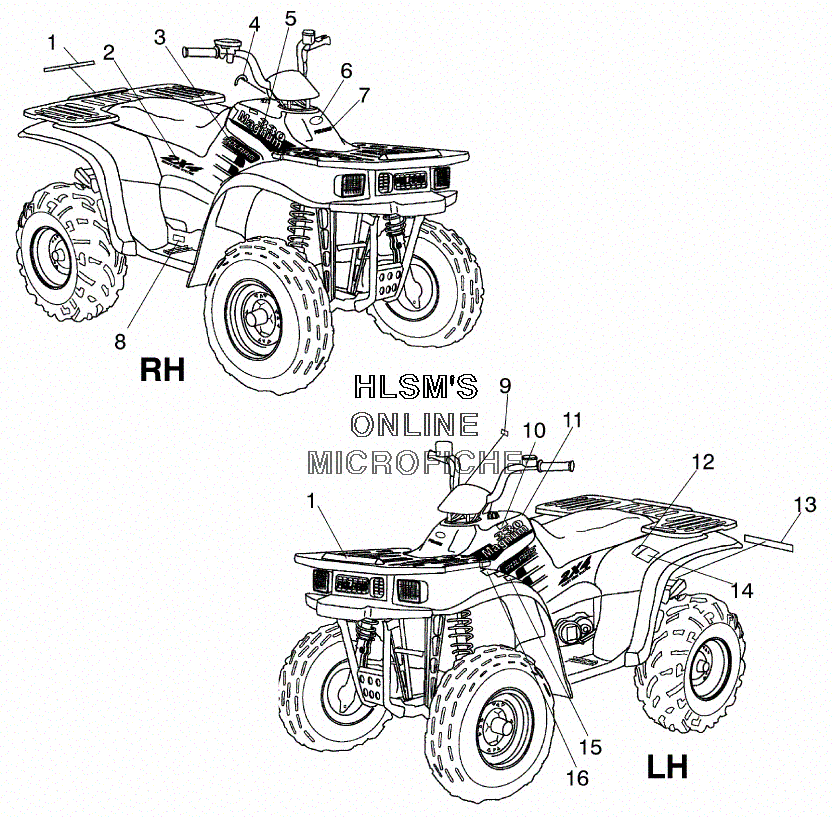

DECALS для Polaris MAGNUM HDS 330 2X4 (A03CB32FC) - 2003 года выпуска
-
№АртикулНазвание
-
17170021 DECAL, WARNINGDECAL, WARNING
-
27170662 DECAL, 2 X 4 SIDE PANEL (LEFT)DECAL, 2 X 4 SIDE PANEL (LEFT)
-
27170663 DECAL, 2 X 4 SIDE PANEL (RIGHT)DECAL, 2 X 4 SIDE PANEL (RIGHT)
-
37170660 DECAL, POLARIS SIDE PANEL (LEFT)DECAL, POLARIS SIDE PANEL (LEFT)
-
37170661 DECAL, POLARIS SIDE PANEL (RIGHT)DECAL, POLARIS SIDE PANEL (RIGHT)
-
47170025 DECAL, IGNITIONDECAL, IGNITION
-
57170746 DECAL, MAGNUM 330 HDS TANKSIDE (LEFT)DECAL, MAGNUM 330 HDS TANKSIDE (LEFT)
-
57170747 DECAL, MAGNUM 330 HDS TANKSIDE (RIGHT) (FC)DECAL, MAGNUM 330 HDS TANKSIDE (RIGHT) (FC)
-
67078465 LOGO, POLARIS STARLOGO, POLARIS STAR
-
77079916 DECAL, ''POLARIS'' COVER (FRONT/ BLACK)DECAL, ''POLARIS'' COVER (FRONT/ BLACK)
-
87078577 DECAL, DRAIN RECOILDECAL, DRAIN RECOIL
-
97079672 DECAL, AUX. FOOT BRAKEDECAL, AUX. FOOT BRAKE
-
107079906 DECAL, OVERRIDE SWITCH 2 WD (WHITE)DECAL, OVERRIDE SWITCH 2 WD (WHITE)
-
117078253 DECAL, AGE WARNINGDECAL, AGE WARNING
-
127077920 DECAL, PASSENGER WARNINGDECAL, PASSENGER WARNING
-
137079960 DECAL, ''POLARIS'' (REAR/ BLACK)DECAL, ''POLARIS'' (REAR/ BLACK)
-
147079086 DECAL, TIRE PRESSUREDECAL, TIRE PRESSURE
-
157079085 DECAL, DISCRETION WARNING ATVDECAL, DISCRETION WARNING ATV
-
167079083 DECAL, WARNING GENERALDECAL, WARNING GENERAL
