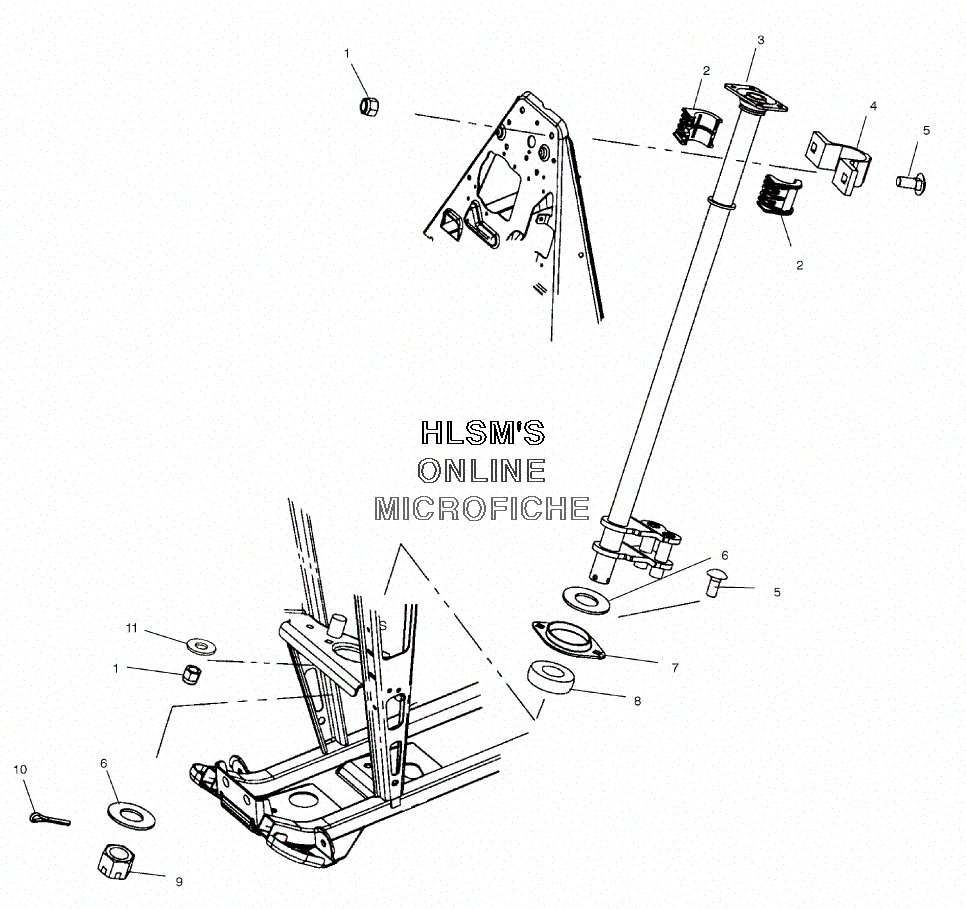

STEERING POST для Polaris MAGNUM HDS 330 2X4 (A03CB32FC) - 2003 года выпуска
-
№АртикулНазвание
-
17542324 NUT, NYLOKNUT, NYLOK
-
25433866 BUSHING, STEERING (UPPER) (1 INCH)BUSHING, STEERING (UPPER) (1 INCH)
-
31013927-067 WELD, STEERING POST 2 X 4 (BLACK)WELD, STEERING POST 2 X 4 (BLACK)
-
45246732 BRACKET, STEERING BUSHING (UPPER)BRACKET, STEERING BUSHING (UPPER)
-
57512377 BOLT, CARRIAGEBOLT, CARRIAGE
-
67556162 BUSHINGBUSHING
-
75222393 FLANGETTE (2, BOLT)FLANGETTE (2, BOLT)
-
83514352 BEARINGBEARING
-
97547158 NUT, SLOTTED HEXNUT, SLOTTED HEX
-
107661633 PIN, COTTERPIN, COTTER
-
117558402 WASHER FLATWASHER FLAT
