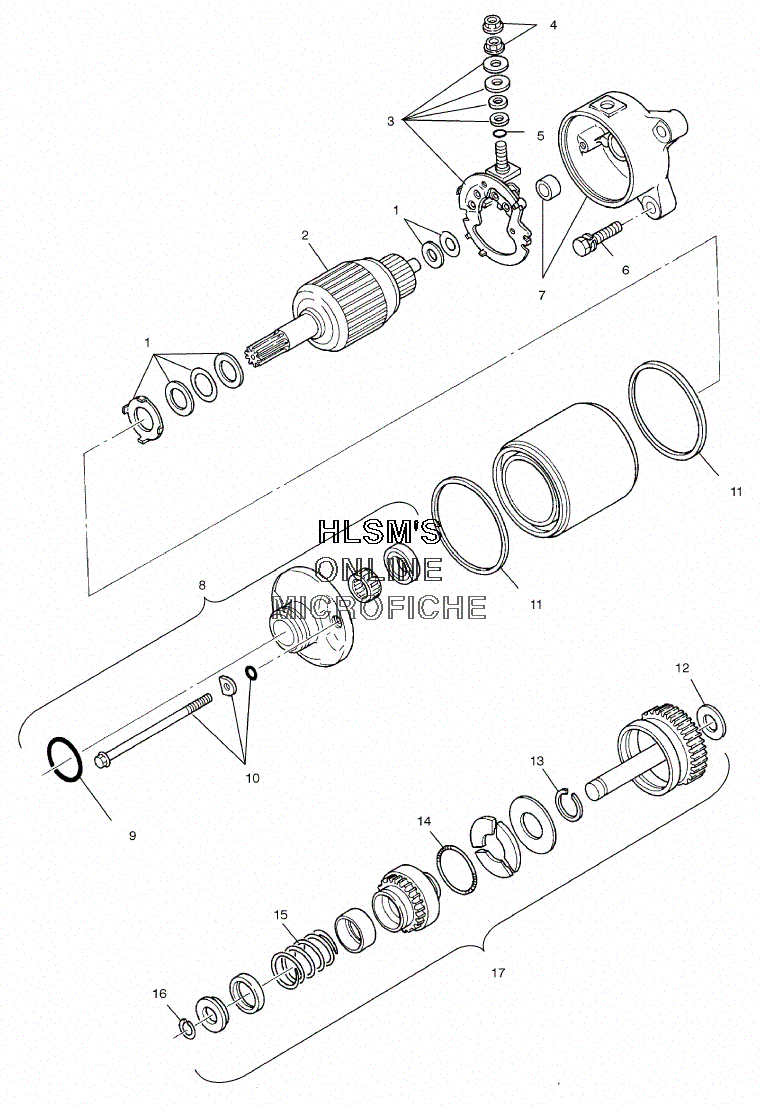

STARTING MOTOR для Polaris MAGNUM HDS 330 2X4 (A03CB32FC) - 2003 года выпуска
-
№АртикулНазвание
-
13084982 WASHER SETWASHER SET
-
23085353 ARMATURE ASSY.ARMATURE ASSY.
-
33084406 BRUSH, COMPL.2, POLEBRUSH, COMPL.2, POLE
-
43083649 NUT, FLANGENUT, FLANGE
-
53084408 O-RINGO-RING
-
63082038 BOLT AND WASHER ASSY.BOLT AND WASHER ASSY.
-
73085034 BRACKET ASSY. (REAR)BRACKET ASSY. (REAR)
-
83085033 BRACKET ASSY. (FRONT) (INCL. 9)BRACKET ASSY. (FRONT) (INCL. 9)
-
93240114 O-RINGO-RING
-
103084983 BOLT, SET ASSY. (INCL. 5)BOLT, SET ASSY. (INCL. 5)
-
113084405 RING, RUBBERRING, RUBBER
-
123083737 WASHERWASHER
-
133084412 CLIPCLIP
-
143084411 SPRING, WEIGHTSPRING, WEIGHT
-
153084410 SPRING, RETURNSPRING, RETURN
-
163084409 CLIPCLIP
-
173087030 GEAR SHAFT, ASSY. (INCL. 12, 16)GEAR SHAFT, ASSY. (INCL. 12, 16)
-
173084981 MOTOR, STARTING (INCL. 1, 5, 7, 11)MOTOR, STARTING (INCL. 1, 5, 7, 11)
