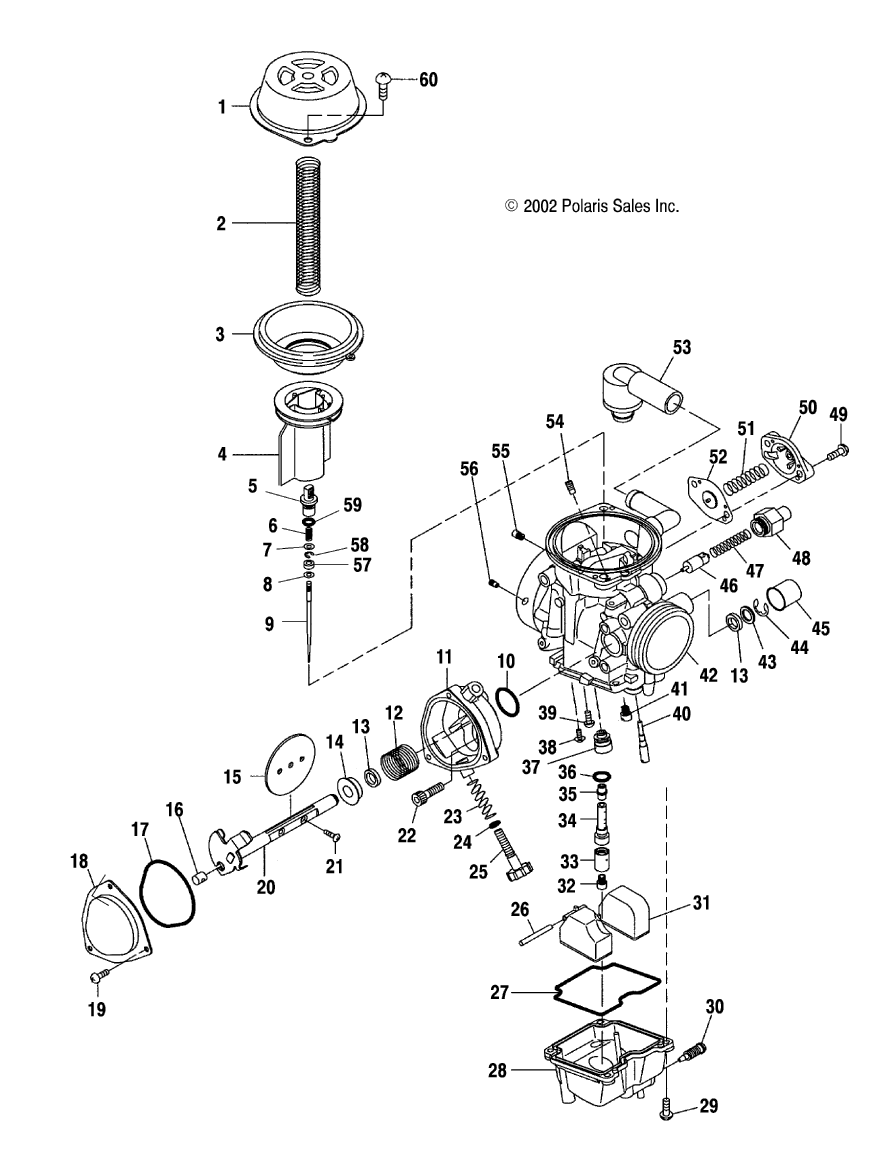

CARBURETOR для Polaris PREDATOR 500 (A03GJ50AA) - 2003 года выпуска
-
№АртикулНазвание
-
13131485 COVER, DIAPHRAGMCOVER, DIAPHRAGM
-
23131478 SPRINGSPRING
-
33131479 DIAPHRAGMDIAPHRAGM
-
43131480 VALVE, PISTONVALVE, PISTON
-
53131477 HOLDERHOLDER
-
63131481 SPRINGSPRING
-
73131482 WASHERWASHER
-
83131483 WASHERWASHER
-
93131484 JET, NEEDLEJET, NEEDLE
-
103130928 O-RINGO-RING
-
113131502 CASECASE
-
123130927 SPRINGSPRING
-
133130515 SEALSEAL
-
143130932 RINGRING
-
153131476 THROTTLE VALVE #105THROTTLE VALVE #105
-
163130543 GUIDE, CABLEGUIDE, CABLE
-
173131294 O-RINGO-RING
-
183130930 COVERCOVER
-
193131512 SCREWSCREW
-
203131500 THROTTLE SHAFTTHROTTLE SHAFT
-
213131475 SCREWSCREW
-
223131503 BOLTBOLT
-
233130010 SPRING, THROTTLE ADJUSTERSPRING, THROTTLE ADJUSTER
-
243131501 O-RINGO-RING
-
253131511 SCREW, ADJUSTSCREW, ADJUST
-
263130043 PIN, FLOATPIN, FLOAT
-
273131494 O-RINGO-RING
-
283131493 BODY, FLOATBODY, FLOAT
-
293131509 SCREWSCREW
-
303130521 SCREWSCREW
-
313131492 FLOAT-AFLOAT-A
-
323131489 MAIN JET #150MAIN JET #150
-
333131490 RINGRING
-
343131491 HOLDER, JETHOLDER, JET
-
353131496 JET, NEEDLEJET, NEEDLE
-
363140053 O-RINGO-RING
-
373131495 VALVE, NEEDLEVALVE, NEEDLE
-
383131057 SCREWSCREW
-
393130592 SCREWSCREW
-
403131504 JET, PILOT 45JET, PILOT 45
-
413131488 JET #42.5JET #42.5
-
423131513 CARBURETOR ASSY. (INCL. ALL)CARBURETOR ASSY. (INCL. ALL)
-
433130517 WASHERWASHER
-
443130518 E-RINGE-RING
-
453130519 CAPCAP
-
463130593 PLUNGER ASSY.PLUNGER ASSY.
-
473130538 SPRINGSPRING
-
483131499 HOLDER, GUIDEHOLDER, GUIDE
-
493131506 SCREWSCREW
-
503131505 COVERCOVER
-
513131507 SPRINGSPRING
-
523131508 DIAPHRAGM ASSY.DIAPHRAGM ASSY.
-
533131510 FILTERFILTER
-
543130619 JET, AIR (PAJ1)JET, AIR (PAJ1)
-
553131497 MAIN JET #110MAIN JET #110
-
563131498 JET #120JET #120
-
573130915 RINGRING
-
583130868 E-RINGE-RING
-
593140049 RINGRING
-
603130821 SCREWSCREW
