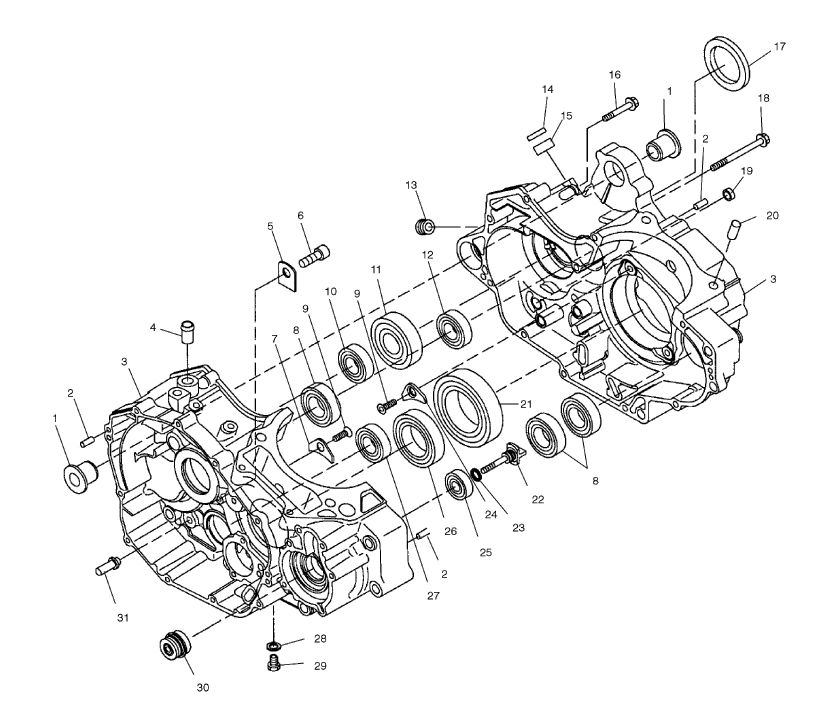

CRANKCASE для Polaris PREDATOR 500 (A03GJ50AA) - 2003 года выпуска
-
№АртикулНазвание
-
13087930 COLLARCOLLAR
-
23080103 PIN, DOWELPIN, DOWEL
-
33087923 CRANKCASE ASSY. (INCL. ALL LESS 16,18,28,29)CRANKCASE ASSY. (INCL. ALL LESS 16,18,28,29)
-
43085525 PIPE, AIR BREATHERPIPE, AIR BREATHER
-
53088138 PLATE, STOPPERPLATE, STOPPER
-
63088050 BOLT, SOCKET HEADBOLT, SOCKET HEAD
-
73087939 PLATE (PTO SIDE)PLATE (PTO SIDE)
-
83088137 BEARING, BALLBEARING, BALL
-
93087932 SCREW, COUNTER SUNKSCREW, COUNTER SUNK
-
103087935 BEARING, BALLBEARING, BALL
-
113087929 BEARING, BALLBEARING, BALL
-
123087928 BEARING, BALLBEARING, BALL
-
133084862 PLUG, BLINDPLUG, BLIND
-
143087926 SEAL, OILSEAL, OIL
-
153087925 BEARING, RELEASEBEARING, RELEASE
-
163086412 BOLT, FLANGEBOLT, FLANGE
-
173086510 SEAL, OIL CRANKCASESEAL, OIL CRANKCASE
-
183087940 BOLT, FLANGEBOLT, FLANGE
-
193087927 SEAL, OILSEAL, OIL
-
203087266 KNOCK, PIPEKNOCK, PIPE
-
213087924 BEARING, BALLBEARING, BALL
-
223087936 WATER PUMP SHAFT ASSY. (INCL. 23,25)WATER PUMP SHAFT ASSY. (INCL. 23,25)
-
233087938 O-RINGO-RING
-
243087931 PLATE (MAG SIDE)PLATE (MAG SIDE)
-
253087937 BEARING, BALLBEARING, BALL
-
263087933 BEARING, ROLLERBEARING, ROLLER
-
273087934 BEARING, BALLBEARING, BALL
-
283082956 GASKETGASKET
-
293083453 PLUGPLUG
-
303084837 SEAL, MECHANICALSEAL, MECHANICAL
-
313086195 PIN STOPPERPIN STOPPER
