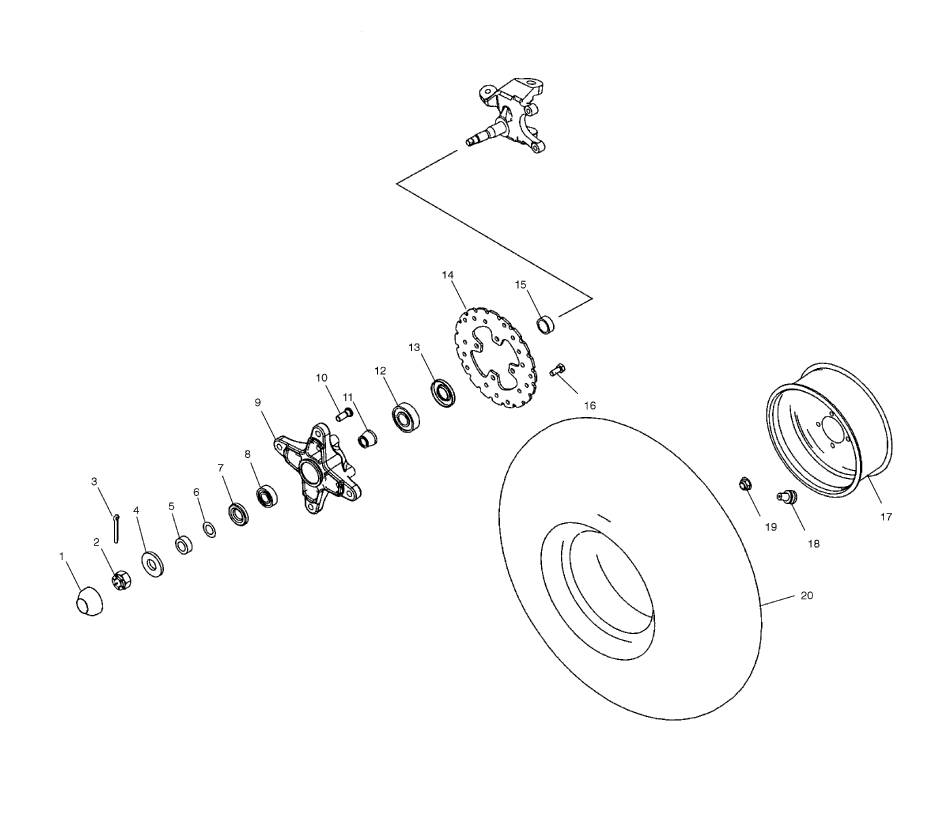

WHEEL - FRONT W/ HUB для Polaris PREDATOR 500 (A03GJ50AA) - 2003 года выпуска
-
№АртикулНазвание
-
15411164 COVER, DUST HUBCOVER, DUST HUB
-
27542712 NUTNUT
-
37661401 PIN,COTTERPIN,COTTER
-
47555721 WASHERWASHER
-
55133342 SPACER, SPINDLE (OUTER)SPACER, SPINDLE (OUTER)
-
67555919 WASHER (IF BUILT BEFORE 4/14/03)WASHER (IF BUILT BEFORE 4/14/03)
-
73610090 SEAL, LIPSEAL, LIP
-
83514395 BEARING, BALLBEARING, BALL
-
95133294-293 HUB, WHEEL (FRONT/MACH INDY RED)HUB, WHEEL (FRONT/MACH INDY RED)
-
97515523 STUD (IF BUILT BEFORE 2/17/03)STUD (IF BUILT BEFORE 2/17/03)
-
107515513 STUD (IF BUILT AFTER 2/17/03)STUD (IF BUILT AFTER 2/17/03)
-
115133343 SPACER, TAPEREDSPACER, TAPERED
-
123513519 BEARING, BALLBEARING, BALL
-
133610093 SEAL, LIPSEAL, LIP
-
145246039 DISC, BRAKEDISC, BRAKE
-
155133341 SPACER, SPINDLE INNERSPACER, SPINDLE INNER
-
167512325 BOLTBOLT
-
171520608 RIM, FRONTRIM, FRONT
-
181525017 VALVE, RIMVALVE, RIM
-
197542459 NUT, FLANGEDNUT, FLANGED
-
205412158 TIRE, FRONTTIRE, FRONT
