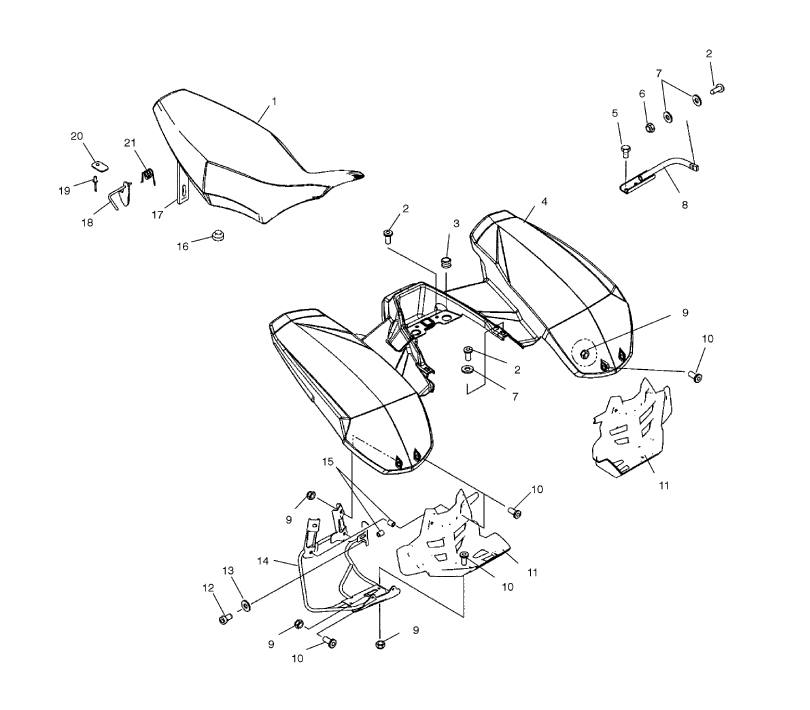

FENDER - REAR W/ SEAT для Polaris PREDATOR 500 (A03GJ50AB) - 2003 года выпуска`
-
№АртикулНазвание
-
181013941 SEAT LATCHSEAT LATCH
-
12632490 SEAT ASSY.SEAT ASSY.
-
12632489 COVER, SEATCOVER, SEAT
-
27518196 SCREWSCREW
-
35411042 GROMMETGROMMET
-
45434437-177 REAR CAB (BLACK) (IF BUILT BEFORE 5/06/03)REAR CAB (BLACK) (IF BUILT BEFORE 5/06/03)
-
45435231-177 CAB (REAR/BLACK) (IF BUILT AFTER 5/06/03)CAB (REAR/BLACK) (IF BUILT AFTER 5/06/03)
-
57515199 SCREWSCREW
-
67541925 NUT, NYLOKNUT, NYLOK
-
77555792 WASHERWASHER
-
81014170-385 REAR CAB SUPPORT (LEFT) (IF BUILT BEFORE 5/27/03)REAR CAB SUPPORT (LEFT) (IF BUILT BEFORE 5/27/03)
-
81014171-385 REAR CAB SUPPORT (RIGHT) (IF BUILT BEFORE 5/27/03)REAR CAB SUPPORT (RIGHT) (IF BUILT BEFORE 5/27/03)
-
81014603-385 REAR CAB SUPPORT (LEFT) (IF BUILT AFTER 5/27/03)REAR CAB SUPPORT (LEFT) (IF BUILT AFTER 5/27/03)
-
81014604-385 REAR CAB SUPPORT (RIGHT) (IF BUILT AFTER 5/27/03)REAR CAB SUPPORT (RIGHT) (IF BUILT AFTER 5/27/03)
-
97542153 NUT, NYLOKNUT, NYLOK
-
107512297 SCREWSCREW
-
115434432-070 POCKET, HEEL (LEFT/BLACK)POCKET, HEEL (LEFT/BLACK)
-
115434433-070 POCKET, HEEL (RIGHT/BLACK)POCKET, HEEL (RIGHT/BLACK)
-
127515136 SCREW (IF BUILT BEFORE 9/20/02)SCREW (IF BUILT BEFORE 9/20/02)
-
127512297 SCREW (IF BUILT AFTER 9/20/02)SCREW (IF BUILT AFTER 9/20/02)
-
137552604 WASHER (IF BUILT BEFORE 9/20/02)WASHER (IF BUILT BEFORE 9/20/02)
-
137552801 WASHER, SPRING LOCK (IF BUILT AFTER 9/20/02)WASHER, SPRING LOCK (IF BUILT AFTER 9/20/02)
-
141013991-067 SUPPORT, HEEL POCKET (LEFT/BLACK) (IF BUILT BEFORE 1/20/03)SUPPORT, HEEL POCKET (LEFT/BLACK) (IF BUILT BEFORE 1/20/03)
-
141013992-067 SUPPORT, HEEL POCKET (RIGHT/BLACK) (IF BUILT BEFORE 1/20/03)SUPPORT, HEEL POCKET (RIGHT/BLACK) (IF BUILT BEFORE 1/20/03)
-
141014371-067 SUPPORT, HEEL POCKET (LEFT/BLACK) (IF BUILT AFTER 1/20/03)SUPPORT, HEEL POCKET (LEFT/BLACK) (IF BUILT AFTER 1/20/03)
-
141014372-067 SUPPORT, HEEL POCKET (RIGHT/BLACK) (IF BUILT AFTER 1/20/03)SUPPORT, HEEL POCKET (RIGHT/BLACK) (IF BUILT AFTER 1/20/03)
-
157547069 NUTSERT, HEXNUTSERT, HEX
-
165412067 BUMPER, RUBBERBUMPER, RUBBER
-
175431501 STRAPSTRAP
-
197621403 BLIND RIVETBLIND RIVET
-
205211033 BRACKET, LEVER RETAINERBRACKET, LEVER RETAINER
-
217041607 SPRING, LATCH LIGHTSPRING, LATCH LIGHT
