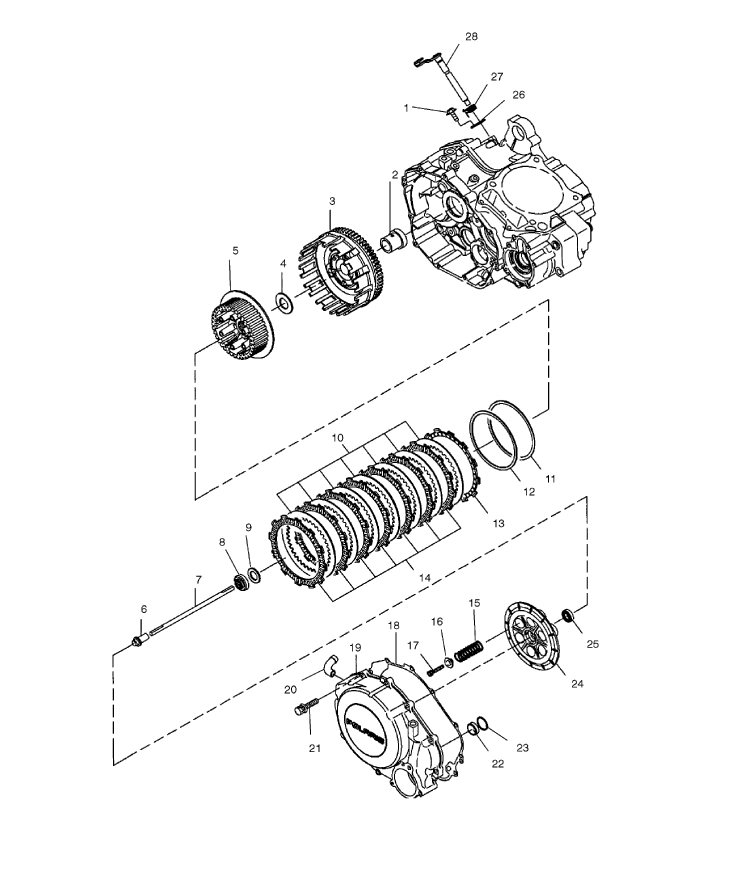

GEARCASE - CLUTCH для Polaris PREDATOR 500 (A03GJ50AB) - 2003 года выпуска
-
№АртикулНазвание
-
13084877 BOLT, FLANGEBOLT, FLANGE
-
23088077 COLLAR, DISTANCECOLLAR, DISTANCE
-
33088174 OUTER CLUTCH ASSY.OUTER CLUTCH ASSY.
-
43088186 WASHER,THRUSTWASHER,THRUST
-
53088180 CENTER CLUTCH ASSY.CENTER CLUTCH ASSY.
-
63088081 PUSHERPUSHER
-
73088080 ROD, PUSHROD, PUSH
-
83086285 NUT, LOCKNUT, LOCK
-
93086286 WASHER, LOCKWASHER, LOCK
-
103088184 PLATE, CLUTCHPLATE, CLUTCH
-
113088181 SEAT, JUDDER SPRINGSEAT, JUDDER SPRING
-
123088182 SPRING, JUDDERSPRING, JUDDER
-
133088185 DISK B, CLUTCH FRICTIONDISK B, CLUTCH FRICTION
-
143088183 DISK A, CLUTCH FRICTIONDISK A, CLUTCH FRICTION
-
153088177 SPRING, CLUTCHSPRING, CLUTCH
-
163088176 WASHER, CLUTCH SPRINGWASHER, CLUTCH SPRING
-
173088175 BOLTBOLT
-
183088074 GASKET, CLUTCHGASKET, CLUTCH
-
193088071 CLUTCH COVER ASSY. (INCL. 20,22,23)CLUTCH COVER ASSY. (INCL. 20,22,23)
-
203085850 PIPE ASSY.PIPE ASSY.
-
213084874 BOLT, FLANGEBOLT, FLANGE
-
223088072 CRANK, OIL SEALCRANK, OIL SEAL
-
233088073 SNAP RING, INNERSNAP RING, INNER
-
243088178 DISK, CLUTCH PRESSUREDISK, CLUTCH PRESSURE
-
253088179 BEARING, BALLBEARING, BALL
-
263088082 PLATE, RELEASEPLATE, RELEASE
-
273088079 SPRING, RELEASESPRING, RELEASE
-
283088078 RELEASE SHAFT ASSY.RELEASE SHAFT ASSY.
-
283088075 CLUTCH ASSY. (INCL. 3-5,10-17,24,25)CLUTCH ASSY. (INCL. 3-5,10-17,24,25)
