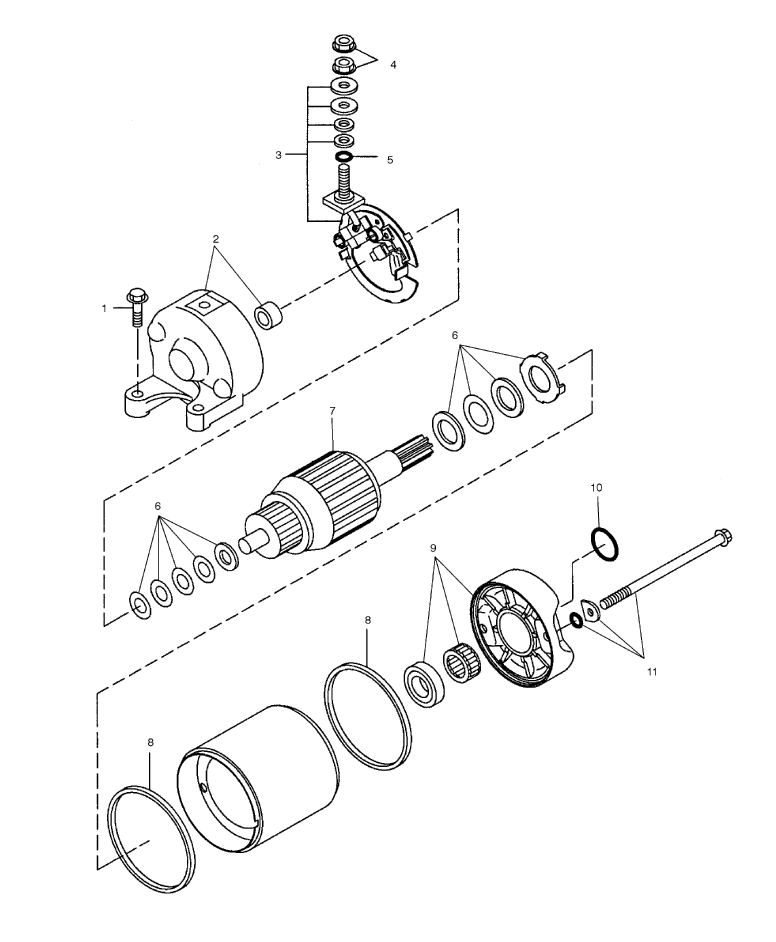

STARTING MOTOR для Polaris PREDATOR 500 (A03GJ50AB) - 2003 года выпуска
-
№АртикулНазвание
-
13084874 BOLT, FLANGEBOLT, FLANGE
-
23088167 BRACKET REAR ASSY.BRACKET REAR ASSY.
-
33088169 CARBON BRUSH SETCARBON BRUSH SET
-
43088166 NUT, FLANGENUT, FLANGE
-
53088165 O-RINGO-RING
-
63088163 WASHER SETWASHER SET
-
73088168 ARMATURE ASSY.ARMATURE ASSY.
-
83088162 RING, RUBBERRING, RUBBER
-
93088069 STARTING MOTOR ASSY. (INCL. 2-11)STARTING MOTOR ASSY. (INCL. 2-11)
-
93088160 BRACKET ASSY. (FRONT) (INCL. 10)BRACKET ASSY. (FRONT) (INCL. 10)
-
103088161 O-RINGO-RING
-
113088164 BOLT ASSY., SET (INCL. 5)BOLT ASSY., SET (INCL. 5)
