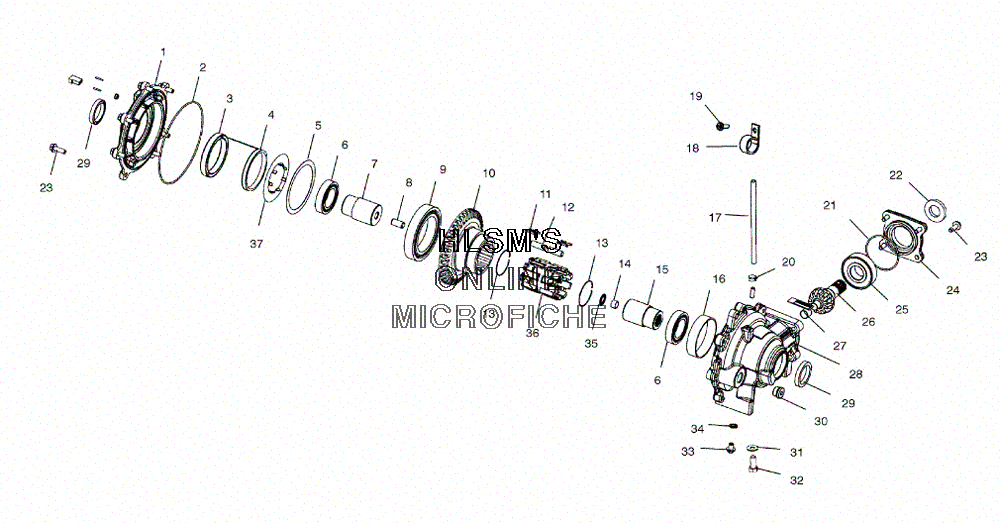

DIFFERENTIAL - FRONT для Polaris SPORTSMAN 700 4X4 (A03CH68AC) (NBU NO SHADOW) - 2003 года выпуска
-
№АртикулНазвание
-
53233925 SHIM SET KIT (INCL. SHIMS)SHIM SET KIT (INCL. SHIMS)
-
63233926 BEARING, ROLLER BALLBEARING, ROLLER BALL
-
83233928 PIN, DOWEL (1/2''DIA X 1'')PIN, DOWEL (1/2''DIA X 1'')
-
93233932 BEARING, ROLLER BALLBEARING, ROLLER BALL
-
103233933 CLUTCH HSG/ RING GEARCLUTCH HSG/ RING GEAR
-
123233957 ROLLER, KITROLLER, KIT
-
133233934 RING, RETAINING WIRE FORMRING, RETAINING WIRE FORM
-
178450003-1525 FUEL LINE (1/4 ID) (1525 CM.) (OPT.)FUEL LINE (1/4 ID) (1525 CM.) (OPT.)
-
187080693 CLAMP, HOSE NYLONCLAMP, HOSE NYLON
-
197512024 SCREWSCREW
-
207080307 CLAMP, HOSECLAMP, HOSE
-
233233955 BOLT, KITBOLT, KIT
-
243233947 COVER, INPUT MACHCOVER, INPUT MACH
-
253233945 BEARING, ROLLER BALLBEARING, ROLLER BALL
-
263233944 SHAFT, PINION (6.75DP) (11 TEETH)SHAFT, PINION (6.75DP) (11 TEETH)
-
303233942 PLUG, OIL FILL HOLLOW (3/4-16)PLUG, OIL FILL HOLLOW (3/4-16)
-
317552603 WASHER, SPRING LOCKWASHER, SPRING LOCK
-
327512492 SCREWSCREW
-
353233929 BEARING, NEEDLE ROLLER THRUSTBEARING, NEEDLE ROLLER THRUST
-
373233924 ARMATURE, PLATEARMATURE, PLATE
-
371341344 GEARCASE (FRONT) (INCL. 1-16, 21-30, 33-37)GEARCASE (FRONT) (INCL. 1-16, 21-30, 33-37)
-
373233950 GEARCASE ASSY. (INCL. 16, 27, 28)GEARCASE ASSY. (INCL. 16, 27, 28)
-
373233951 DRAIN PLUG ASSY. (INCL. 33, 34)DRAIN PLUG ASSY. (INCL. 33, 34)
-
373233998 COVER PLATE ASSY. (INCL. 1, 3, 4)COVER PLATE ASSY. (INCL. 1, 3, 4)
-
373233953 RACE/OUTPUT HUB ASSY. (INCL. 7, 14, 15, 35)RACE/OUTPUT HUB ASSY. (INCL. 7, 14, 15, 35)
-
373233954 CLUTCH ASSY. (INCL. 9-13, 36)CLUTCH ASSY. (INCL. 9-13, 36)
-
373233956 MINOR REPAIR KIT (INCL. 2, 21, 22, 29)MINOR REPAIR KIT (INCL. 2, 21, 22, 29)
-
373233949 ROLL CAGE KIT (INCL. 11, 36)ROLL CAGE KIT (INCL. 11, 36)
