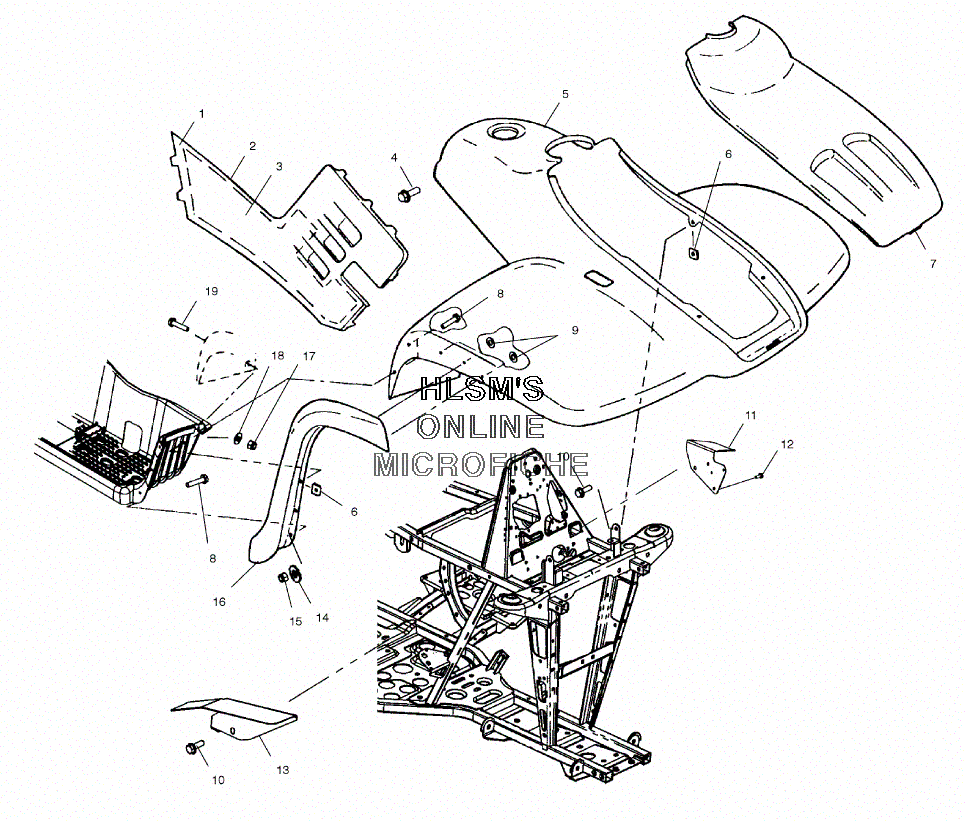

FENDER - FRONT W/ SIDE PANELS для Polaris SPORTSMAN 700 4X4 (A03CH68AC) (NBU NO SHADOW) - 2003 года выпуска
-
№АртикулНазвание
-
15811491 FOIL, SIDEPANEL (RIGHT)FOIL, SIDEPANEL (RIGHT)
-
25434917-419A PANEL, SIDE LEFT (N.B.U.NO SHADOW)PANEL, SIDE LEFT (N.B.U.NO SHADOW)
-
22632696-419 PANEL, FOIL ASSY. RIGHT (N.B.U. NO SHADOW)PANEL, FOIL ASSY. RIGHT (N.B.U. NO SHADOW)
-
35812326 PANEL, FOIL SIDE (RIGHT)PANEL, FOIL SIDE (RIGHT)
-
47512232 BOLTBOLT
-
52632750-419 CAB, SVC ASSY. FRONT (N.B.U. NO SHADOW)CAB, SVC ASSY. FRONT (N.B.U. NO SHADOW)
-
67670057 NUT, SPEEDNUT, SPEED
-
75434857-419A SUBSTITUTED BY 5435139-460ASUBSTITUTED BY 5435139-460A
-
87517312 SCREWSCREW
-
97670135 NUT, SPEED 3/16NUT, SPEED 3/16
-
107517386 SCREWSCREW
-
115246872 GUARD, SPLASH PUMP MOUNT (LEFT)GUARD, SPLASH PUMP MOUNT (LEFT)
-
127517867 SCREWSCREW
-
135246021-067 GUARD, SPLASH (RIGHT/BLACK)GUARD, SPLASH (RIGHT/BLACK)
-
147555931 WASHERWASHER
-
157542122 NUT, NYLOKNUT, NYLOK
-
165431798-070 GUARD, MUD (FRONT/LEFT/BLACK)GUARD, MUD (FRONT/LEFT/BLACK)
-
165431799-070 GUARD, MUD (FRONT/RIGHT/BLACK)GUARD, MUD (FRONT/RIGHT/BLACK)
-
177541925 NUT, NYLOKNUT, NYLOK
-
187555792 WASHERWASHER
-
197512085 SCREWSCREW
