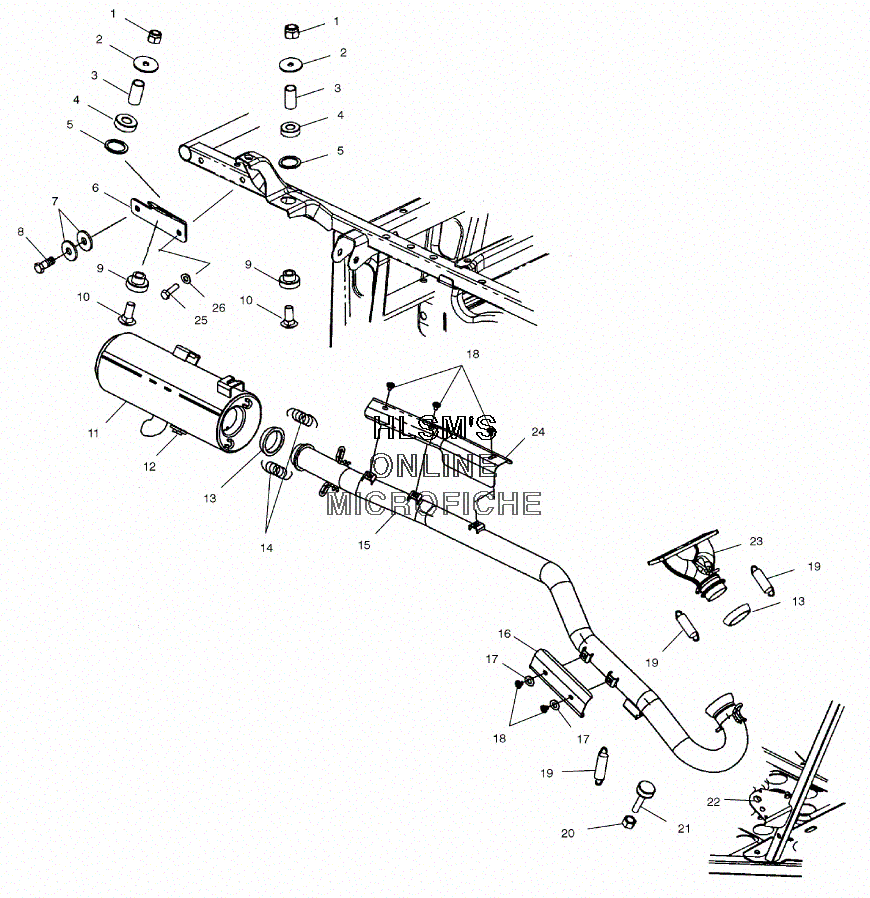

EXHAUST SYSTEM для Polaris SPORTSMAN 700 4X4 (A03CH68AC) (NBU NO SHADOW) - 2003 года выпуска
-
№АртикулНазвание
-
17542324 NUT, NYLOKNUT, NYLOK
-
27555716 WASHERWASHER
-
35010192 BUSHING, RESONATOR MOUNTBUSHING, RESONATOR MOUNT
-
45410436 WASHER, RUBBERWASHER, RUBBER
-
57555863 BUSHINGBUSHING
-
65241663 BRACKET, SILENCER FRAMEBRACKET, SILENCER FRAME
-
77558402 WASHER, FLATWASHER, FLAT
-
87512329 BOLTBOLT
-
95410241 DAMPENERDAMPENER
-
107515316 BOLTBOLT
-
111261223-029 WELD, EXHAUST SILENCER 700 (BLACK)WELD, EXHAUST SILENCER 700 (BLACK)
-
127512666 BOLTBOLT
-
133610047 SEAL, EXHAUST SOCKETSEAL, EXHAUST SOCKET
-
147041804 SPRING, EXHAUSTSPRING, EXHAUST
-
151261242-029 WELD, EXHAUST PIPE (1.75 OD) (BLACK)WELD, EXHAUST PIPE (1.75 OD) (BLACK)
-
165244014 SHIELD, HEAT EXHAUSTSHIELD, HEAT EXHAUST
-
177555935 WASHERWASHER
-
187515197 SCREWSCREW
-
197041789 SPRING, EXHAUSTSPRING, EXHAUST
-
207542301 NUT HEXAGONNUT HEXAGON
-
213110064 MOUNT, TORQUE STOPMOUNT, TORQUE STOP
-
227547101 NUTSERT, 5/16-18 (.027-.150)NUTSERT, 5/16-18 (.027-.150)
-
231261077-029 WELD, MANIFOLD TWIN (BLACK)WELD, MANIFOLD TWIN (BLACK)
-
245245502 SHIELD, HEAT EXHAUSTSHIELD, HEAT EXHAUST
-
257512329 BOLTBOLT
-
267558402 WASHER, FLATWASHER, FLAT
