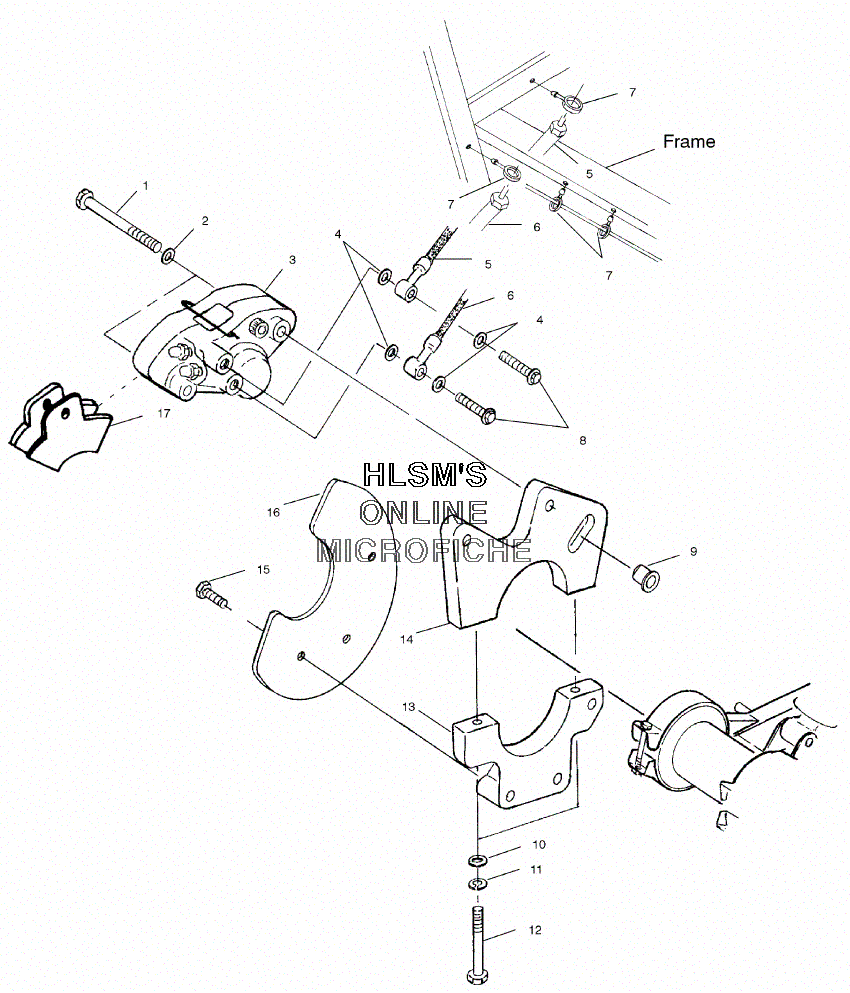

BRAKE - REAR CALIPER для Polaris TRAIL BLAZER 400 (A03BA38CA) - 2003 года выпуска
-
№АртикулНазвание
-
17517231 SCREWSCREW
-
27555806 WASHER, FLATWASHER, FLAT
-
31910691 CALIPER, DH2P W/ INS PADS ASSY.CALIPER, DH2P W/ INS PADS ASSY.
-
37080352 SCREW, BLEEDERSCREW, BLEEDER
-
31930665 PISTON AND SEAL KITPISTON AND SEAL KIT
-
45410988 SEALSEAL
-
51910504 LINE, BRAKE (JB TO REAR)LINE, BRAKE (JB TO REAR)
-
61910506 LINE, BRAKE (FRONT M/C TO REAR)LINE, BRAKE (FRONT M/C TO REAR)
-
77670102 CLIPCLIP
-
81910499 BOLT, BANJO (10MM X 1.00)BOLT, BANJO (10MM X 1.00)
-
95131759 BUSHING, CALIPER MOUNTBUSHING, CALIPER MOUNT
-
107558402 WASHER FLATWASHER FLAT
-
117552901 WASHER, SPRING LOCKWASHER, SPRING LOCK
-
127512312 BOLTBOLT
-
135131786 MT, CALIPER AXLE (LOWER)MT, CALIPER AXLE (LOWER)
-
145131787 MOUNT, CALIPER AXLE (UPPER)MOUNT, CALIPER AXLE (UPPER)
-
157512325 BOLTBOLT
-
165242291-067 GUARD, BRAKEDISC AXLE (REAR/ BLACK)GUARD, BRAKEDISC AXLE (REAR/ BLACK)
-
172201189 BRAKEPAD, AXLE WW KIT (REAR) (INCL. SPACER AND PIN)BRAKEPAD, AXLE WW KIT (REAR) (INCL. SPACER AND PIN)
