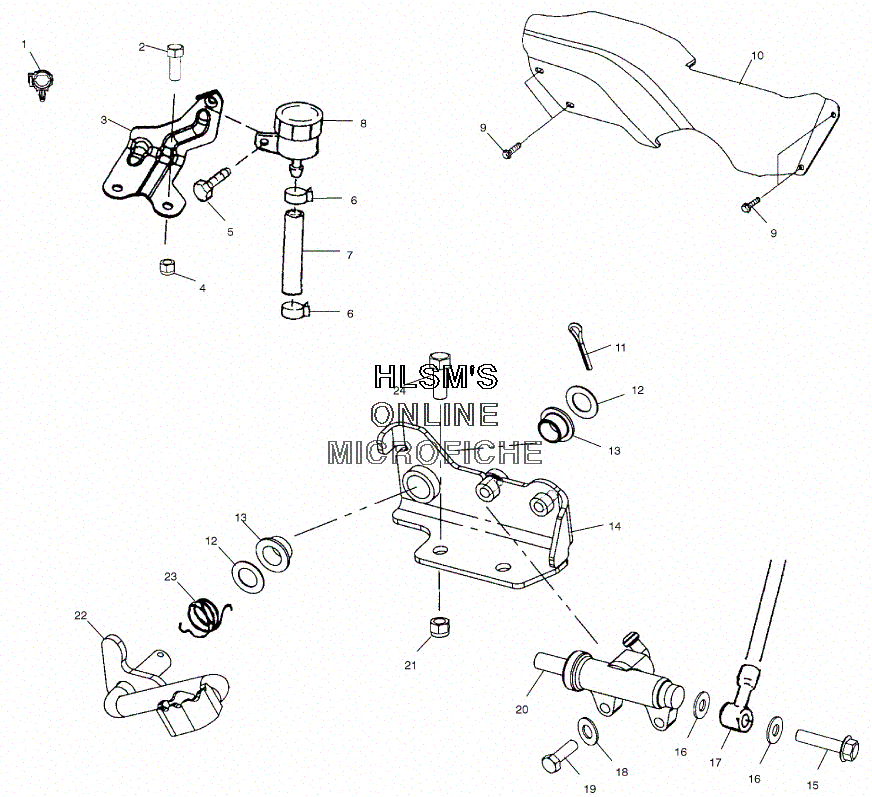

BRAKE - REAR MASTER CYLINDER для Polaris TRAIL BLAZER 400 (A03BA38CA) - 2003 года выпуска
-
№АртикулНазвание
-
17670102 CLIPCLIP
-
27512113 BOLTBOLT
-
35244091-067 BRACKET, RESERVOIR MOUNT (BLACK)BRACKET, RESERVOIR MOUNT (BLACK)
-
47542122 NUT, NYLOKNUT, NYLOK
-
57517386 SCREWSCREW
-
67080003 CLAMP, HOSECLAMP, HOSE
-
71910404 HOSE, RESERVOIR (1/4ID) (4.75 IN)HOSE, RESERVOIR (1/4ID) (4.75 IN)
-
81930854 RESERVOIR BRAKE ASSY. (REAR)RESERVOIR BRAKE ASSY. (REAR)
-
97517916 SCREWSCREW
-
105433457 GUARD, PROP SHAFT SIDEGUARD, PROP SHAFT SIDE
-
117661401 COTTER PINCOTTER PIN
-
127555919 WASHERWASHER
-
135431107 BUSHING, PEDAL PIVOTBUSHING, PEDAL PIVOT
-
141910375-067 MOUNT, BRAKE CDS (BLACK)MOUNT, BRAKE CDS (BLACK)
-
151910499 BOLT-BANJO (10MM X 1.00)BOLT-BANJO (10MM X 1.00)
-
165410988 SEALSEAL
-
187552801 WASHER, SPRING LOCKWASHER, SPRING LOCK
-
197515179 SCREWSCREW
-
201910311 BRAKE MASTER CYLINDER FOOT BANJOBRAKE MASTER CYLINDER FOOT BANJO
-
217542324 NUT, NYLOKNUT, NYLOK
-
221910377-067 BRAKE ROD, CDS GEN 3 (BLACK)BRAKE ROD, CDS GEN 3 (BLACK)
-
237041750 SPRING, TORSION BRAKESPRING, TORSION BRAKE
-
247515321 BOLTBOLT
