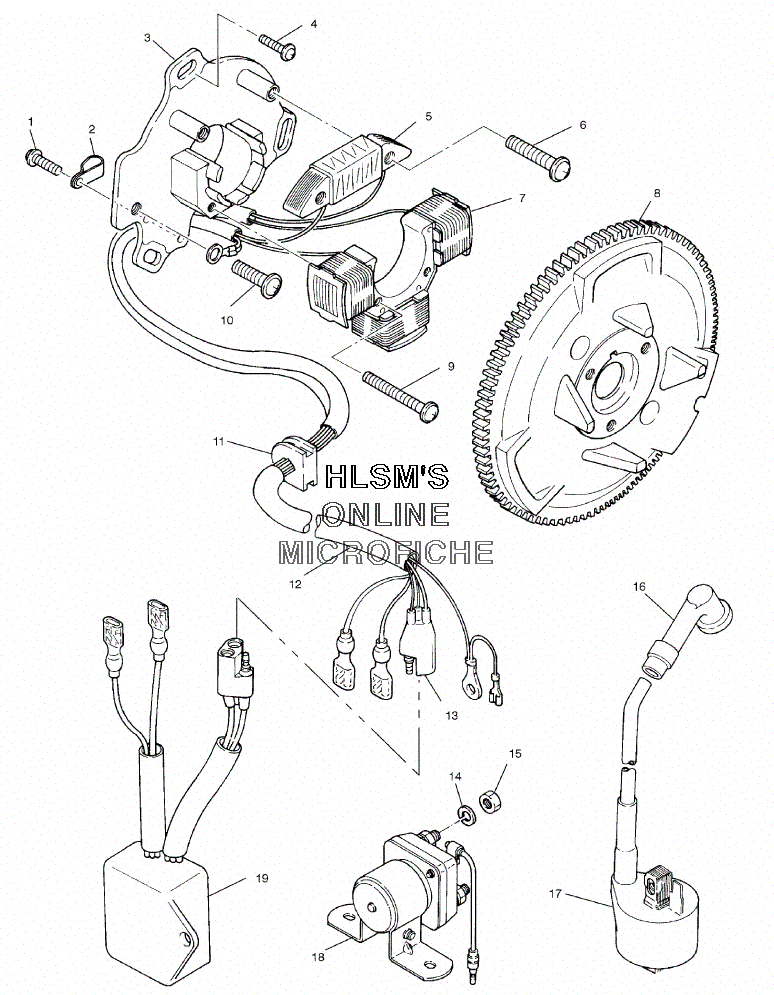

MAGNETO для Polaris TRAIL BLAZER 400 (A03BA38CA) - 2003 года выпуска
-
№АртикулНазвание
-
13081256 SCREW AND WASHER ASSY.SCREW AND WASHER ASSY.
-
23081146 CLAMPCLAMP
-
33084785 PLATE ASSY. (INCL. 1-3, 5-7, 9-13)PLATE ASSY. (INCL. 1-3, 5-7, 9-13)
-
33084786 PLATE, COILPLATE, COIL
-
43084766 SCREW, FLANGESCREW, FLANGE
-
53083422 COIL, EXCITINGCOIL, EXCITING
-
63083423 SCREW AND WASHERSCREW AND WASHER
-
73084788 PLATE ASSY.PLATE ASSY.
-
83084784 FLYHEEL, W/ RING GEARFLYHEEL, W/ RING GEAR
-
93081342 SCREW AND WASHER ASSY.SCREW AND WASHER ASSY.
-
103081260 SCREW AND WASHERSCREW AND WASHER
-
113084789 GROMMETGROMMET
-
123084787 HARNESS, WIREHARNESS, WIRE
-
133083909 COUPLERCOUPLER
-
143080077 WASHER SPRINGWASHER SPRING
-
153083073 NUTNUT
-
164020129 CAP SPARK PLUGCAP SPARK PLUG
-
173083923 COIL, IGNITIONCOIL, IGNITION
-
183085521 SWITCH, MAGNETICSWITCH, MAGNETIC
-
193084790 CDI SYSTEMCDI SYSTEM
