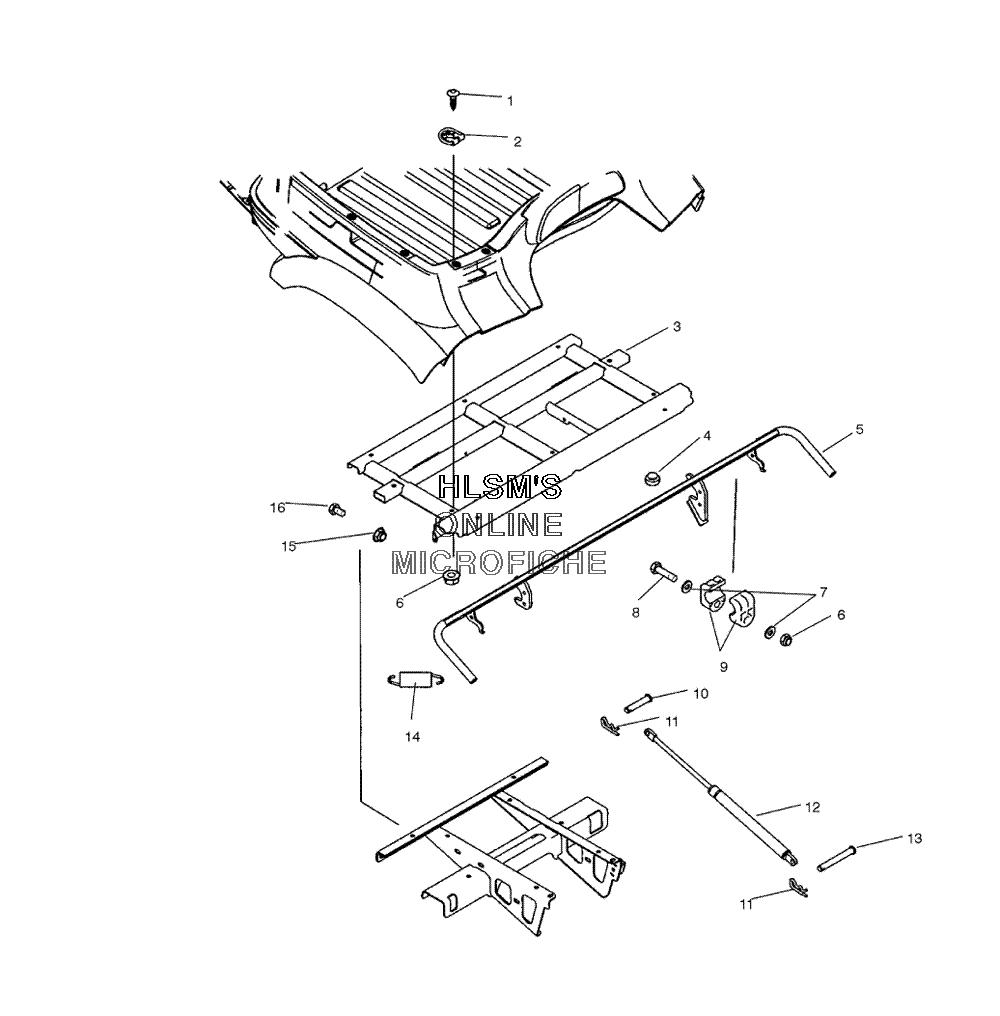

BOX FRAME для Polaris ATP 330 4X4 (A04JD32AA) - 2004 года выпуска
-
№АртикулНазвание
-
17518235 SCREWSCREW
-
27081101 RING TIE DOWNRING TIE DOWN
-
31014132-067 WELD BOX FRAME ATP KITWELD BOX FRAME ATP KIT
-
31014655-067 WELD BOX FRAME ATP KITWELD BOX FRAME ATP KIT
-
45412067 BUMPER RUBBERBUMPER RUBBER
-
51014146-067 WELD BOX LATCH (REAR/BLACK)WELD BOX LATCH (REAR/BLACK)
-
67542324 NUT NYLOKNUT NYLOK
-
77558402 WASHER FLATWASHER FLAT
-
87515319 BOLTBOLT
-
95434226 BUSHING BOX LATCHBUSHING BOX LATCH
-
107661106 PIN CLEVIS (IF BUILT BEFORE 9/02/03)PIN CLEVIS (IF BUILT BEFORE 9/02/03)
-
117661644 PIN HITCHPIN HITCH
-
127042268 SHOCK DUMP BOXSHOCK DUMP BOX
-
137661163 PIN CLEVIS (QTY. 2 IF BUILT AFTER 9/02/03)PIN CLEVIS (QTY. 2 IF BUILT AFTER 9/02/03)
-
147041687 SPRINGSPRING
-
157542449 NUT FLANGE LOCKNUT FLANGE LOCK
-
167512492 SCREWSCREW
