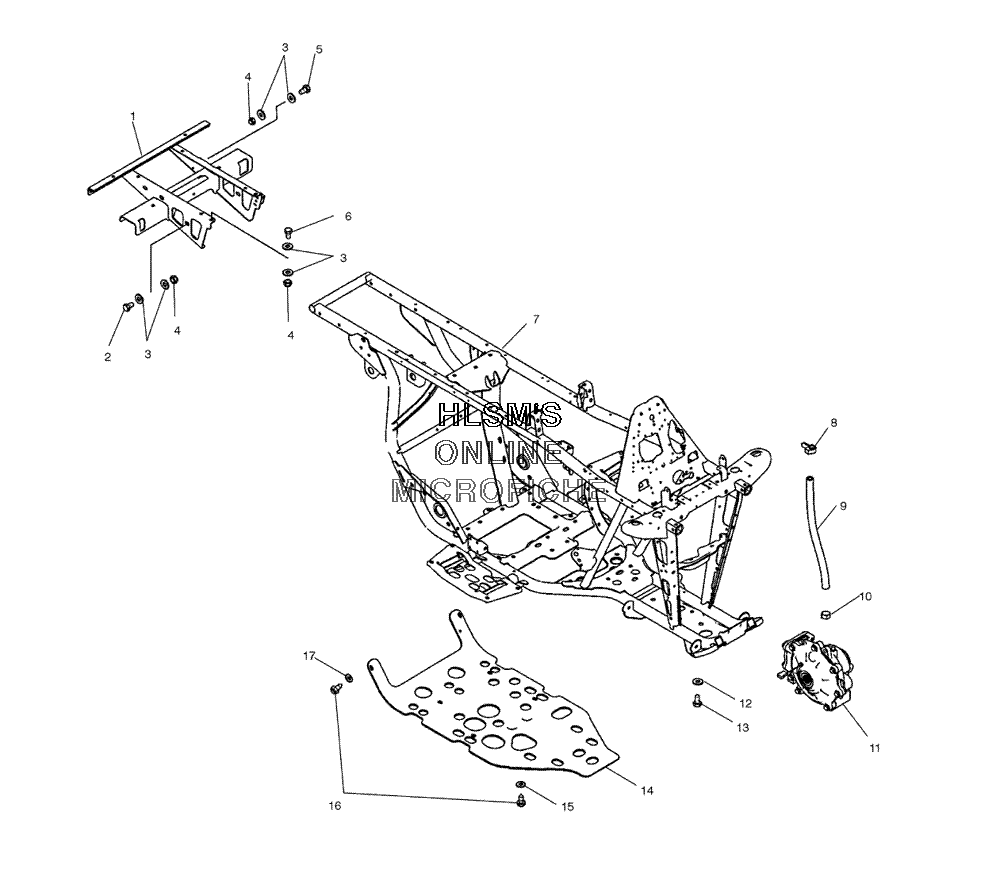

FRAME W/ EXTENTION для Polaris ATP 330 4X4 (A04JD32AA) - 2004 года выпуска
-
№АртикулНазвание
-
11013839-067 WELD FRAME EXTENSION (BLACK)WELD FRAME EXTENSION (BLACK)
-
27515317 BOLTBOLT
-
37555960 WASHER FLATWASHER FLAT
-
47542324 NUT NYLOKNUT NYLOK
-
57512329 BOLTBOLT
-
67515319 BOLTBOLT
-
71014293-067 WELD MAIN FRAME SRS (BLACK)WELD MAIN FRAME SRS (BLACK)
-
87670102 CLIPCLIP
-
98450003 LINE FUELLINE FUEL
-
107080307 CLAMP HOSECLAMP HOSE
-
111341344 GEARCASE BEARINGLESS ASSY (FRONT)GEARCASE BEARINGLESS ASSY (FRONT)
-
127552603 WASHER SPRING LOCKWASHER SPRING LOCK
-
137512492 SCREWSCREW
-
145435005 GUARD ROCKGUARD ROCK
-
157556065 WASHERWASHER
-
167517386 SCREWSCREW
-
177558301 WASHER, FLATWASHER, FLAT
