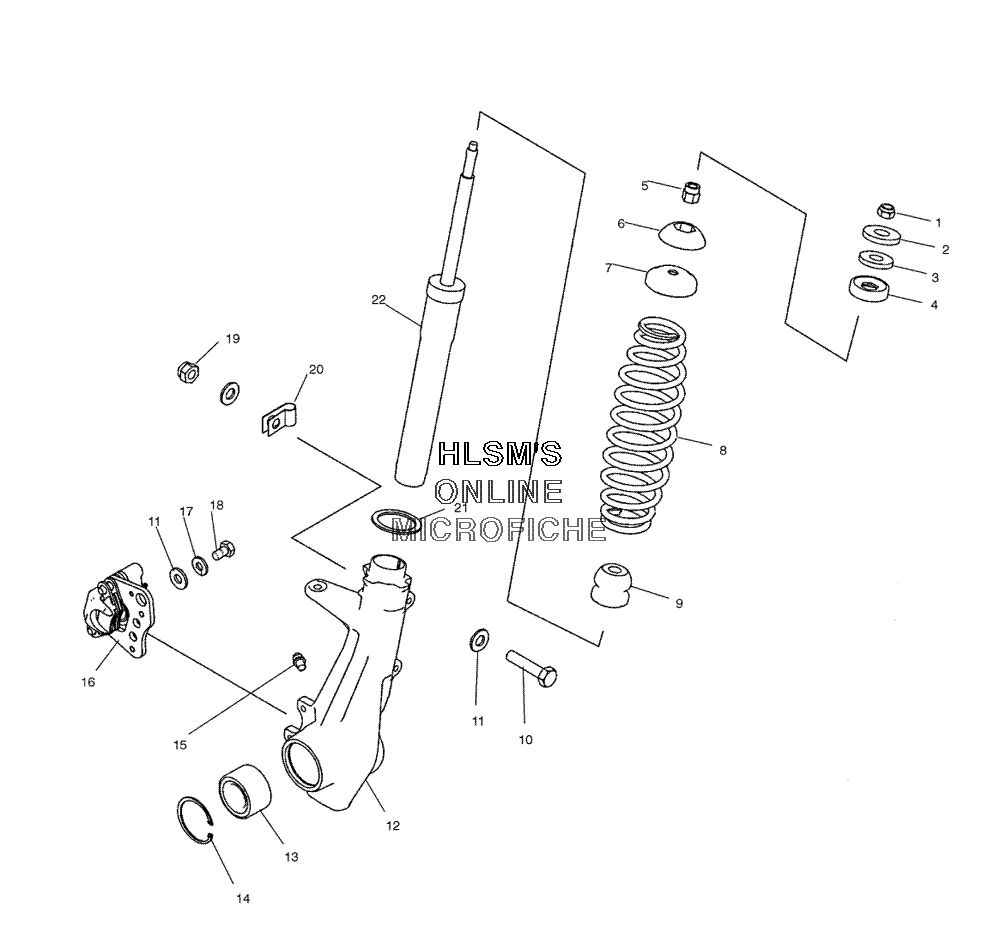

SUSPENSION - FRONT STRUT для Polaris ATP 330 4X4 (A04JD32AA) - 2004 года выпуска
-
№АртикулНазвание
-
17547104 NUTNUT
-
27555749 WASHERWASHER
-
35810291 SPACER RUBBERSPACER RUBBER
-
45432872 PIVOT BALL TOPPIVOT BALL TOP
-
55132062 SPACERSPACER
-
65432871 PIVOT BALL BOTTOMPIVOT BALL BOTTOM
-
75243364 RETAINER SPRINGRETAINER SPRING
-
87041375-385 SPRING COMP (SILVER) (IF BUILT BEFORE 10/01/03)SPRING COMP (SILVER) (IF BUILT BEFORE 10/01/03)
-
87042312-385 SPRING COMP (SILVER) (IF BUILT AFTER 10/01/03)SPRING COMP (SILVER) (IF BUILT AFTER 10/01/03)
-
95411608 BUMPERBUMPER
-
107515339 BOLTBOLT
-
117558402 WASHER FLATWASHER FLAT
-
125132301 HUBSTRUT ASSY (LEFT)HUBSTRUT ASSY (LEFT)
-
125132302 HUBSTRUT ASSY (RIGHT)HUBSTRUT ASSY (RIGHT)
-
133514342 BEARING AXLE TUBE HUBSTRUTBEARING AXLE TUBE HUBSTRUT
-
147710507 RING RET 2.500 INTERNALRING RET 2.500 INTERNAL
-
157080306 FITTING LUBE WITH BALL CHECKFITTING LUBE WITH BALL CHECK
-
177552901 WASHER SPRING LOCKWASHER SPRING LOCK
-
187512365 SCREW CAPSCREW CAP
-
197542324 NUT NYLOKNUT NYLOK
-
207080367 CLAMP CABLECLAMP CABLE
-
215211115 WASHERWASHER
-
227041761 STRUT (FRONT) (18X30MM, 153.8MM ST)STRUT (FRONT) (18X30MM, 153.8MM ST)
